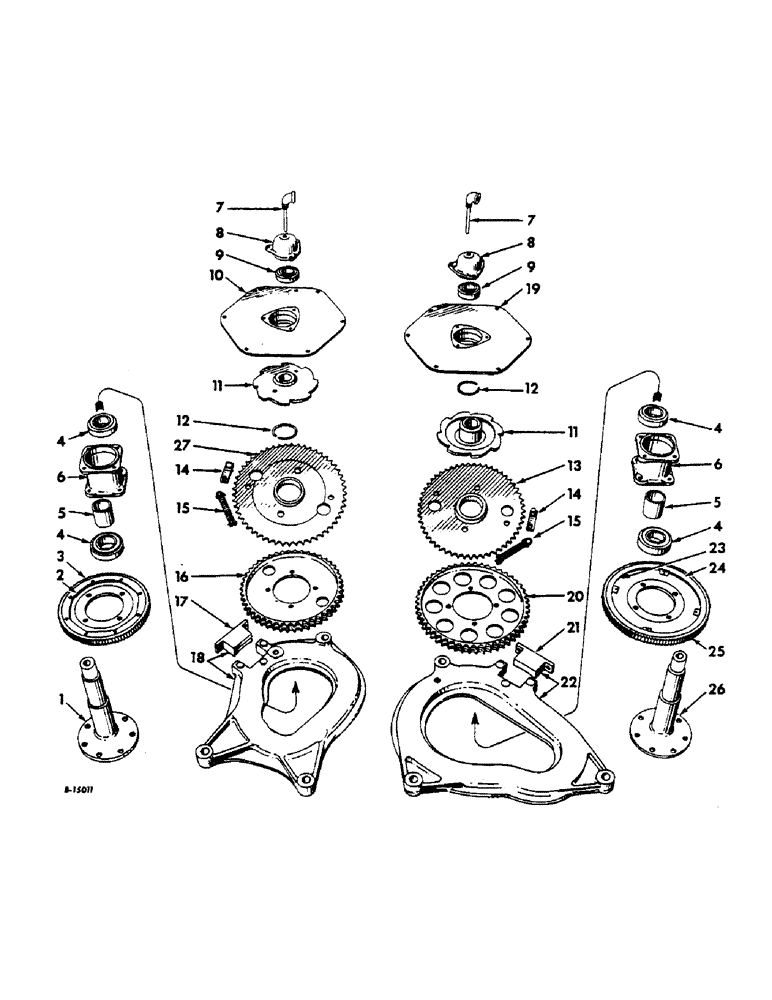

Запчасти Case IH 414 (111) - SPINDLE AND DRUM DRIVE (58) - ATTACHMENTS/HEADERS

1

660618R2

SHAFT, rear picker drum drive

1шт.

NUT, 1-1/8NF elastic stop

1шт.

SCREW, 3/8NF x 1-1/2 cap

6шт.

WASHER, 3/8 lock

6шт.

WASHER, 1-5/32 x 1-3/4 x 11 ga

2шт.

214441

NUT

3/8-24NF hex

6шт.

2

658130R1

FELT, rear spindle drive gear

1шт.

RIVET, 9/64 x 5/8 ov-hd

8шт.

3

660620R1

GEAR

rear spindle drive

1шт.

4

ST556

BALL BEARING,40 mm ID x 80 mm OD x 25.9842 mm

BEARING, drum drive shaft

4шт.

5

11694R

SPACER, drum drive shaft bearing

2шт.

6

72R

SLEEVE, spindle drive

2шт.

BOLT, 3/8 x 3/4 mach

16шт.

WASHER, 3/8 lock

16шт.

7

666203R91

TUBE

drum oiler

2шт.

8

659061R1

CAP, picker rotor support

2шт.

BOLT, 3/8 x 1 mach

6шт.

WASHER, 3/8 lock

6шт.

9

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, picker rotor support

2шт.

10

660627R1

SUPPORT, left rear picker rotor

1шт.

BOLT, 3/8 x 1 mach

6шт.

WASHER, 3/8 lock

6шт.

444818

PLUG,Hex Hd, 1/4"-18

1/4-18 auto hex-hd pipe

1шт.

11

660507R1

RATCHET

safety clutch

2шт.

WASHER, 2-9/32 x 3 x 14 ga

2шт.

12

660505R1

RING

SNAP RING, safety clutch

2шт.

13

660499R93

SPROCKET ASSY.

SPROCKET, drum drive front

1шт.

11693R

KEY

picker drum sprocket

1шт.

14

665022R92

BAR

PAWL, ratchet

4шт.

15

665025R11

SPRING

ASSY, drawbar

4шт.

16

668846R1

SPROCKET, rear spindle driven, 42T

1шт.

17

668844R1

PLUG, left rear picker cam, Units A and C

1шт.

17

668845R1

PLUG, right rear picker cam, Units B and D

1шт.

BOLT, 3/8 x 7/8 mach

2шт.

WASHER, 3/8 lock

2шт.

18

660641R21

CAM W/PLUG ASSY, left rear picker, Units A and C

1шт.

18

660642R21

CAM W/PLUG ASSY, right rear picker, Units B and D

1шт.

SCREW W/NUT, 5/8 x 11 cap

3шт.

WASHER, 5/8 lock

3шт.

19

1RA

SUPPORT, picker rotor

1шт.

BOLT, 3/8 x 1 mach

6шт.

WASHER, 3/8 lock

6шт.

20

660621R1

SPROCKET, front spindle driven

1шт.

21

668816R1

PLUG, left front picker cam, Units A and C

1шт.

21

668817R1

PLUG, right front picker cam, Units B and D

1шт.

BOLT, 3/8 x 7/8 mach

2шт.

WASHER, 3/8 lock

2шт.

22

668813R11

CAM W/PLUG ASSY, left front picker, Units A and C

1шт.

22

668814R11

CAM W/PLUG ASSY, right front picker, Units B and D

1шт.

SCREW W/NUT, 5/8 x 11 cap

3шт.

WASHER, 5/8 lock

3шт.

23

11697R

FELT, spindle drive gear

1шт.

24

11698R

RETAINER, spindle drive gear felt

1шт.

RIVET, 1/8 x 7/16 csk-hd

4шт.

25

11696R

GEAR

spindle drive

1шт.

26

660524R2

SHAFT, front picker drum drive

1шт.

NUT, 1-18NF hex lock

1шт.

SCREW W/NUT, 3/8NF x 1-1/2 cap

7шт.

WASHER, 3/8 lock

7шт.

WASHER, 1-5/32 x 1-3/4 x 11 ga

2шт.

27

661717R93

SPROCKET ASSY.

SPROCKET, drum drive rear

1шт.

11693R

KEY

picker drum sprocket

1шт.
