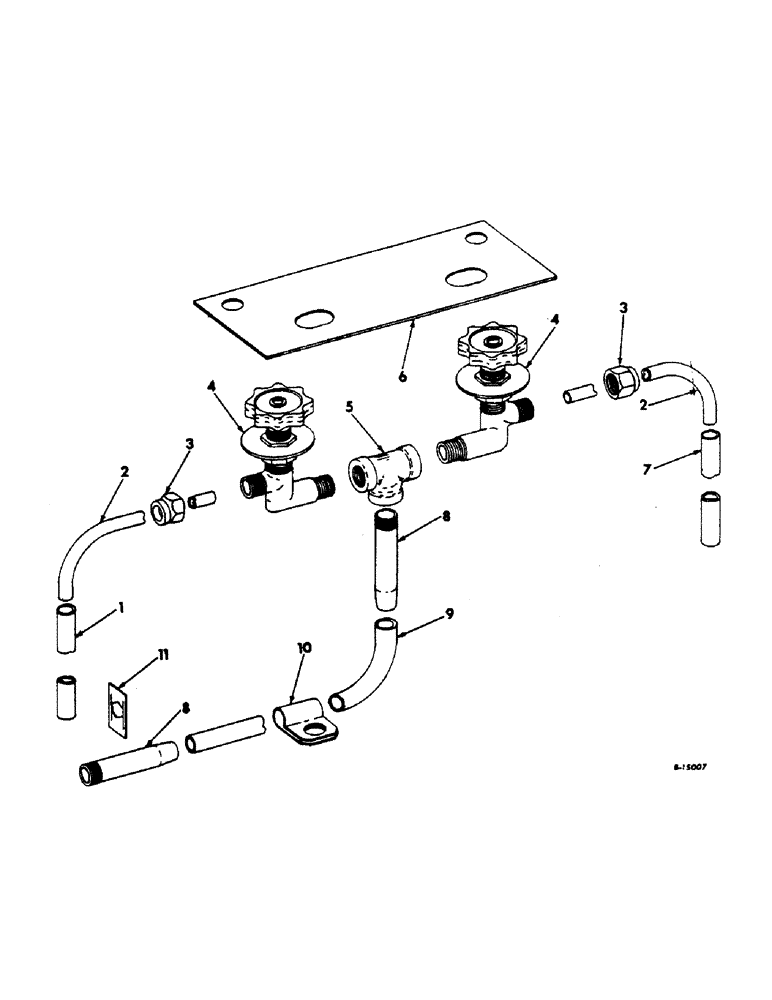

Запчасти Case IH 414 (110) - WATER LINES, IN DRUM (58) - ATTACHMENTS/HEADERS

1

HOSE, connector to stand water, Use 16 inches of 9/32 inch ID hose from 50 ft roll marked 665180R1

1шт.

2

660693R1

PIPE

water

2шт.

3

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/6 ball sleeve tube

2шт.

4

659204R91

VALVE

water metering

2шт.

5

217-10

TEE,1/8" - 27 NPTF Fem

1/8 water pipe

1шт.

6

667580R1

PLATE, water metering valve

1шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

7

HOSE, connector to stand water, Use 37 inches of 9/32 inch ID hose from 50 ft roll marked 665180R1

1шт.

8

665597R1

NIPPLE, water

2шт.

9

HOSE, nipple to connector water, Use 57 inches of 9/32 ID hose from 50 ft roll marked 665180R1

1шт.

10

140582

CLAMP

CLIP, hose

4шт.

11

660698R1

NUT

water pipe connection

2шт.
