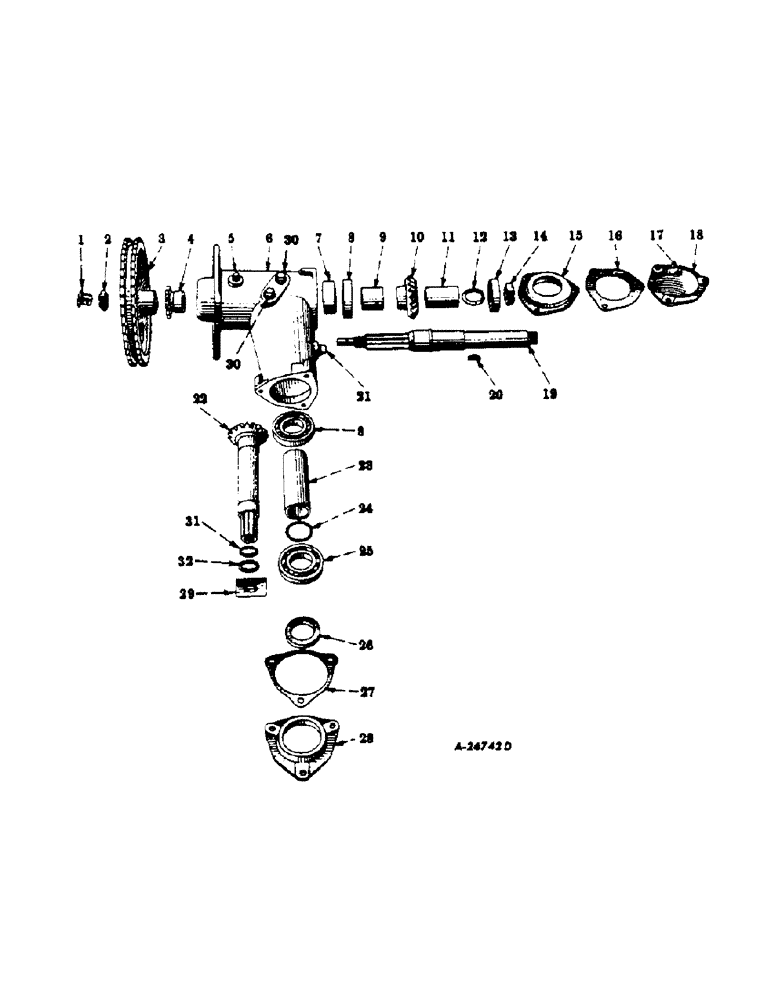

Запчасти Case IH 414 (105) - RIGHT PICKER DRUM DRIVE (58) - ATTACHMENTS/HEADERS

1

10169RA

SPROCKET ASSY.

SPROCKET, water distributor drive, Units B and D

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

1шт.

2

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8NF slt-hex jam, Units B and D

1шт.

3

662503R1

SPROCKET ASSY.

SPROCKET, spindle and doffer drive, Units B and D

1шт.

4

668847R1

SPROCKET ASSY.

SPROCKET, picker drum drive, Units B and D

1шт.

11926R

SHIM

sprocket

3шт.

5

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 automotive sq-hd pipe, Units B and D

1шт.

6

656140R1

HOUSING

picker drive, Units B and D

1шт.

SCREW, 1/2 x 1-1/4 cap

4шт.

WASHER, 1/2 lock

4шт.

7

659711R91

SEAL

OIL SEAL, picker drive sprocket shaft, Units B and D

1шт.

8

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, picker drive pinion and sprocket, 2 for units B and D

1шт.

9

656165R1

SPACER

lower picker drive vertical shaft gear, Units B and D

1шт.

10

656143R1

GEAR, picker drive, Units B and C

1шт.

11

656164R1

SPACER

upper picker drive vertical shaft gear, Units B and D

1шт.

12

10156R

SHIM

heavy picker drive gear, Units B and D

3шт.

12

10157R

SHIM

light picker drive gear, Units B and D

3шт.

13

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, upper picker drive sprocket shaft, Units B and D

1шт.

14

70121D

NUT

1NF slt-hex. jam, Units B and D

1шт.

15

14R

RETAINER

upper right bearing, Units B and D

1шт.

16

10164R

GASKET

bearing cap, Units B and D

1шт.

16

656630R1

GASKET

bearing retainer, Units B and D

1шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Units B and D 1/8"-27 x .66 lg

1шт.

18

15R

CAP

picker drive shaft bearing, Units B and D

1шт.

BOLT, 3/8 x 1-7/8 mach

3шт.

WASHER, 3/8 lock

3шт.

19

656144R2

SHAFT

picker drive sprocket, Units B and D

1шт.

PIN, 1/8 x 1-3/8 cotter

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

WASHER, 29/32 x 1-1/2 x 22 ga

1шт.

20

114735

KEY, no. 16 Woodruff, Units B and D

1шт.

21

10728P

PLUG

1/2 drilled pipe, Units B and D

1шт.

22

656142R2

SHAFT

picker drive pinion, Units B and D

1шт.

WASHER, 1-5/32 x 1-3/4 x 11 ga

1шт.

23

656163R1

SPACER

picker drive pinion, Units B and D

1шт.

24

656166R1

SHIM

heavy picker drive pinion, Units B and D

3шт.

24

656167R1

SHIM

light picker drive pinion, Units B and D

3шт.

25

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, pinion shaft, Units B and D

1шт.

26

938294R2

OIL SEAL, pinion shaft, Units B and D

1шт.

27

656168R1

GASKET

pinion shaft bearing retainer, Units B and D

1шт.

28

656141R1

RETAINER

picker drive pinion shaft bearing, Units B and D

1шт.

BOLT, 3/8 x 1 mach

3шт.

WASHER, 3/8 lock

3шт.

29

10176RA

WASHER

knuckle retainer, Units B and D

1шт.

SCREW, 5/8NF x 1-1/2 cap

1шт.

WASHER, 5/8 lock

1шт.

30

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe, Units B and D

2шт.

660703R1

FELT, spindle and doffer drive sprocker rivet, 9/64 x 5/8 ov-hd

6шт.

split

1шт.

31

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

gear box

2шт.

32

669017R1

GASKET

gear box

1шт.
