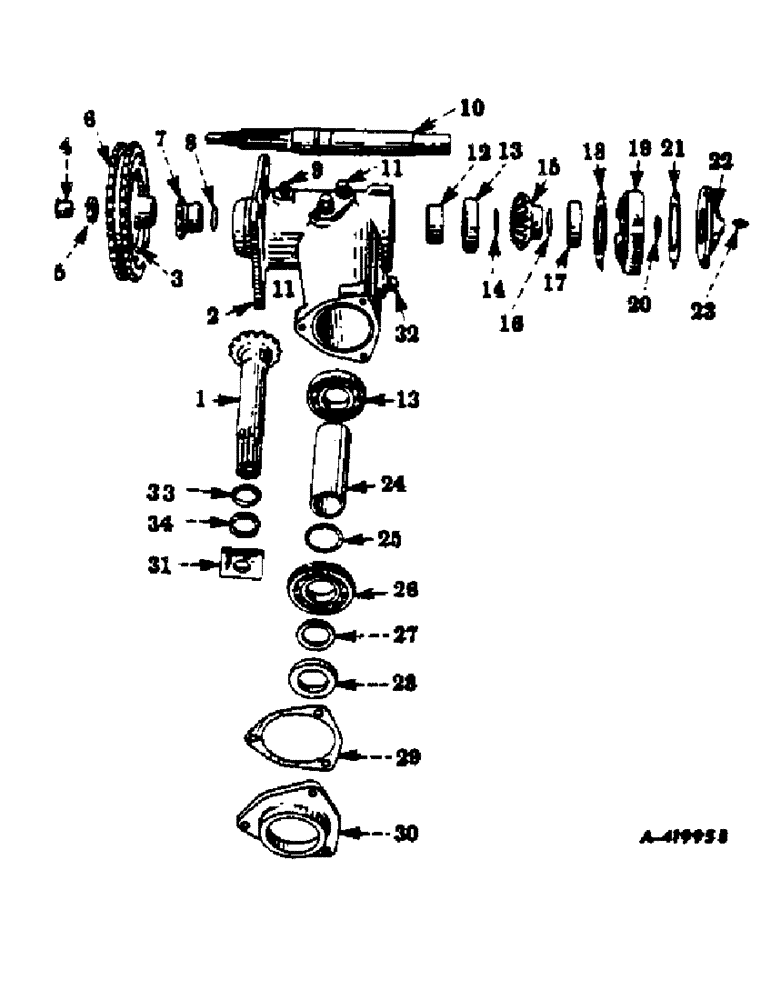

Запчасти Case IH 414 (104) - LEFT PICKER DRUM DRIVE (58) - ATTACHMENTS/HEADERS

1

656142R2

SHAFT

picker drive pinion, Units A and C

1шт.

2

656140R1

HOUSING

housing picker drive, Units A and C

1шт.

SCREW, 1/2 x 1-1/4 cap

4шт.

WASHER, 1/2 lock

4шт.

3

660703R1

FELT, spindle and doffer drive sprocket, Units A and C

1шт.

RIVET, 9/64 x 5/8 ov-hd split

6шт.

4

10169RA

SPROCKET ASSY.

SPROCKET, water distributor drive, Units A and C

1шт.

441012

PIN, 1/4 x 7/8 roll

1шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8NF slt-hex. jam, Units A and C

1шт.

6

662847R1

SPROCKET, spindle and doffer drive, Units A and C

1шт.

7

668847R1

SPROCKET ASSY.

SPROCKET, picker drum drive, Units A and C

1шт.

8

11926R1

SHIM, picker drum drive, Units A and C

1шт.

9

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 automotive sq-hd pipe, Units A and C

1шт.

10

660706R2

SHAFT

picker drive sprocket, Units A and C

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

SCREW, 1/2NF x 1-1/4 cap

1шт.

114735

KEY, no. 16 Woodruff

1шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

SCREW, 1/2NF x 1-1/4 cap

1шт.

WASHER, 1/2 lock

1шт.

551659R1

WASHER

29/32 x 1-1/2 x 22 ga

1шт.

11

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe, Units A and C

2шт.

12

659711R91

SEAL

OIL SEAL, picker drive sprocket shaft, Units A and C

1шт.

13

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, picker drive ball, Units A and C

2шт.

14

359141R1

RING, SNAP

SNAP RING, picker drive sprocket shaft, Units A and C

1шт.

15

656143R2

GEAR

picker drive, Units A and C

1шт.

16

10156R

SHIM

heavy picker drive gear, 3 for units A and C

1шт.

16

10157R

SHIM

light picker drive gear, 3 for units A and C, Units A and C

1шт.

17

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, upper picker drive sprocket shaft, Units A and C

1шт.

18

656630R1

GASKET

bearing retainer, Units A and C

1шт.

19

660704R1

RETAINER

left bearing, Units A and C

1шт.

20

18503D

RETAINER, picker drive sprocket shaft, Units A and C

1шт.

21

10164R

GASKET

bearing cap, Units A and C

1шт.

22

15R

CAP

picker drive shaft bearing, Units A and C

1шт.

BOLT, 3/8 x 1-7/8 mach

3шт.

WASHER, 3/8 lock

3шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Units A and C 1/8"-27 x .66 lg

2шт.

24

656163R1

SPACER

picker drive pinion, Units A and C

1шт.

25

656166R1

SHIM

heavy picker drive pinion, Units A and C

3шт.

25

656167R1

SHIM

light picker drive pinion, Units A and C

3шт.

26

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, pinion shaft, Units A and C

1шт.

27

478258R1

WASHER

picker drive pinion shaft, Units A and C

1шт.

28

938294R1

OIL SEAL, pinion shaft, Units A and C

1шт.

29

656168R2

GASKET, pinion shaft bearing retainer, Units A and C

1шт.

30

656141R2

RETAINER, picker drive pinion shaft bearing, Units A and C

1шт.

BOLT, 3/8 x 1 mach

3шт.

WASHER, 3/8 lock

3шт.

31

10176RA

WASHER

knuckle retainer, Units A and C

1шт.

SCREW, 5/8NF x 1-1/2 cap

1шт.

WASHER, 5/8 lock

1шт.

32

10728P

PLUG

1/2 dld sq-hd pipe, Units A and C

1шт.

33

350429R2

O-RING GEAR BOX

2шт.

34

669017R1

GASKET

gear box

1шт.
