Запчасти Case IH 414 (381) - ELECTRICAL SYSTEM, ALTERNATOR-GENERATOR MOUNTING BRACKET, 416, CH1696 & ABOVE, 422, CH3167 & ABOVE (55) - ELECTRICAL SYSTEMS

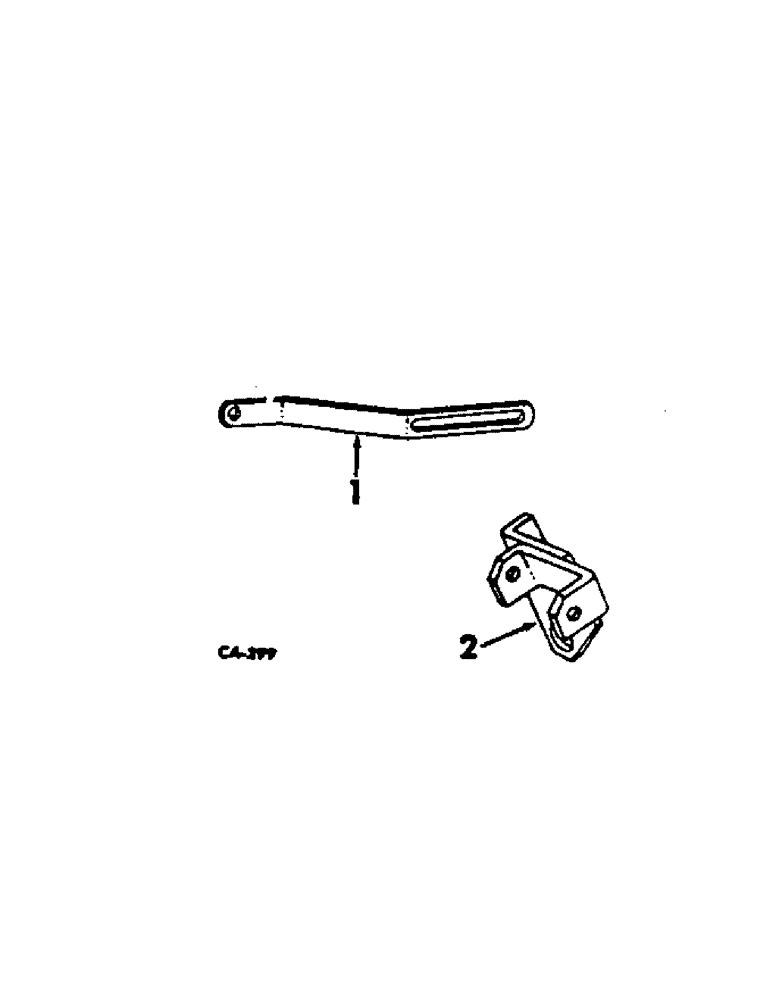

Схема запчастей Case IH 414 - (381) - ELECTRICAL SYSTEM, ALTERNATOR-GENERATOR MOUNTING BRACKET, 416, CH1696 & ABOVE, 422, CH3167 & ABOVE (55) - ELECTRICAL SYSTEMS
2
1

Артикул

Название

Примечание

Количество

1

379987R1

SUPPORT

BRACE, alternator-generator adjusting

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

557265R1

WASHER

11/32 x 1 x .105

1шт.

2

393774R22

BRACKET

ASSY, alternator mounting

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 znd

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

Выбрано товаров: 14
