Запчасти Case IH 414 (380[1]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, CH813F TO CH1568G, 420, CH1372F AND CH2820G (55) - ELECTRICAL SYSTEMS

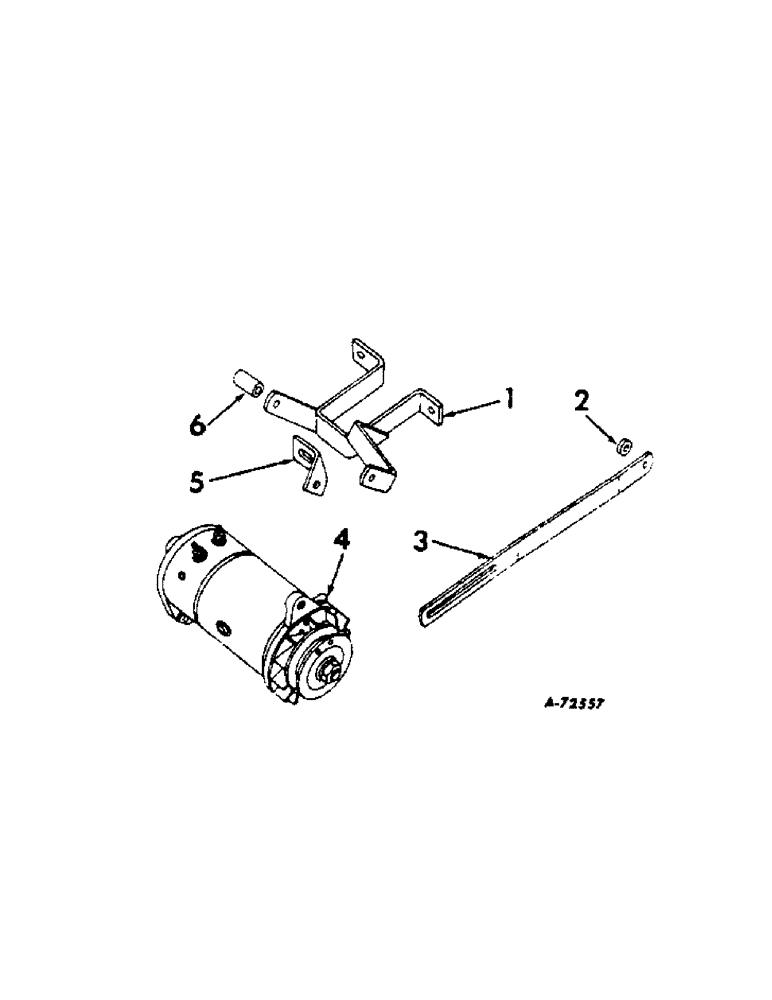

Схема запчастей Case IH 414 - (380[1]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, CH813F TO CH1568G, 420, CH1372F AND CH2820G (55) - ELECTRICAL SYSTEMS
6
4
1
5
3
2

Артикул

Название

Примечание

Количество

1

379982R91

BRACKET ASSY, generator

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

280185R1

SPACER

generator brace

1шт.

3

379987R1

SUPPORT

BRACE, generator

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

1100394

GENERATOR ASSY, 20 amp, 369599R92, Order 1100401, For components see list of parts under details of generator, 414CH813F to CH1119F, Serial Range: 420CH1372F-CH2059F

1шт.

4

1102191

GENERATOR ASSY, 30 amp, less pulley, 227120R91, Order 1102210, For components see list of parts under details of generator

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

SCREW, 5/16 x 3/4 cap

1шт.

SCREW, 5/16 x 1-1/8 cap, 20 amp. generator

1шт.

SCREW, 5/16 x 2-1/4 cap, 30 amp. generator

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1943516

PULLEY

ASSY, generator, 30 amp, generator, 310539R91

1шт.

5

379986R1

BRACKET, generator stiffener

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

U13039

SPACER

generator, 30 amp. generator

1шт.

Выбрано товаров: 20
