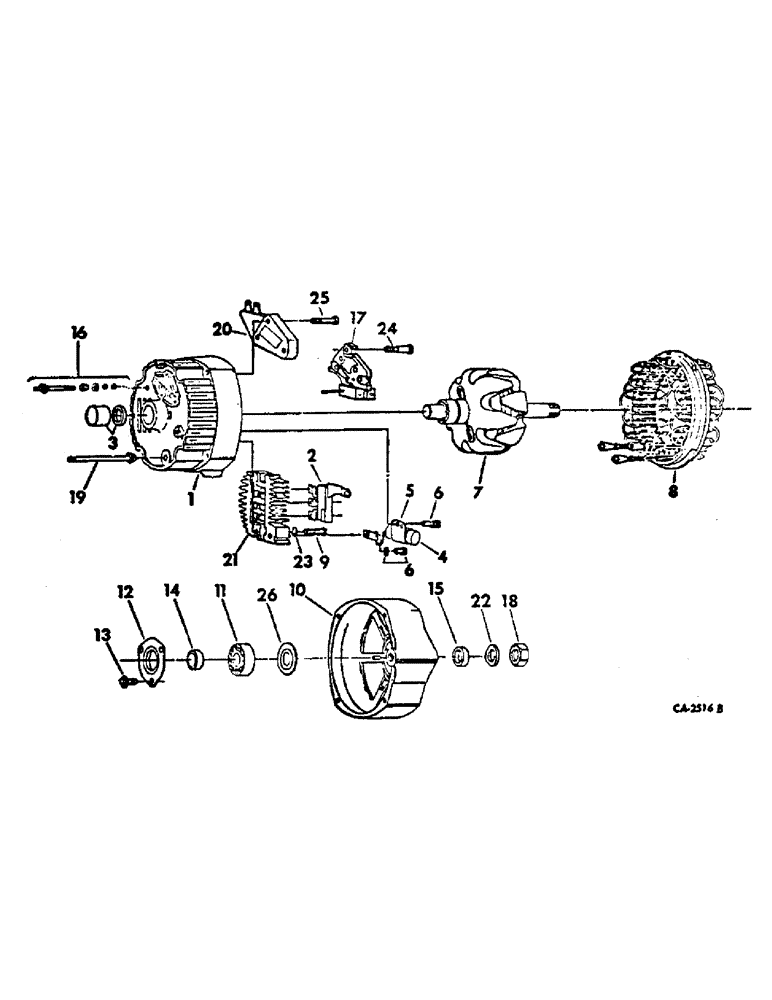

Запчасти Case IH 414 (379) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO-REMY, 416, CH1696 AND ABOVE, 422, CH3167 AND ABOVE (55) - ELECTRICAL SYSTEMS

1100593

ALTERNATOR GENERATOR ASSY, 37 ampere, 12 volt, 539323R91, Order 1100583

1шт.

1100583

GENERATOR

ALTERNATOR GENERATOR ASSY, 42 ampere, 12 volt

1шт.

225-14112

NUT,#12-24

12-24 znd hex. mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

1

1852101

FRAME

slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

slip ring end

1шт.

4

801824

CAPACITOR

1шт.

5

1869573

BRACKET

capacitor attaching

1шт.

6

1851612

SCREW

capacitor bracket

2шт.

7

1846657

ROTOR

ASSY

1шт.

8

1971986

STATOR

ASSY

1шт.

9

1970145

SCREW

rectifier bridge attaching

1шт.

10

1970525

FUNNEL

FRAME, drive end

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

drive end ball

1шт.

12

1971993

PLATE

drive end ball bearing retainer

1шт.

13

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

retainer plate attaching

3шт.

14

1963139

COLLAR CLAMP

COLLAR, inside drive end

1шт.

15

1959991

COLLAR

outside drive end

1шт.

16

1846900

PACKAGE

TERMINAL PACKAGE, battery

1шт.

17

1876873

HOLDER

BRUSH HOLDER & BRUSH ASSY

1шт.

18

1915172

NUT

drive end shaft

1шт.

19

1956975

BOLT

BOLT, thru

4шт.

20

1116387

VOLTAGE REGULATOR

REGULATOR, voltage, solid state

1шт.

21

1875627

HOLDER

BRIDGE, positive rectifier

1шт.

22

1941978

WASHER

drive end shaft nut lock

1шт.

23

1847933

WASHER

rectifier bridge nut spring screw spring

3шт.

24

1846864

SCREW

insulated brush holder

2шт.

25

1971519

SCREW

ground brush holder

1шт.

26

800832

WASHER

drive end grease slinger

1шт.

221425R1

FAN

alternator, generator, Not included in the alternator generator assy

1шт.

1961291

PULLEY

alternator generator drive, Not included in the alternator generator assy

1шт.
