Запчасти Case IH 414 (378) - ELECTRICAL SYS., GENERATOR, 12V, 30 AMP, DELCO-REMY, 414, CH813F - CH1568G, 420, CH1372F - CH2820G (55) - ELECTRICAL SYSTEMS

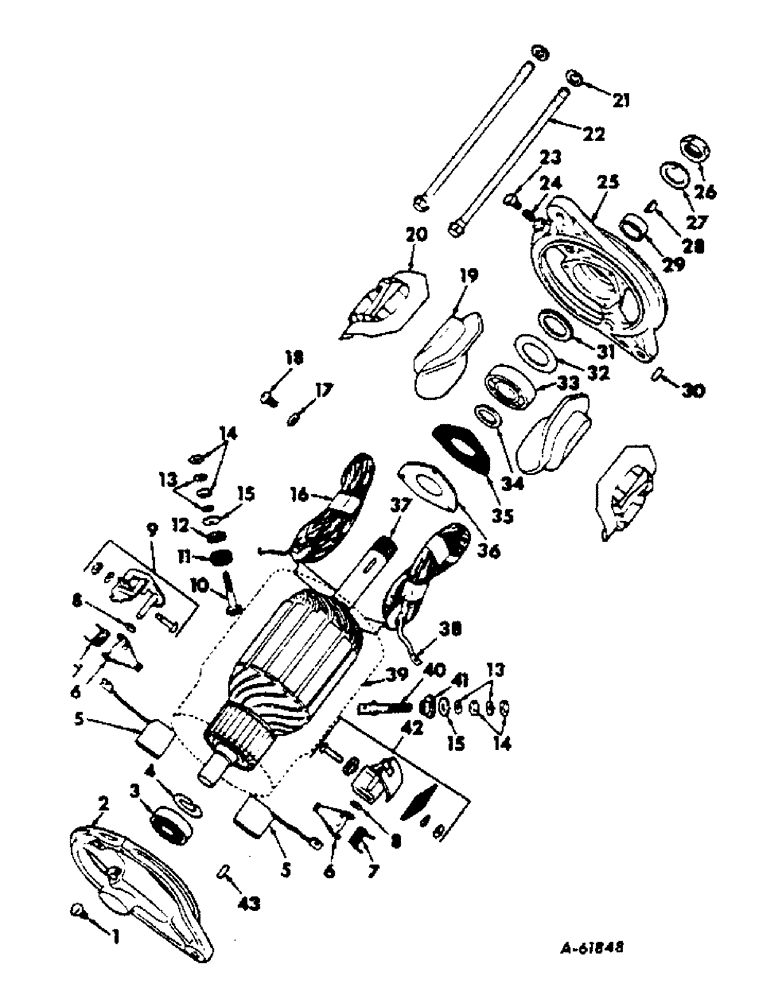

Схема запчастей Case IH 414 - (378) - ELECTRICAL SYS., GENERATOR, 12V, 30 AMP, DELCO-REMY, 414, CH813F - CH1568G, 420, CH1372F - CH2820G (55) - ELECTRICAL SYSTEMS
14
7
5
19
15
12
13
23
22
2
24
38
5
7
42
27
37
33
4
39
28
40
31
8
32
36
6
11
26
1
29
20
6
9
15
14
8
18
3
41
35
43
16
25
30
34
10
13
17
21

Артикул

Название

Примечание

Количество

1102191

GENERATOR ASSY, 227120R91, Order 1102210

1шт.

1102210

GENERATOR

ASSY, 12 volt

1шт.

1

125609

OILER

commutator end

1шт.

2

1953880

COVER ASSY

FRAME, commutator end

1шт.

3

904751

BEARING

commutator end ball

1шт.

4

1929959

RING, SNAP

RING, commutator end bearing

1шт.

5

1923295

BRUSH

2шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4 rd-hd

1шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

1/4 lock

1шт.

6

1944473

ARM, brush

2шт.

7

1916324

VALVE SPRING

SPRING, brush

2шт.

8

1857412

WASHER, space

2шт.

9

1925378

NOZZLE HOLDER

HOLDER, ground brush

1шт.

10

1858749

PLUG

STUD, F terminal

1шт.

11

1885090

BUSHING

F terminal insulating

1шт.

12

1858753

WASHER

F terminal insulating

1шт.

13

1904661

LOCK WASHER

WASHER, terminal stud lock

4шт.

14

103089

terminal stud

4шт.

15

1881409

WASHER

stud

2шт.

16

1936388

COIL

field

1шт.

17

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

114351

SCREW, 1/4 x 3/8 slt-fil-hd mach Slotted Fil Hd, 1/4"-20 x 3/8"

1шт.

19

1931258

SHOE, pole

2шт.

1968396

SCREW

pole shoe

2шт.

20

1912073

PLATE ASSY.

INSULATOR, field coil

1шт.

21

120638

LOCK WASHER

WASHER, 5/16 heavy lock

2шт.

22

809763

BOLT

thru

2шт.

23

125609

OILER

drive end

1шт.

24

NOT USED IN THIS APPLICATION

1шт.

25

1953882

COVER ASSY

FRAME, drive end

1шт.

26

1915172

NUT

drive end

1шт.

27

1888439

WASHER

drive end nut lock

1шт.

28

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

29

1858603

BUSHING

COLLAR, spacing

1шт.

30

809593

PIN

drive end dowel

1шт.

31

809961

FELT

WASHER, drive end felt

1шт.

32

819104

WASHER

PLATE, drive end felt retainer

1шт.

33

954378

BALL BEARING

drive end

1шт.

34

809945

BUSHING

WASHER, drive end inner spacer

1шт.

35

1912008

FELT

GASKET, bearing retainer

1шт.

36

1911263

LARGE PLATE

PLATE, drive and bearing retainer

1шт.

1914580

SCREW

retainer plate

3шт.

37

1946931

ARMATURE

1шт.

38

200006

SPARE PART

CLIP, Serial Range: terminal-brush

1шт.

39

NOT SERVICED SEPARATELY

1шт.

40

1923284

STUD

A terminal

1шт.

41

1921362

BUSHING

terminal stud insulator

1шт.

42

1925379

NOZZLE HOLDER

HOLDER, brush insulated

1шт.

43

112005

PIN, commutator end dowel

1шт.

1943516

PULLEY

FAN AND PULLEY ASSY, generator

1шт.

Выбрано товаров: 50
