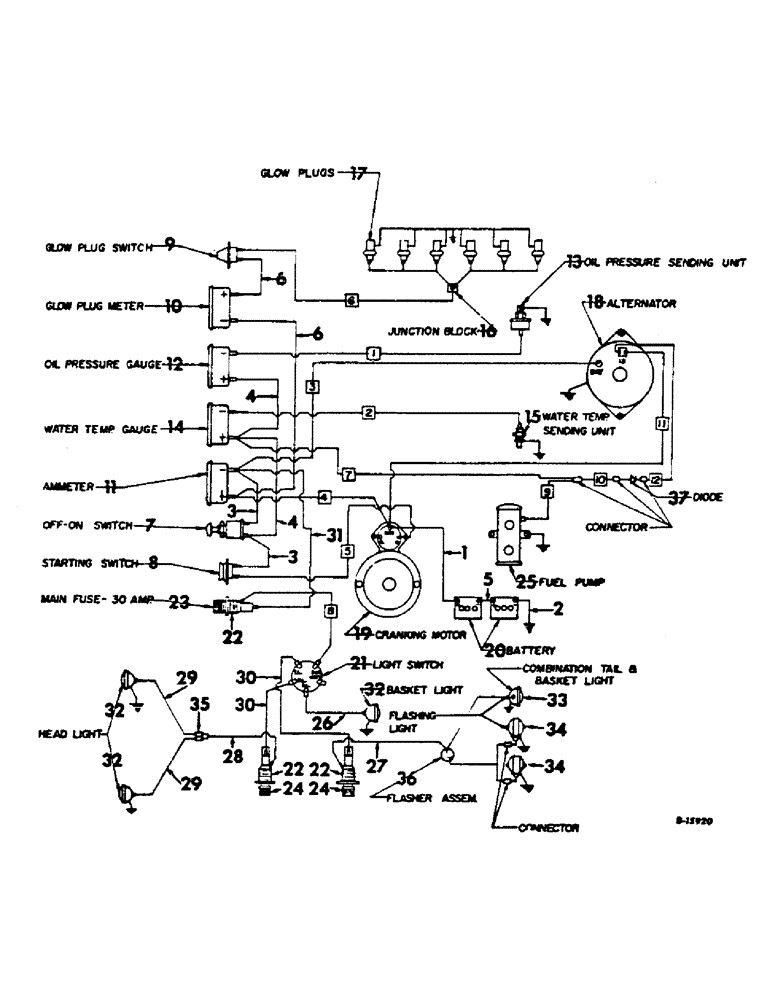

Запчасти Case IH 414 (367) - ELECTRICAL SYSTEM, DIESEL, WIRING DIAGRAM, 416, CH1696 AND ABOVE, 422, CH3167 AND ABOVE (55) - ELECTRICAL SYSTEMS

1

374907R91

CABLE

battery positive to solenoid switch

1шт.

2

57026R91

CABLE

STRAP, battery, Serial Range: negative-ground

1шт.

3

662548R91

CABLE, ignition switch to charge indicator

2шт.

4

662550R91

CABLE, ignition switch to oil pressure indicator

2шт.

5

370394R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

6

665486R1

CABLE, glow plug, Serial Range: switch-meter

2шт.

7

366317R93

SWITCH

ASSY, starting push button

1шт.

7

366317R93GV

CONTROL

Value, Control Switch

1шт.

8

62801DC

SWITCH

ignition

1шт.

9

109214H1

SWITCH

glow plug

1шт.

10

378352R91

METER

ASSY, glow plug

1шт.

11

536229R1

INDICATOR

charge w/clamp, Steward-Warner

1шт.

11

537485R1

GAUGE

INDICATOR, charge w/clamp, Thomas Faria Corp

1шт.

12

665013R91

GAUGE

INDICATOR, oil pressure

1шт.

13

665014R91

SENDER UNIT

GAUGE, oil pressure

1шт.

14

665015R91

GAUGE

INDICATOR, temperature

1шт.

15

665016R91

TEMPERATURE SENDER

UNIT, temperature

1шт.

16

42915D

BLOCK

glow plug junction

1шт.

17

304131R3

GLOW PLUG

PLUG, glow

6шт.

18

1100583

GENERATOR

ALTERNATOR GENERATOR ASSY, For components see list of parts under details of alternator generator

1шт.

19

1113193

MOTOR HOUSING

MOTOR ASSY, cranking, For components see list of parts under details of cranking motor

1шт.

20

391546R91

BATTERY, Prestolite 1258X, 6 volt

2шт.

21

390748R92

IGNITION SWITCH

SWITCH ASSY, light

1шт.

22

376852R91

HOUSING

ASSY, fuse

3шт.

23

223-31

FUSE,10 Amp, Type 3AG

S, 30 amp.

1шт.

24

117142

FUSE,10 Amp, Type 3AG

S, 10 amp.

2шт.

25

306274R91

PUMP

ASSY, electric fuel, For components see list of parts under details of electric fuel pump

1шт.

26

202462C1

CABLE, basket light

1шт.

27

202652C1

CABLE ASSY, switch to tail and flasher light

1шт.

28

202463C1

CABLE, Serial Range: switch-junction

1шт.

29

202233C1

CABLE ASSY, switch to head lights

2шт.

30

673456R1

CABLE, ignition jumper

2шт.

31

673455R1

CABLE, ignition jumper

1шт.

32

373573R91

LAMP

LIGHT, head basket and pivot

3шт.

33

373306R92

LIGHT

ASSY, combination rear and tail, For components see list of parts under details of lighting

1шт.

34

67291C92

LIGHT ASSY, flashing warning, only serviceable item is lamp, 9417866

2шт.

35

152048H

CONNECTOR, Y type junction

1шт.

36

394132R91

FLASHER UNIT

FLASHER ASSY, warning light

1шт.

37

548239R2

RECTIFIER

DIODE

1шт.

203087C1

HARNESS ASSY, main, diesel, color codes as follows, 1 - gray, 2 - pink, 3 - black, 4 - red, 5 - orange, 6 - blue, 7 - green, 8 - brown, 9 - green w/black tr.

1шт.

58949C1

HARNESS ASSY, diesel engine, color codes as follows, 10 - green w/black tr., 11 - red, 12 - yellow

1шт.
