Запчасти Case IH 414 (310) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR MOUNTING, 416, CH1696 AND ABOVE, 422, CH3167 AND ABOVE (55) - ELECTRICAL SYSTEMS

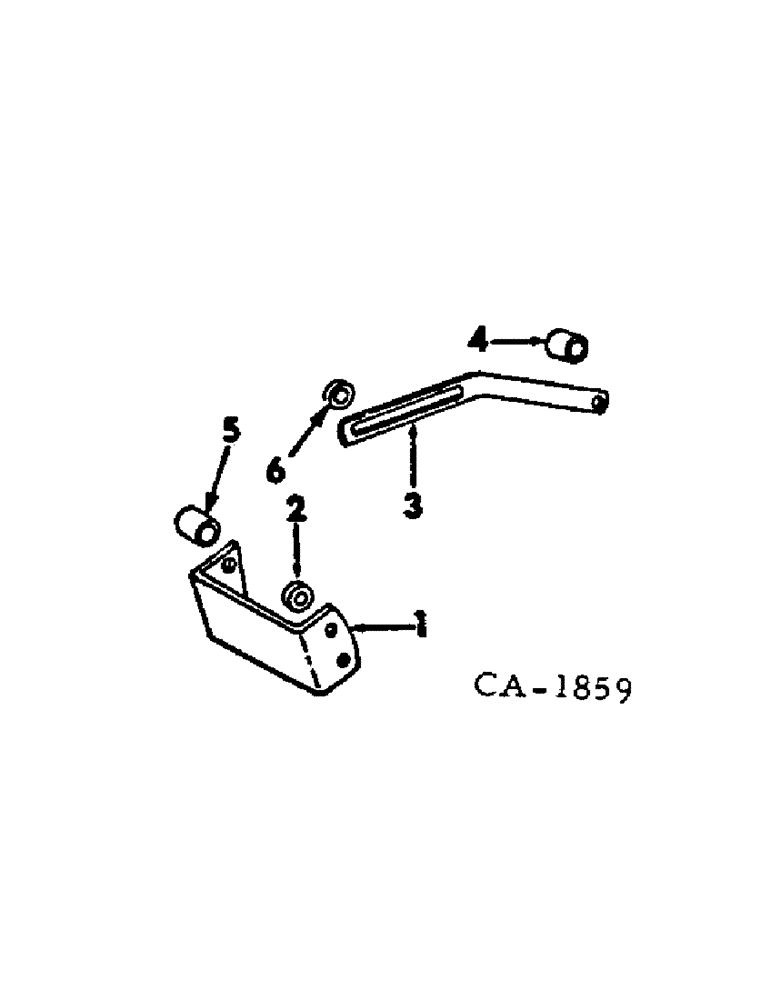

Схема запчастей Case IH 414 - (310) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR MOUNTING, 416, CH1696 AND ABOVE, 422, CH3167 AND ABOVE (55) - ELECTRICAL SYSTEMS
5
2
4
3
1
6

Артикул

Название

Примечание

Количество

1

384991R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

384992R1

SPACER

alternator generator mounting

1шт.

3

384997R1

BRACE

alternator generator

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557265R1

WASHER

11/32 x 1 x .105

1шт.

583956R1

BOLT, 7/16-14 x 2 CDP hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

generator brace

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/-16 x 3-1/2 hex-hd cap

1шт.

259207R1

WASHER

flat

1шт.

5

384993R1

SPACER

alternator generator mounting

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

Выбрано товаров: 18
