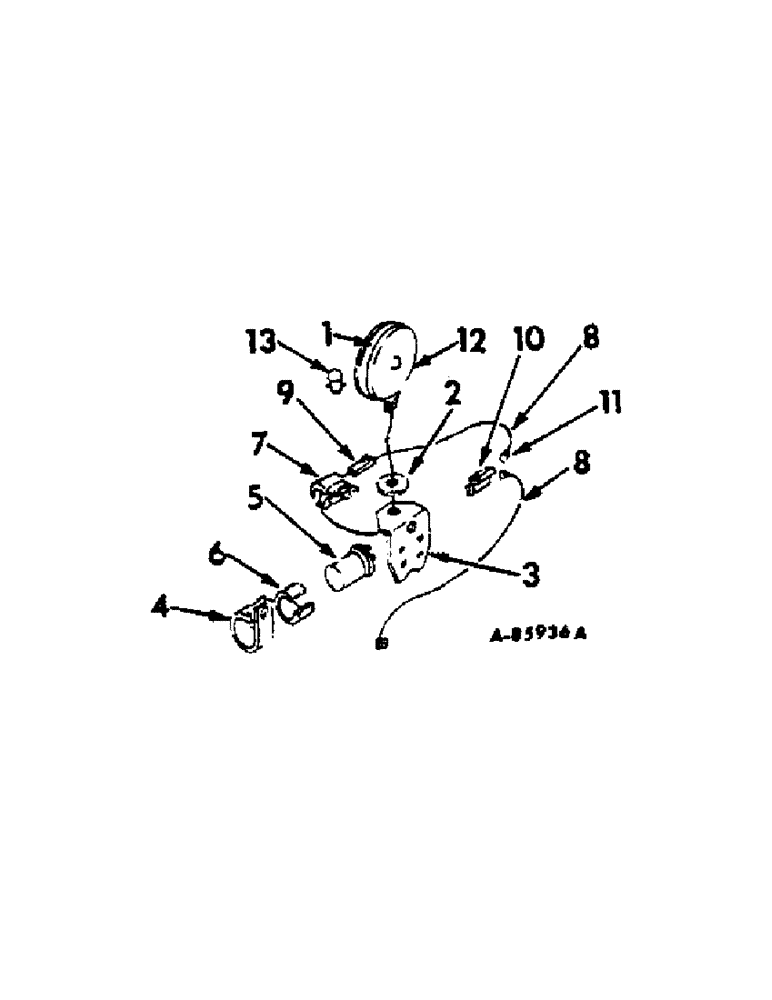

Запчасти Case IH 414 (310[1]) - ELECTRICAL SYSTEM, FLASHING WARNING LIGHT (55) - ELECTRICAL SYSTEMS

394714R91

PARTS ACCESSORY, flasher warning light, For cotton pickers not equipped with electric lights also order fuse housing 376852R91, fuse, 120151 and lighting switch, 394771R91

1шт.

1

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, Replaces 394129R91, only serviceable item is lamp, 9417866

1шт.

2

394262R1

WASHER

flashing warning light

1шт.

120371

NUT,1/2"-20, G5

1шт.

3

394330R1

BRACKET, flashing light

1шт.

4

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

SCREW, 1/4 x 3/4 cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

446179

WASHER,#12

1/4 C-Z plain

1шт.

5

394132R91

FLASHER UNIT

FLASHER ASSY, warning light

1шт.

6

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

7

358986R1

CABLE CLIP

CLIP, flasher light

1шт.

8

995056R1

CABLE

14-gauge, yellow, Order length in increments of one foot as required, Note

1шт.

9

376749R1

BODY

connector, Note

1шт.

10

899167R1

CONNECTOR, ELEC

CONNECTOR, single male, Note

2шт.

11

879552R1

TERMINAL STRIP

TERMINAL, Note

3шт.

12

899280R1

LENS

warning light, amber, Used only w/light, 394129R91

1шт.

12

899279R1

LENS

warning light, red, Used only w/light, 394129R91

1шт.

13

9417866

BULB,C6, #1156, 12.8V

LAMP, no. 1156, 12 volt

1шт.
