(309) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, UP TO S/N CH812E, 420, UP TO S/N CH1371E

Запчасти Case IH 414 (309) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, UP TO S/N CH812E, 420, UP TO S/N CH1371E (55) - ELECTRICAL SYSTEMS

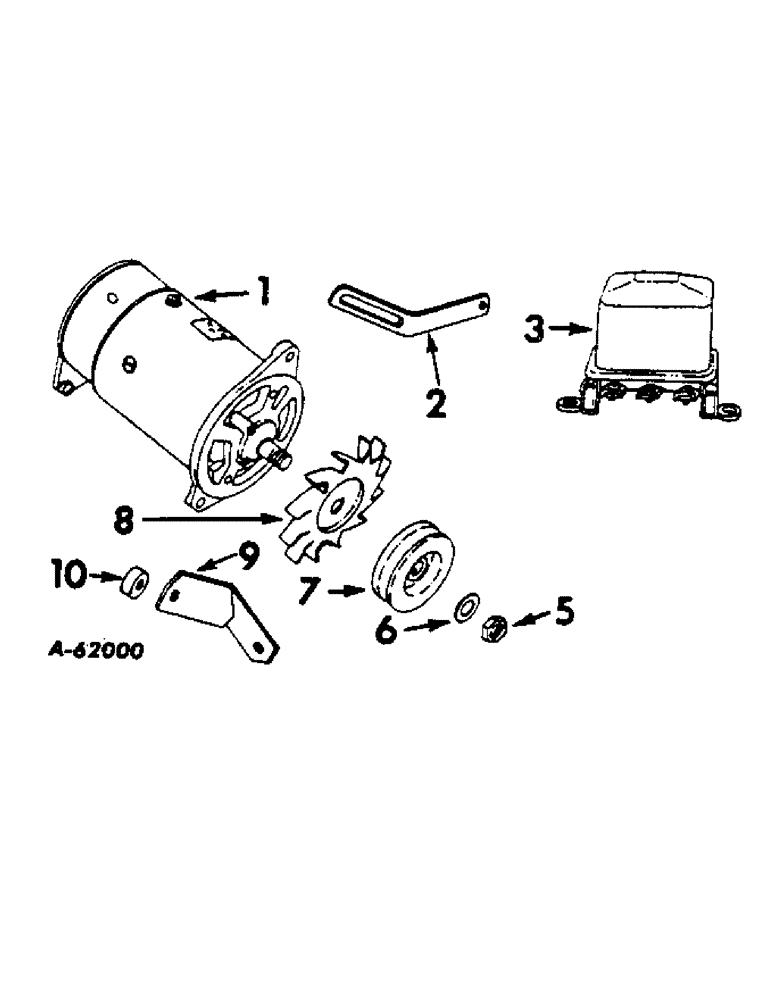

Схема запчастей Case IH 414 - (309) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, UP TO S/N CH812E, 420, UP TO S/N CH1371E (55) - ELECTRICAL SYSTEMS
2
3
5
9
10
1
6
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1102188

GENERATOR ASSY, heavy duty, 30 amp, 310660R91, Order 1102329, For components see list of parts under details of generator

1шт.

1

1100538

GENERATOR ASSY, 20 amp, 305481R91, For components see list of parts under details of generator

1шт.

NUT, 5/16NF

1шт.

SCREW, 5/16 x 1-1/8 cap

1шт.

SCREW, 5/16NF x 2-1/4 cap

1шт.

WASHER, 5/16 lock

2шт.

280185R1

SPACER

WASHER, 11/32 x 7/8

1шт.

2

312514R1

BRACE, generator

1шт.

SCREW, 5/16 x 7/8 cap

1шт.

WASHER, 5/16 lock

1шт.

SCREW, 7/16 x 1-1/8 cap

1шт.

WASHER, 11/32 x 7/8

1шт.

280185R1

SPACER

WASHER, 11/32 x 7/8

1шт.

3

1118999

REGULATOR

REGULATOR ASSY, voltage, 376122R91

1шт.

NUT, 1/4

2шт.

SCREW, 1/4 x 1/2 cap

1шт.

SCREW, 1/4 x 3/4 cap

1шт.

WASHER, 1/4 lock

1шт.

WASHER, 11/32 x 7/8

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

1915172

NUT

drive pulley

1шт.

6

1888439

WASHER

drive pulley lock

1шт.

7

304446R1

PULLEY, generator

1шт.

8

1944437

FAN

generator, 216489R1

1шт.

9

316326R1

BRACKET, generator rear mounting

1шт.

NUT, 5/16

1шт.

SCREW, 5/16 x 1 cap

1шт.

SCREW, 5/16 x 1-1/2 cap

1шт.

WASHER, 5/16 lock

2шт.

10

316327R1

SPACER, generator bracket, Used with 20 amp generator

1шт.
