Запчасти Case IH 414 (309[1]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, CH813F TO CH1568G, 420, CH1372F AND CH2820G (55) - ELECTRICAL SYSTEMS

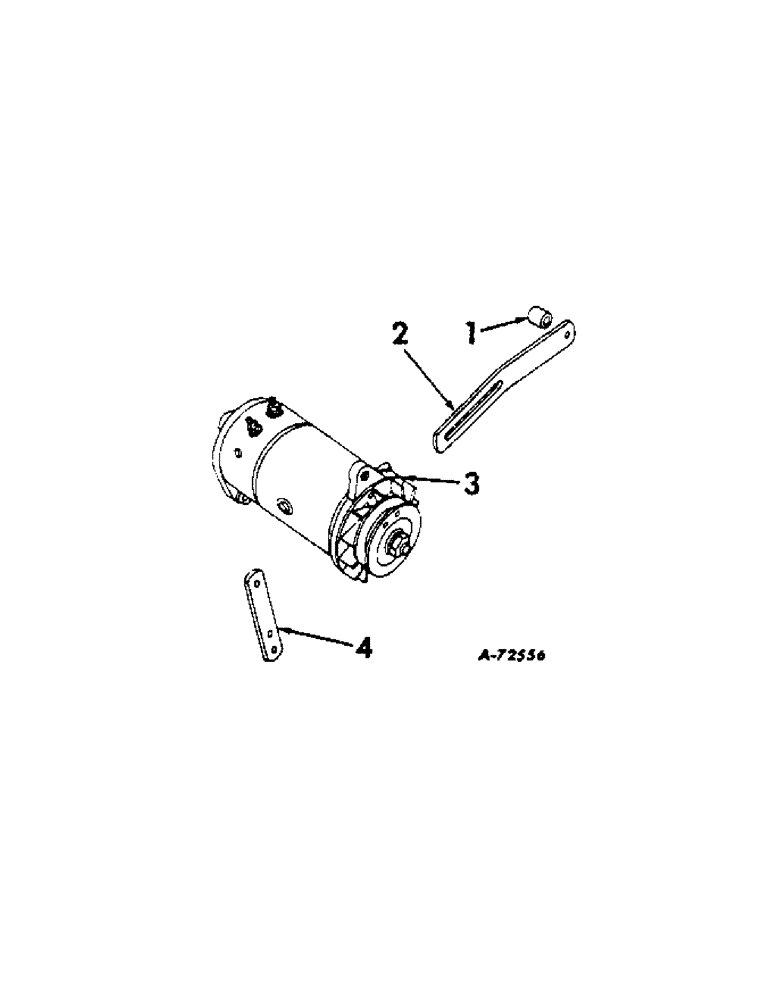

Схема запчастей Case IH 414 - (309[1]) - ELECTRICAL SYSTEM, GENERATOR AND CONNECTIONS, 414, CH813F TO CH1568G, 420, CH1372F AND CH2820G (55) - ELECTRICAL SYSTEMS
1
2
4
3

Артикул

Название

Примечание

Количество

1

280185R1

SPACER

generator brace, gasoline

1шт.

1

371108R1

SPACER,3/8" Pipe x .844"

generator brace, LP gas

1шт.

2

367250R1

BRACE, generator, gasoline

1шт.

2

371107R2

SUPPORT

BRACE, generator, LP gas

1шт.

SCREW, 3/8 x 2-3/4 cap, gasoline

1шт.

SCREW, 3/8 x 3-1/2 cap, LP gas

1шт.

WASHER, 3/8 lock, gasoline

1шт.

3

1100394

GENERATOR ASSY, 20 amp, 369599R92, Order 1100401, For components see list of parts under details of generator, 414CH813F to CH1119F, Serial Range: 420CH1372F-CH2059F

1шт.

3

1102191

GENERATOR ASSY, 30 amp, less pulley, 227120R91, Order 1102210, For components see list of parts under details of generator

1шт.

NUT, 5/16

1шт.

SCREW, 5/16 x 3/4 cap

1шт.

SCREW, 5/16 x 1 cap

1шт.

SCREW, 5/16 x 1-1/8 cap, 20 amp. generator

1шт.

SCREW, 5/16 x 2-1/4 cap, 30 amp. generator

1шт.

WASHER, 5/16 lock

3шт.

1943516

PULLEY

ASSY, generator, 30 amp. generator, 310539R91

1шт.

4

367661R1

BRACKET, generator

1шт.

SCREW, 5/16 x 1 cap

2шт.

WASHER, 5/16 lock

2шт.

U13039

SPACER

generator, 30 amp. generator

1шт.

Выбрано товаров: 20
