Запчасти Case IH 414 (308) - ELECTRICAL SYS., CRANKING MOTOR, DELCO-REMY, 12 VOLT, 414, CH1120G - CH1568G, 420, CH2060G - CH2820G (55) - ELECTRICAL SYSTEMS

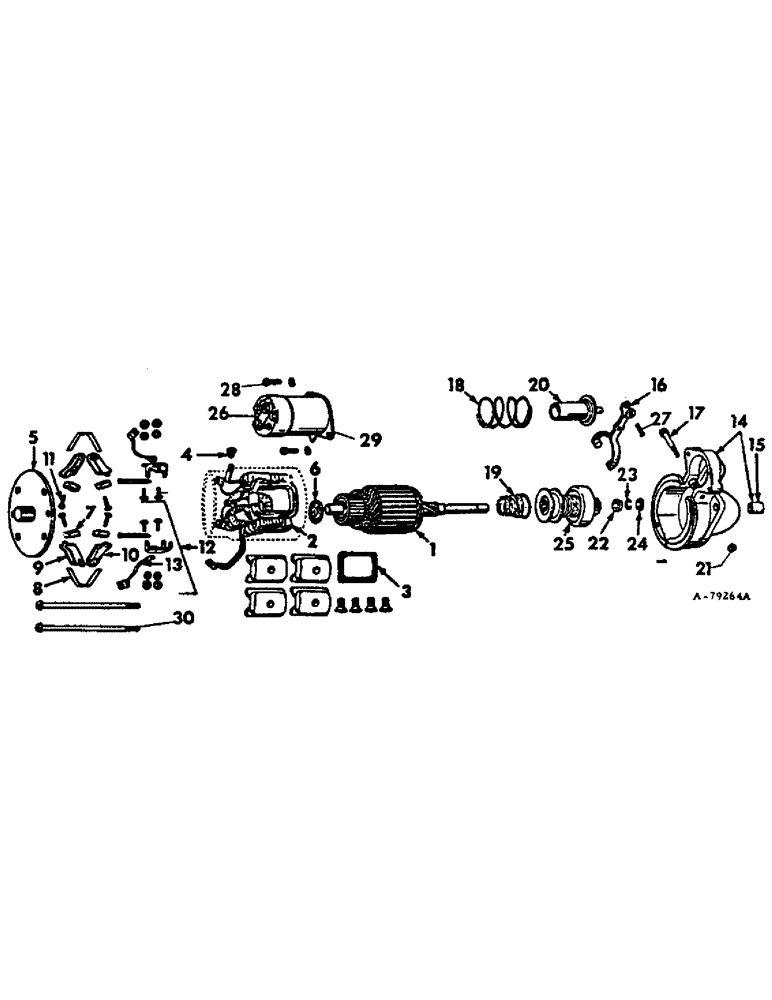

Схема запчастей Case IH 414 - (308) - ELECTRICAL SYS., CRANKING MOTOR, DELCO-REMY, 12 VOLT, 414, CH1120G - CH1568G, 420, CH2060G - CH2820G (55) - ELECTRICAL SYSTEMS
8
15
14
4
29
3
13
28
5
11
27
1
26
22
20
30
7
25
10
17
24
2
19
6
16
12
23
18
21
9

Артикул

Название

Примечание

Количество

1107679

MOTOR ASSY, cranking, 165477R91, 12 volt

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120381

WASHER

3/8 znd light lock

1шт.

1

1932185

ARMATURE ASSY

1шт.

2

1935128

COIL

ASSY, field, 3 coils

1шт.

2

1935131

COIL

FIELD, shunt

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1966391

GROMMET

in field frame

1шт.

5

1928966

FRAME

commutator end

1шт.

6

818265

WASHER

commutator end spacing

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1940477

HOLDER

PACKAGE, ground brush holder

2шт.

10

1926618

HOLDER

PACKAGE, insulated brush holder

2шт.

11

NLS

NO LONGER SERVICED

SCREW, brush attaching

4шт.

12

1928015

BRACKET

KIT, brush holder support

2шт.

13

1960864

BRUSH, COMMUTATOR

LEAD, brush ground

2шт.

14

1955325

HOUSING ASSY, drive end

1шт.

15

1923907

BUSHING

drive end housing

1шт.

16

1951567

LEVER

shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

plunger return

1шт.

19

1932209

SEAL

SPRING, shift lever assisting

1шт.

20

1941113

PLUNGER

solenoid switch

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

shift lever stud

1шт.

22

1927849

COLLAR

drive end pinion stop

1шт.

23

1927848

RING

drive end pinion stop ret snap

1шт.

24

1927850

COLLAR ASSY.

COLLAR, drive end spacing

1шт.

25

1937975

DRIVE

ASSY, motor

1шт.

26

65478C1

SWITCH

ASSY, solenoid, Replaces 1114287 and 1114356

1шт.

120622

NUT,#8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

455106

PIN

solenoid switch plunger

1шт.

28

132255

SCREW, solenoid switch Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

29

1952427

GASKET

between switch and housing

1шт.

30

A41342

BOLT

BOLT, drive end housing thru

2шт.

Выбрано товаров: 42
