Запчасти Case IH 414 (307) - ELECTRICAL SYS., CRANKING MOTOR, DELCO-REMY, 12 VOLT, 414, UP TO S/N CH1119F, 420, UP TO S/N CH2059F (55) - ELECTRICAL SYSTEMS

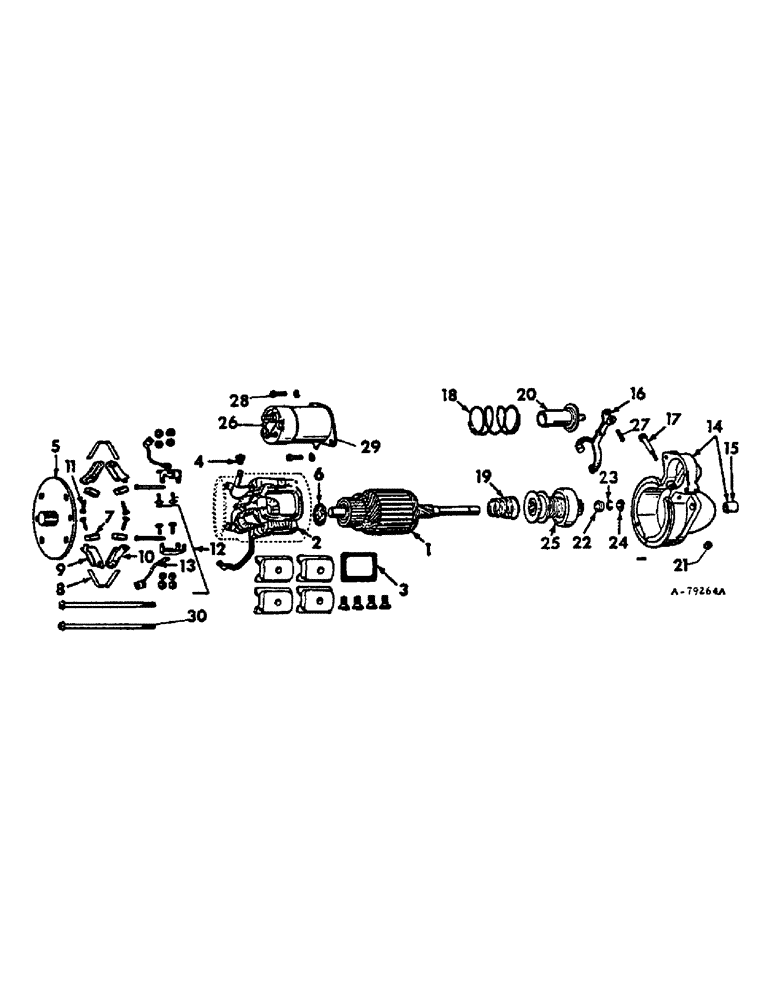

Схема запчастей Case IH 414 - (307) - ELECTRICAL SYS., CRANKING MOTOR, DELCO-REMY, 12 VOLT, 414, UP TO S/N CH1119F, 420, UP TO S/N CH2059F (55) - ELECTRICAL SYSTEMS
9
8
14
11
6
25
5
28
15
26
23
30
7
10
12
3
2
21
13
1
17
29
22
24
16
18
19
20
27
4

Артикул

Название

Примечание

Количество

1107734

MOTOR ASSY, cranking, 305174R91, 12 volt

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

1938178

ARMATURE ASSY

1шт.

2

1935128

COIL

ASSY, field, 3 coils

1шт.

2

1935131

COIL

field-shunt

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

4

1966391

GROMMET

in field frame

1шт.

5

1928966

FRAME

commutator end

1шт.

6

818265

WASHER

commutator end spacing

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1940477

HOLDER

PACKAGE, ground brush holder

2шт.

10

1926618

HOLDER

PACKAGE, insulated brush holder

2шт.

11

NLS

NO LONGER SERVICED

brush attaching

4шт.

12

1928015

BRACKET

KIT, brush holder support

2шт.

13

1960864

BRUSH, COMMUTATOR

LEAD, brush ground

2шт.

14

1956461

HOUSING ASSY, drive end

1шт.

15

1839345

BUSHING

drive end housing

1шт.

16

1951567

LEVER

shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

plunger return

1шт.

19

1938171

SPRING, shift lever assisting

1шт.

20

1941113

PLUNGER

solenoid switch

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

shift lever stud

1шт.

22

1928021

COLLAR

drive end pinion stop

1шт.

23

1928022

SNAP RING

RING, drive end pinion stop ret snap

1шт.

24

1928023

WASHER

COLLAR, drive end spacing

1шт.

25

1952410

WALL

DRIVE ASSY, motor

1шт.

26

65478C1

SWITCH

ASSY,solenoid, Replaces 1114281

1шт.

120622

NUT,#8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

455106

PIN

shift lever

1шт.

28

132255

SCREW, solenoid switch Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

29

1952427

GASKET

between switch and housing

1шт.

30

1939970

FUSE

BOLT, drive end housing thru

2шт.

Выбрано товаров: 38
