Запчасти Case IH 414 (306) - ELECTRICAL SYSTEM, DISTRIBUTOR, C-263 WITH SERIAL NUMBER 103475 AND ABOVE (55) - ELECTRICAL SYSTEMS

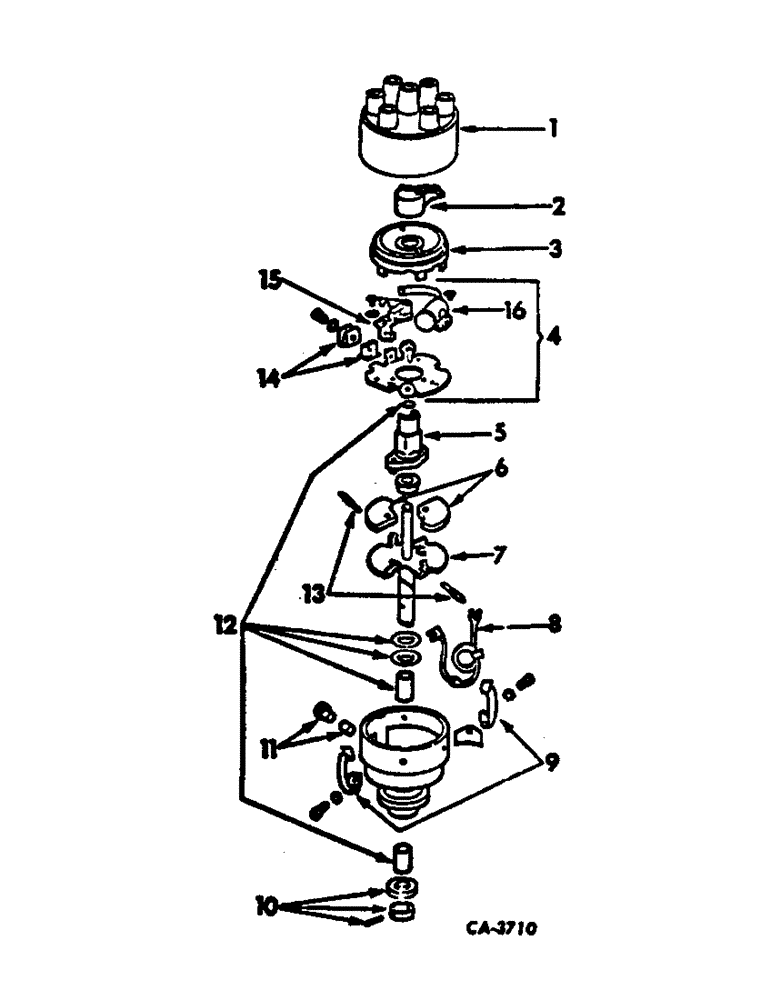

Схема запчастей Case IH 414 - (306) - ELECTRICAL SYSTEM, DISTRIBUTOR, C-263 WITH SERIAL NUMBER 103475 AND ABOVE (55) - ELECTRICAL SYSTEMS
13
9
12
11
1
3
14
15
2
6
4
5
8
10
16
7

Артикул

Название

Примечание

Количество

68830C91

DISTRIBUTOR

ASSY

1шт.

1

69093C1

CAP

ASSY

1шт.

2

532034R1

ROTOR

1шт.

3

531449R1

COVER

ASSY, dust

1шт.

4

69095C91

PLATE

ASSY, breakaway, Consists of ref. nos 8, 14, 15 and 16

1шт.

5

69094C1

CAM AND STOP PLATE

1шт.

6

531443R1

SET, governor weight

1шт.

7

539936R1

SHAFT, drive

1шт.

8

69096C1

CABLE

LEAD ASSY, primary

1шт.

9

531446R1

PACKAGE

cap clamp, spring and hinge

1шт.

10

531460R91

PACKAGE

shaft collar

1шт.

11

539934R1

PACKAGE

oiler plug and wick

1шт.

12

531459R91

BEARING

PACKAGE, shaft bearing

1шт.

13

60097C1

SPRING, governor weight

2шт.

14

539933R1

KIT

PACKAGE, clip and insulator

1шт.

15

531456R1

SET

contact breaker

1шт.

16

531455R1

PACKAGE

condenser

1шт.

Выбрано товаров: 17
