Запчасти Case IH 414 (305) - ELECTRICAL SYSTEM, DISTRIBUTOR, C-263 WITH SERIAL NUMBER 103474 AND BELOW (55) - ELECTRICAL SYSTEMS

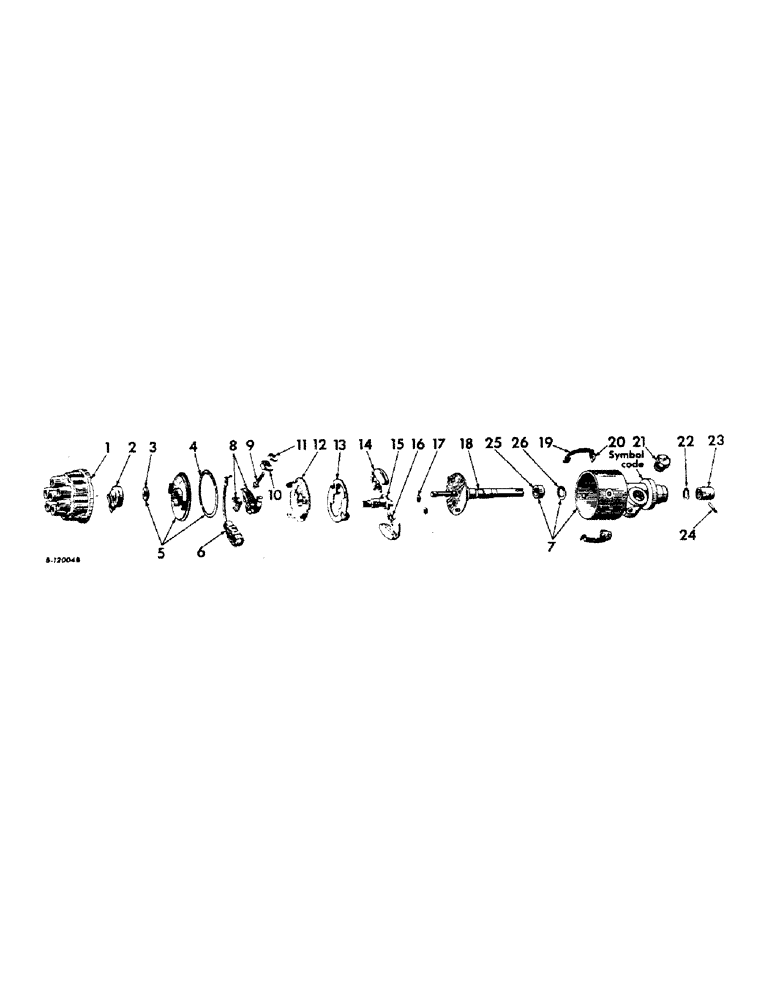

Схема запчастей Case IH 414 - (305) - ELECTRICAL SYSTEM, DISTRIBUTOR, C-263 WITH SERIAL NUMBER 103474 AND BELOW (55) - ELECTRICAL SYSTEMS
9
6
24
26
12
18
23
3
14
11
7
19
1
2
20
25
13
16
8
15
22
5
17
10
4
21

Артикул

Название

Примечание

Количество

372867R92

DISTRIBUTOR

ASSY, AC symbol, gasoline, C-263 w/serial no. 32459 & below

1шт.

371579R92

DISTRIBUTOR ASSY, AA symbol, LP gas, C-263 w/serial no. 32459 & below

1шт.

372986R91

DISTRIBUTOR

ASSY, AD symbol, gasoline and LP gas, C-263 w/serial no. 32460 & above, Order distributor, 388592R91 for gasoline engines or distributor, 388535R91 for LP gas engines

1шт.

388592R91

DISTRIBUTOR

ASSY, AN symbol, gasoline, C-263 w/serial no. 32460 & above

1шт.

388535R91

DISTRIBUTOR

ASSY, AP symbol, LP gas, C-263 w/serial no. 32460 & above

1шт.

1

368062R91

CAP

distributor

1шт.

1

368062R91GV

CAP

Value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

breaker cover felt

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

3539039R2

CONDENSER ASSY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

NO. 8 X 3/16 C-Z SLT-FIL-HD MACH SCREW

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

368051R11

HOUSING ASSY, distributor

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z SLT-HDLS PIPE PLUG

1шт.

8

372951R91

SCREW,POINTED

POINT SET, distributor

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

8

353172R91

BREAKER

POINT SET, distributor, Used only w/distributor, 371579R92

1шт.

443690

SCREW, 8-32 x 3/16 cd or zn-pltd slt-fil-hd mach

1шт.

21394D

WASHER

STATIONARY POINT AND TERMINAL WASHER

2шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker

1шт.

12

352277R11

PLATE

ASSY, breaker, Used only w/distributor, 371579R92

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

NO. 8 X 3/8 C-Z SLT-RD-HD SCREW

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

NO. 8 X 1/4 C-Z SLT-FIL-HD MACH SCREW

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

weight

2шт.

15

356192R91

CAM

ASSY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

362725R91

SPRING

PACKAGE, governor spring, Used w/distributors, 372986R91 and 388592R91

1шт.

16

368102R91

PACKAGE

governor spring, Used w/distributor, 371579R92

1шт.

16

373331R91

PACKAGE

governor spring, Used w/distributor, 372867R92

1шт.

16

389004R91

PACKAGE, governor spring, Used w/distributor, 388535R91

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

368059R91

SHAFT

ASSY, distributor, Used w/distributor, 372867R92

1шт.

18

371580R91

SHAFT ASSY, distributor, Used w/distributors, 371579R92 and 388535R91

1шт.

18

388593R91

SHAFT

ASSY, distributor, Used w/distributors, 372986R91 and 388592R91

1шт.

19

368096R1

SPRING

distributor cap

2шт.

20

353895R1

SUPPORT

distributor cap spring

2шт.

132756

SCREW, no. 8 x 7/8 slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

369013R1

PLUG

distributor housing

1шт.

22

368054R1

THRUST WASHER

distributor thrust lower

1шт.

23

368053R1

BUSHING

COLLAR, distributor shaft

1шт.

24

354552R1

HARDWARE

PIN, distributor shaft collar

1шт.

25

368057R91

OIL SEAL

OIL SEAL, distributor shaft

1шт.

26

368055R1

WASHER, distributor thrust upper

1шт.

407062R91

BREAKER

SET, points and condenser, Consists of

1шт.

353903R92

CONDENSER

1шт.

372951R91

SCREW,POINTED

POINT SET

1шт.

407018R91

BREAKER

SET, points and condenser, Used only w/distributor, 371579R92, Consists of

1шт.

353903R92

CONDENSER

1шт.

353172R91

BREAKER

POINT SET

1шт.

Выбрано товаров: 61
