Запчасти Case IH 414 (303) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR (55) - ELECTRICAL SYSTEMS

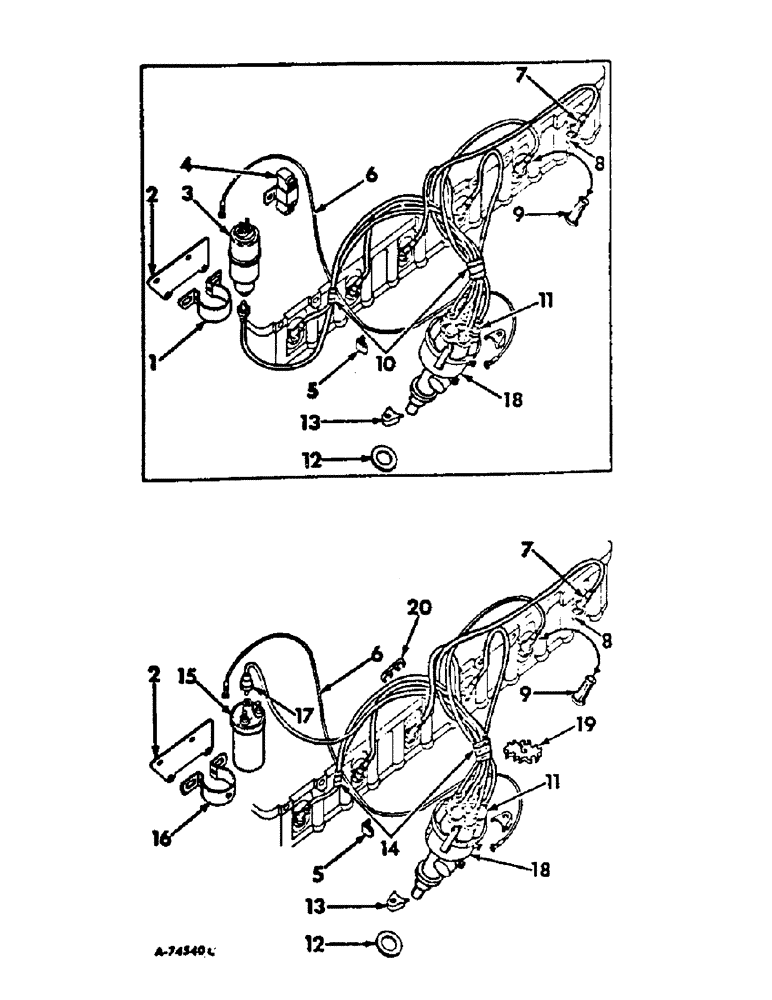

Схема запчастей Case IH 414 - (303) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR (55) - ELECTRICAL SYSTEMS
10
16
7
5
5
1
11
8
17
9
6
14
11
8
15
19
2
7
13
12
9
3
13
18
12
2
20
6
18
4

Артикул

Название

Примечание

Количество

1

358619R1

CLAMP, coil, C-263 w/serial no. 70900 & below

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

179812

GEAR

5/16 X 1/2 CAP SCREW

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

NO. 10NF X 1-1/4 SLT-RD-HD MACH SCREW

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X 16 GA WASHER

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

2

370534R11

BRACKET ASSY, ignition coil

1шт.

179852

BOLT

7/16 X 1/2 CAP SCREW

2шт.

3

368839R93

COIL ASSY, ignition, C-263 w/serial no. 70900 & below, For service replacement, Order package, 396546R93

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

368573R91

RESISTOR

ignition coil

1шт.

5

370535R1

CLIP

coil to distributor cable

1шт.

6

368267R91

CABLE

coil to distributor primary

1шт.

7

RD15Y

SPARK PLUG

W/GASKET 37762H, moderate service, Champion

6шт.

7

18R52

SPARK PLUG W/GASKET 37762H, moderate service, Prestolite

6шт.

RD6

SPARK PLUG

W/GASKET 37762H, heavy service, Champion, gasoline engines only

6шт.

8

37762H

GASKET

spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal

6шт.

10

407488R1

KIT,Spark Plug Wire

PACKAGE, spark plug cable service, C-263 w/serial no. 104419 and below, Consists of six spark plug cables, coil to distributor cable, and eight nipples, 251553R1

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.

12

353936R2

GASKET

distributor

1шт.

13

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

395327R1

BOLT, 5/16-18 x 7/8 special hex-hd

2шт.

12736D

ELECTRICAL WIRE

SEAL, distributor screw

2шт.

14

70213C91

PACKAGE

spark plug cable service, C-263 w/serial no. 104420 and above, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CABLE

6шт.

NSS

NOT SOLD SEPARAT

COIL CABLE

1шт.

536582R1

RETAINER

1шт.

531981R1

RETAINER

4шт.

371430R1

INSULATOR

6шт.

251553R1

BOOT

NIPPLE

7шт.

372875R1

NIPPLE, LUBE

NIPPLE

1шт.

15

396546R93

KIT

PACKAGE, ignition coil service, C-263 w/serial no. 70901 & above, Consists of

1шт.

15

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

396329R93

COIL WITH CLAMP (NSS)

1шт.

372875R1

NIPPLE, LUBE

NIPPLE

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

1115202

COIL

ASSY, ignition, 12 volt, Delco Remy, Order 191445R91, C-263 w/serial no. 70901 & above, optional with coil package 396546R93

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

CLAMP, ignition coil, Prestolite, Order package, 396546R93

1шт.

16

1909326

CLAMP

ignition coil, Delco Remy, Used with coil, 1115202

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd-hd tap

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

17

372875R1

NIPPLE, LUBE

NIPPLE, coil terminal

1шт.

18

DISTRIBUTOR ASSY, For components see list of parts under details of distributor

1шт.

19

536582R1

RETAINER, spark plug cable, 7 wire

1шт.

20

531981R1

RETAINER, spark plug cable, 2 wire

4шт.

46190DC

TOOL

WRENCH, spark plug

1шт.

Выбрано товаров: 54
