Запчасти Case IH 414 (290[1]) - ELECTRIC FUEL PUMP AND CONNECTIONS, GASOLINE ONLY (55) - ELECTRICAL SYSTEMS

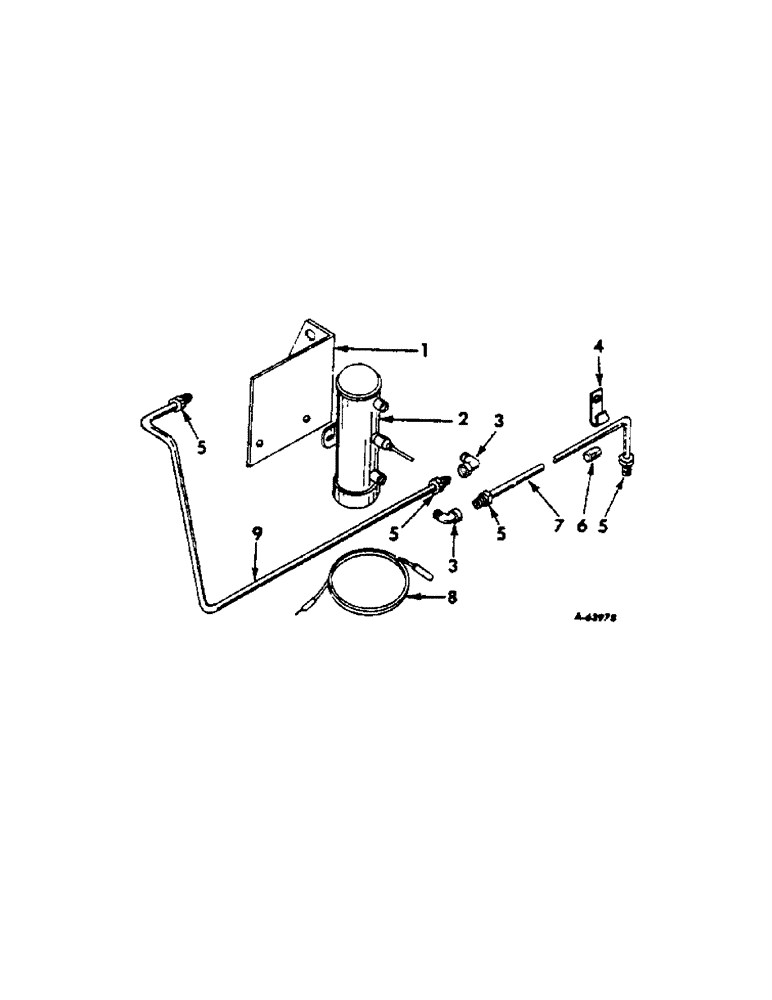

Схема запчастей Case IH 414 - (290[1]) - ELECTRIC FUEL PUMP AND CONNECTIONS, GASOLINE ONLY (55) - ELECTRICAL SYSTEMS
9
2
3
4
8
7
6
1
5
5
3
5
5

Артикул

Название

Примечание

Количество

1

316158R1

BRACKET, electric fuel pump mounting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

17677R1

BOLT (SPREADER),Hex, 5/8" - 11 x 3 1/2", Gr 2

SCREW, 5/8 x 3-1/2 mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

631259R91

PUMP

ASSY, 12 volt electric fuel, For components see list of parts under details of electric fuel pump

1шт.

109084

NUT,1/4"-20, G5

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

86534426

ELBOW

1/8 90 deg street, 414CH813F up, 420CH1372F up

1шт.

3

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

BODY, elbow

1шт.

4

27385D

CLIP, fuel line

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

5

19985R1

TUBE NUT,1/2"-20

NUT, 5/16 coupling

4шт.

6

52728D

FELT, fuel line clip

1шт.

7

667478R1

LINE, tank to pump, 414CH813F thru CH1568G, 420CH1372F thru CH2820G, 416CH501H and above, 422CH501H and above

1шт.

7

666108R1

LINE, fuel, 414CH501E thru CH812E, 420CH501E thru CH1371E

1шт.

8

666109R93

CABLE, resistor to fuel pump, 416-501 thru CH2048, 422-501 thru CH3365

1шт.

9

316159R11

PIPE ASSY, carburetor to fuel pump, 414CH501E THRU CH812E, CH1568G, 420CH1372F thru CH2820G

1шт.

9

667477R1

LINE, carburetor to fuel pump, 414CH813F thru CH1568G, 420CH1372F thru CH2820G, 416CH501H and above, 422CH501H and above

1шт.

560999R91

HOSE

LINE, fuel flexible, from pump outlet to carburetor line, 414CH813F thru CH1568G, 420CH1372F thru CH2820G, 416CH501H and above, 422CH501H and above

1шт.

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, tube, at pump and carburetor

2шт.
