Запчасти Case IH 414 (256) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR, 414, CH813F UP, 420, CH1372F UP (55) - ELECTRICAL SYSTEMS

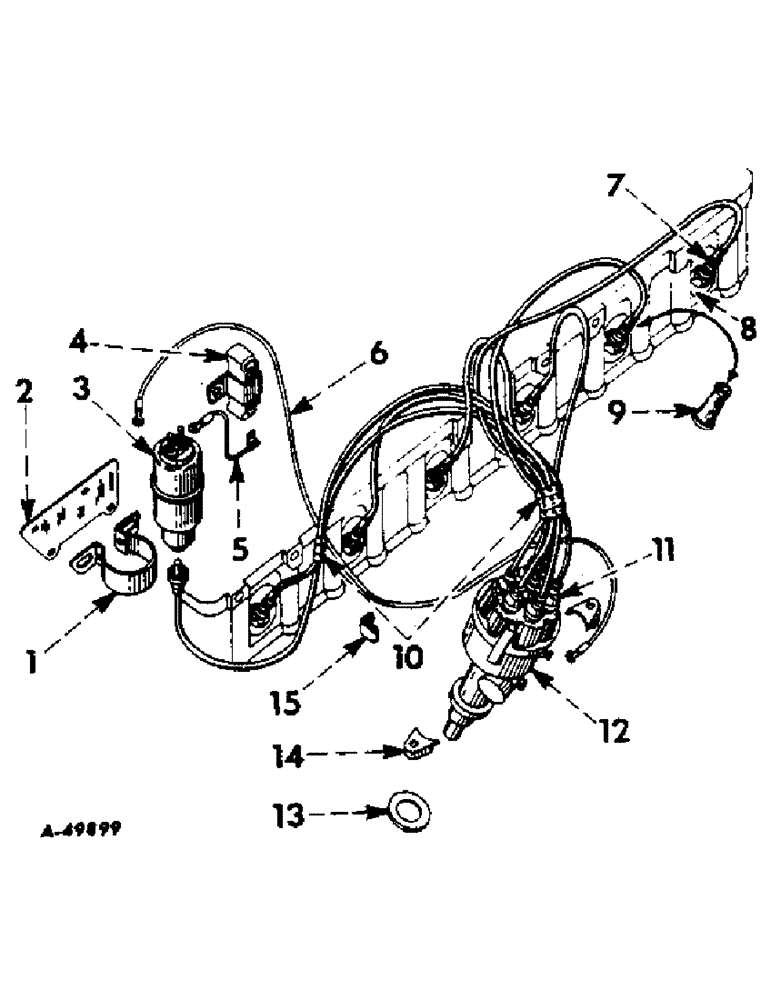

Схема запчастей Case IH 414 - (256) - ELECTRICAL SYSTEM, SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR, 414, CH813F UP, 420, CH1372F UP (55) - ELECTRICAL SYSTEMS
7
5
15
3
14
8
9
2
13
1
10
4
11
6
12

Артикул

Название

Примечание

Количество

1

358619R1

CLAMP, coil

1шт.

NUT, no. 10NF cd-pltd sq

2шт.

SCREW, 5/16 x 1/2 cap

2шт.

SCREW, no. 10NF x 1-1/4 slt-rd-hd mach

2шт.

WASHER, 11/32 x 11/16 x 16 ga

2шт.

WASHER, no. 10 cd-pltd lock

2шт.

2

370534R11

BRACKET ASSY, ignition coil

1шт.

SCREW, 7/16 x 1/2 cap

2шт.

3

368839R91

COIL

ASSY, ignition, 12R

1шт.

120611

NUT,#10 - 32

no. 10NF cd-pltd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

368573R91

RESISTOR

ignition coil

1шт.

5

370594R91

CABLE ASSY, Serial Range: coil-resistor

1шт.

6

368267R91

CABLE

coil to distributor primary

1шт.

7

108074HA

SPARK PLUG, w/gasket, 103225H, light or moderate service, Champion J-7, gasoline engines

6шт.

7

105710HA

SPARK PLUG

w/gasket, 103225H, light or moderate service, Champion J-6, LP gas engines

6шт.

8

103225H

GASKET, spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal

6шт.

10

368270R91

CABLE

ASSY, spark plug, Consists of six spark plug cables, coil to distributor cable and eight nipples, 251553R1

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal

8шт.

12

361016R95

DISTRIBUTOR

ASSY, For components see list of parts under details of distributor

1шт.

13

353936R2

GASKET

distributor

1шт.

14

353937R1

CLIP

CLAMP DISTRIBUTOR

2шт.

SCREW, 5/16 x 7/8 cap

2шт.

WASHER, 5/16 lock

2шт.

15

370535R1

CLIP

coil to distributor cable

1шт.

Выбрано товаров: 26
