Запчасти Case IH 414 (250) - ELECTRICAL SYSTEM, CRANKING MOTOR (55) - ELECTRICAL SYSTEMS

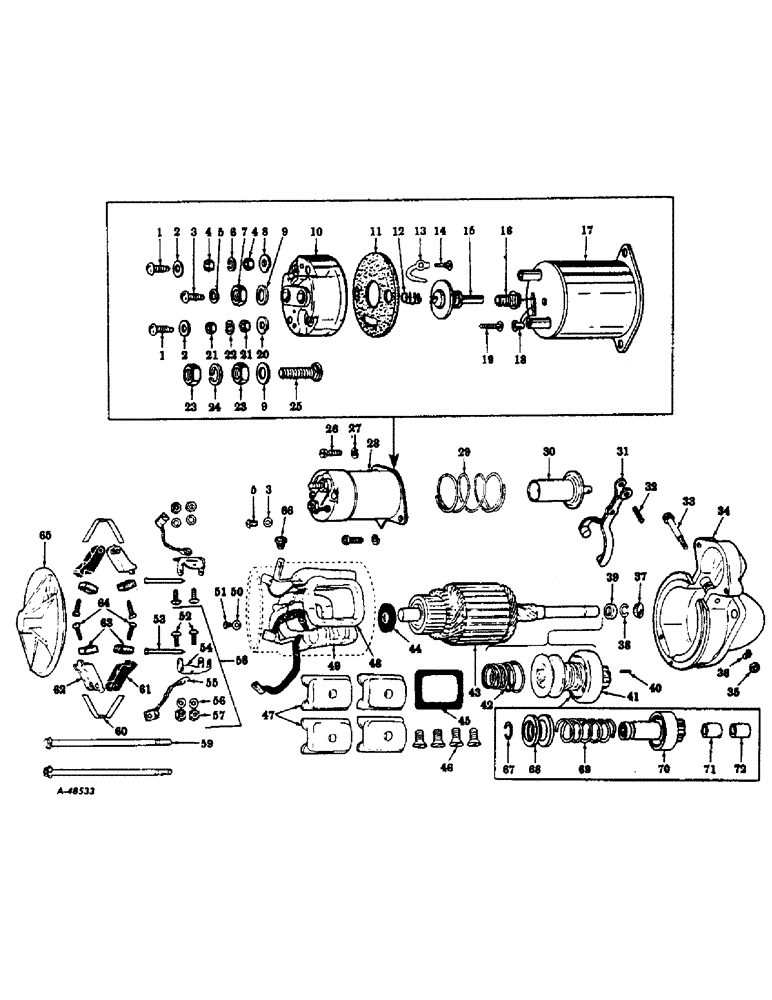

Схема запчастей Case IH 414 - (250) - ELECTRICAL SYSTEM, CRANKING MOTOR (55) - ELECTRICAL SYSTEMS
18
55
28
30
4
9
71
23
53
6
59
41
44
45
43
3
16
3
47
19
13
69
57
21
42
8
1
1
5
26
17
7
14
72
46
38
40
61
37
31
21
34
70
56
22
2
11
29
67
10
32
33
48
4
49
15
24
20
8
27
60
12
25
68
23
2

Артикул

Название

Примечание

Количество

1107679

MOTOR ASSY, cranking, 12 volt, 165477R91

1шт.

1

132903

ADAPTER

SCREW, no. 10-NF x 7/16 slt-rd-hd, machine

2шт.

2

1923935

WASHER, cover attaching screw

2шт.

3

1928679

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

field lead attaching, slt-rd-hd, no. 10-NF x 1/2

2шт.

4

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

6

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

7

280136

NUT,3/8"-16, G8

1шт.

8

1923935

WASHER, insulating, R terminal

1шт.

9

1927345

WASHER, insulating, terminal stud

2шт.

10

1935643

COVER, switch

1шт.

11

NOT USED

1шт.

12

1853342

SPRING

return contract

1шт.

13

1935645

HALF BLADE

CLIP, B terminal

1шт.

14

1935644

STUD, R terminal, no. 10-NF

1шт.

15

1932243

CONTACT

W/PUSH ROD ASSY

1шт.

16

1932242

STUD, 3/8 terminal

1шт.

17

NOT SERVICED SEPARATELY

1шт.

18

1937381

CLIP, S terminal

1шт.

19

1837533

STUD, S terminal, no. 8

1шт.

20

1936969

WASHER, insulated, S terminal

1шт.

21

120622

NUT,#8-32

S terminal #8-32

2шт.

22

1904615

RING

WASHER, no. 8 lock

1шт.

23

802758

VOLTAGE REGULATOR

NUT, 3/8

2шт.

24

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

1927344

EYE

STUD

1шт.

26

132255

SCREW, 1/4 x 1/2 slt-rd-hd machine Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

1119936

SWITCH

ASSY (Replaces 119936)

1шт.

29

1932208

SPRING

plunger return

1шт.

30

1932200

RELAY

PLUNGER, solenoid switch

1шт.

31

1932205

LEVER

shift

1шт.

32

1932204

PIN

lever shift

1шт.

33

1932197

SCREW

STUD, shift lever

1шт.

34

1937984

HOUSING W/BUSHING ASSY, drive end

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

shift lever stud

1шт.

36

WASHER, 5/16 lock

1шт.

37

1927850

COLLAR ASSY.

COLLAR, drive end spacing

1шт.

38

1927848

RING

SNAP RING, drive end pinion stop retainer

1шт.

39

1927849

COLLAR

drive end pinion stop

1шт.

40

809593

PIN

drive end dowel

1шт.

41

1937975

DRIVE

ASSY, motor

1шт.

42

1932209

SEAL

SPRING, shift lever assisting

1шт.

43

1932185

ARMATURE ASSY

1шт.

44

818265

WASHER

commutator end spacing

1шт.

45

1927853

FOAM INSULATION

INSULATION, field coil

1шт.

46

1843646

SCREW

pole shoe

4шт.

47

196616

SHOE, pole

4шт.

48

1935131

COIL

field-shunt

1шт.

49

1935128

COIL

ASSY, field

1шт.

50

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

51

1929443

SCREW, field lead to ground, rd-hd, no. 8 x 1/4

1шт.

52

187463

BUSHING,35.09mm ID x 44.5mm OD x 60.33mm L

SCREW, no. 10 x 1/2 slt-truss-hd

4шт.

53

1926600

PIN

supt attaching

2шт.

54

NOT SERVICED SEPARATELY

1шт.

55

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

56

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

57

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

58

1928015

BRACKET

KIT, brush holder supt, Includes ref. nos. 52 through 57

1шт.

59

1926625

BOLT

thru

2шт.

60

1926622

VALVE SPRING

SPRING, brush

2шт.

61

1926618

HOLDER

insulated brush

2шт.

62

1926617

BRUSH HOLDER

HOLDER, ground brush

2шт.

63

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

64

1926648

SCREW, brush attaching

4шт.

65

1928966

FRAME

commutator end

1шт.

66

1935168

GROMMET

lead

1шт.

67

37521

PIPE

SNAP RING

1шт.

68

1838436

COLLAR, motor drive

1шт.

69

1932196

SPRING, motor drive

1шт.

70

NOT SERVICED SEPARATELY

1шт.

71

1923904

BUSHING, oiless

1шт.

72

1924732

BUSHING, nylon

1шт.

Выбрано товаров: 72
