(249) - ELECTRICAL SYSTEM, BATTERY AND BATTERY SHELF

Запчасти Case IH 414 (249) - ELECTRICAL SYSTEM, BATTERY AND BATTERY SHELF (55) - ELECTRICAL SYSTEMS

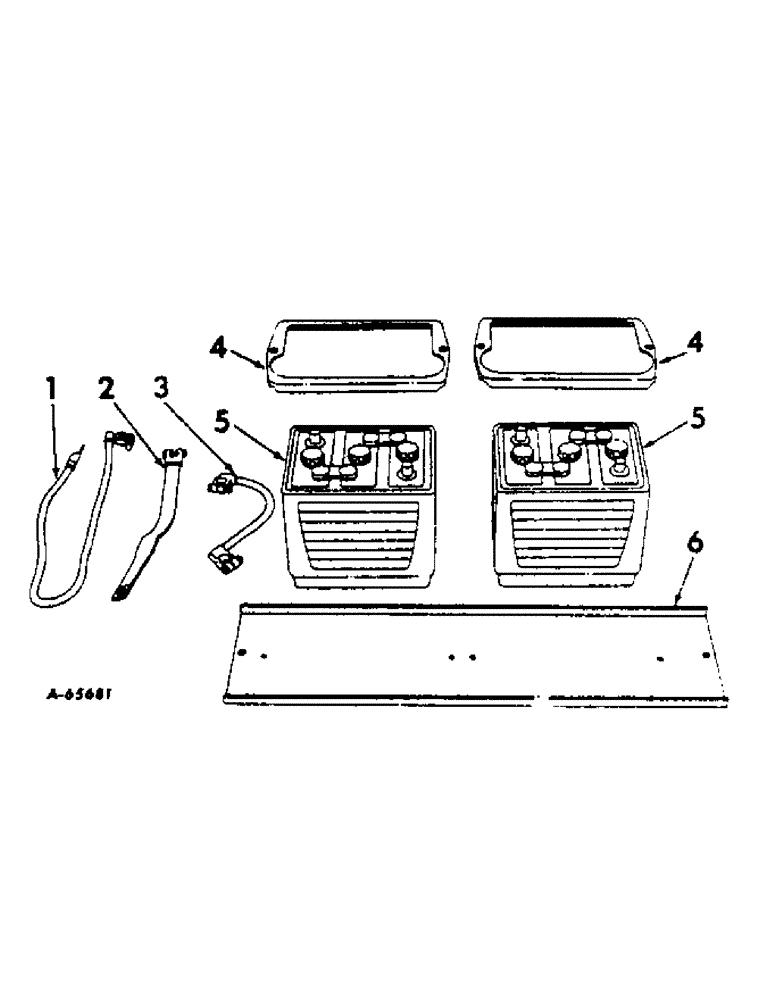

Схема запчастей Case IH 414 - (249) - ELECTRICAL SYSTEM, BATTERY AND BATTERY SHELF (55) - ELECTRICAL SYSTEMS
4
5
1
5
4
6
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

374907R91

CABLE

, Serial Range: battery-starter

1шт.

2

57026R91

CABLE

STRAP, battery ground

1шт.

3

370394R91

CABLE

, Serial Range: battery-battery

1шт.

4

72924R1

CLAMP

battery

2шт.

BOLT, 5/16 x 9 crg

4шт.

NUT, 5/16 wing

4шт.

WASHER, 11/32 x 3/4 x 16 ga

4шт.

5

395602R91

BATTERY, prestolite, 6 volt

2шт.

6

665996R2

SUPPORT, battery

1шт.

BOLT W/NUT, 5/16 x 1 crg

4шт.

WASHER, 5/16 lock

4шт.
