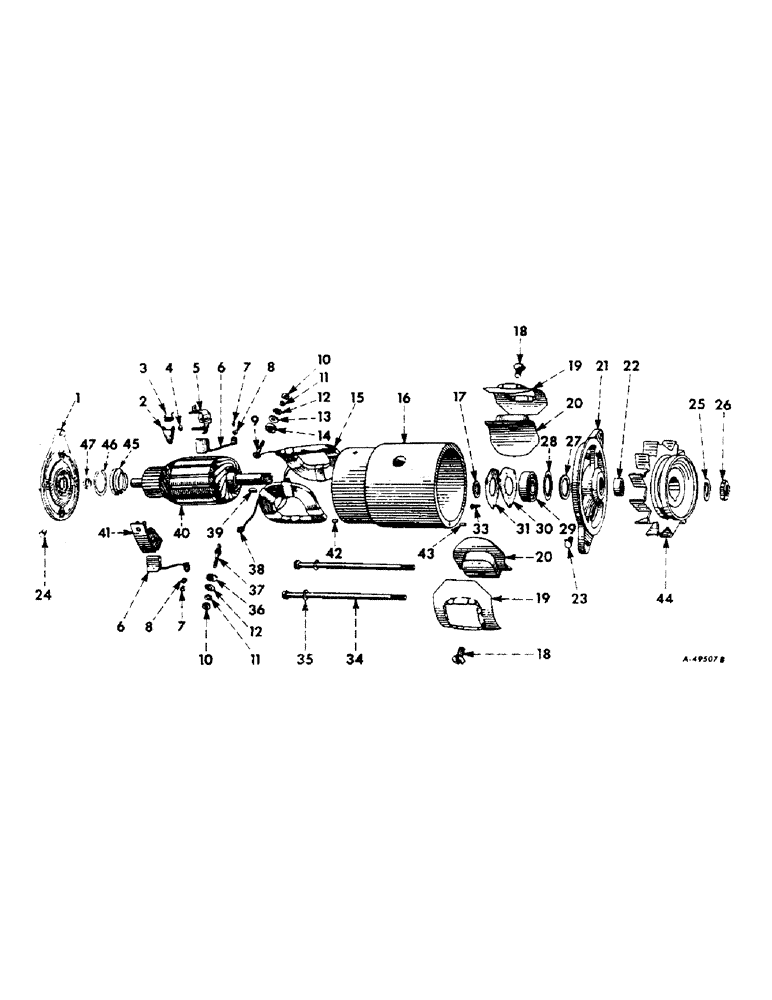

Запчасти Case IH 414 (247) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, 12 VOLT (55) - ELECTRICAL SYSTEMS

1100401

GENERATOR ASSY, 319622R91

1шт.

103814A1R

REMAN-GENERATOR

Generator

1шт.

103814A1C

CORE-GENERATOR

Return Number

1шт.

1

1951512

HOUSING

FRAME ASSY, commutator end, Composed of

1шт.

809062

DOWEL

1шт.

*

FRAME

1шт.

1880635

OILER

1шт.

1945697

GUARD ASSY.

OIL SEAL

1шт.

1947337

RETAINER

1шт.

1947350

WICK

1шт.

2

1878183

ARM

brush

2шт.

3

1916324

VALVE SPRING

SPRING, brush

2шт.

4

1904368

PIN

brush arm space

2шт.

5

1922288

HOLDER

brush ground

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

1шт.

132979

SCREW, no. 12 x 5/8 cd-pltd slt-rd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd lock

1шт.

6

1932506

BRUSH, COMMUTATOR

BRUSH

2шт.

7

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6 x 1/4 cd-pltd slt-rd-hd mach

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

SCREW, no. 6 x 1/4 cd-pltd lock

1шт.

9

1921860

STUD

terminal field

1шт.

10

225-14112

NUT,#12-24

no. 12 cd-pltd

4шт.

11

1904661

LOCK WASHER

WASHER, field terminal stud lock

4шт.

12

1881409

WASHER

terminal stud

2шт.

13

1858753

WASHER

terminal stud insulating

1шт.

14

1885090

BUSHING

field terminal insulating

1шт.

15

1923625

COIL ASSY.

COOL ASSY, field

1шт.

16

NOT SERVICED SEPARATELY

1шт.

17

809945

BUSHING

WASHER, drive end space

1шт.

18

1843646

SCREW

pole shoe

2шт.

19

1914491

INSULATOR, field coil

2шт.

20

1914618

SHOE, pole

2шт.

21

1871693

FRAME W/OILER, pin and wick assy, drive end

1шт.

22

1858603

BUSHING

COLLAR, drive end space

1шт.

23

1880641

OILER

ASSY, drive end

1шт.

24

1880635

OILER

ASSY, commutator end

1шт.

25

1941978

WASHER

drive end shaft nut lock

1шт.

26

1911324

NUT

drive end shaft

1шт.

27

809961

FELT

WASHER, drive end felt

1шт.

28

819104

WASHER

PLATE, drive end felt retainer

1шт.

29

907503

BEARING

BALL BEARING, drive end

1шт.

30

1912008

FELT

GASKET, drive end retainer plate

1шт.

31

1911263

LARGE PLATE

PLATE, drive end retainer

1шт.

32

NOT USED

1шт.

33

1904370

AXLE

drive end retainer plate

3шт.

34

815018

BOLT, through

2шт.

35

120638

LOCK WASHER

WASHER, through bolt lock

2шт.

36

1921362

BUSHING

armture terminal insulating

1шт.

37

1921369

STUD

terminal armature

1шт.

38

200382

CLIP, Serial Range: terminal-brush

1шт.

39

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

40

1928952

ARMATURE

1шт.

41

1922289

HOLDER

brush insulated

1шт.

225-14112

NUT,#12-24

no. 12 cd-pltd

1шт.

132979

SCREW, no. 12 x 5/8 cd-pltd slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, no. 12 cd-pltd lock

1шт.

42

809062

PIN, commutator end dowel

1шт.

43

809593

PIN

drive end dowel

1шт.

44

NOT USED

1шт.

45

1947337

RETAINER, commutator end oil seal

1шт.

46

1947350

WICK

commutator end oil

1шт.

47

1945697

GUARD ASSY.

OIL SEAL, commutator end

1шт.
