Запчасти Case IH 414 (246) - ELECTRICAL SYSTEM, IGNITION COIL, 416, UP TO CH812E, 420, UP TO CH1371E (55) - ELECTRICAL SYSTEMS

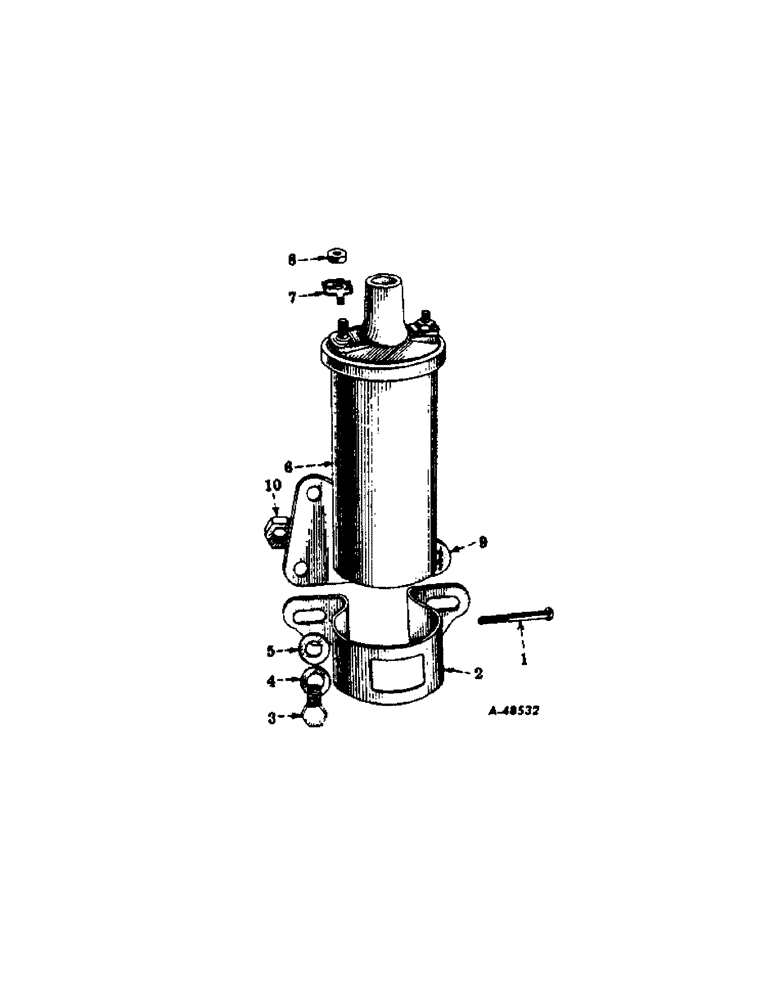

Схема запчастей Case IH 414 - (246) - ELECTRICAL SYSTEM, IGNITION COIL, 416, UP TO CH812E, 420, UP TO CH1371E (55) - ELECTRICAL SYSTEMS
1
8
3
6
10
4
7
5
2

Артикул

Название

Примечание

Количество

1

1885531

EYELET

SCREW, bracket mounting

1шт.

2

1909180

CLAMP

BRACKET, mounting

1шт.

3

179814

SPACER

2шт.

4

WASHER, 5/16 lock

2шт.

5

WASHER, 11/32 x 11/16 x .065 ga plain

2шт.

6

151314R91

COIL

ASSY, ignition

1шт.

7

492-11012

LOCK WASHER,#12

CLAMP, terminal

1шт.

8

115999

NUT,#10-32

no. 10-NF

2шт.

9

178393R1

BRACKET, coil mounting, For AC models

1шт.

10

NUT, 5/16, For AC models

1шт.

Выбрано товаров: 10
