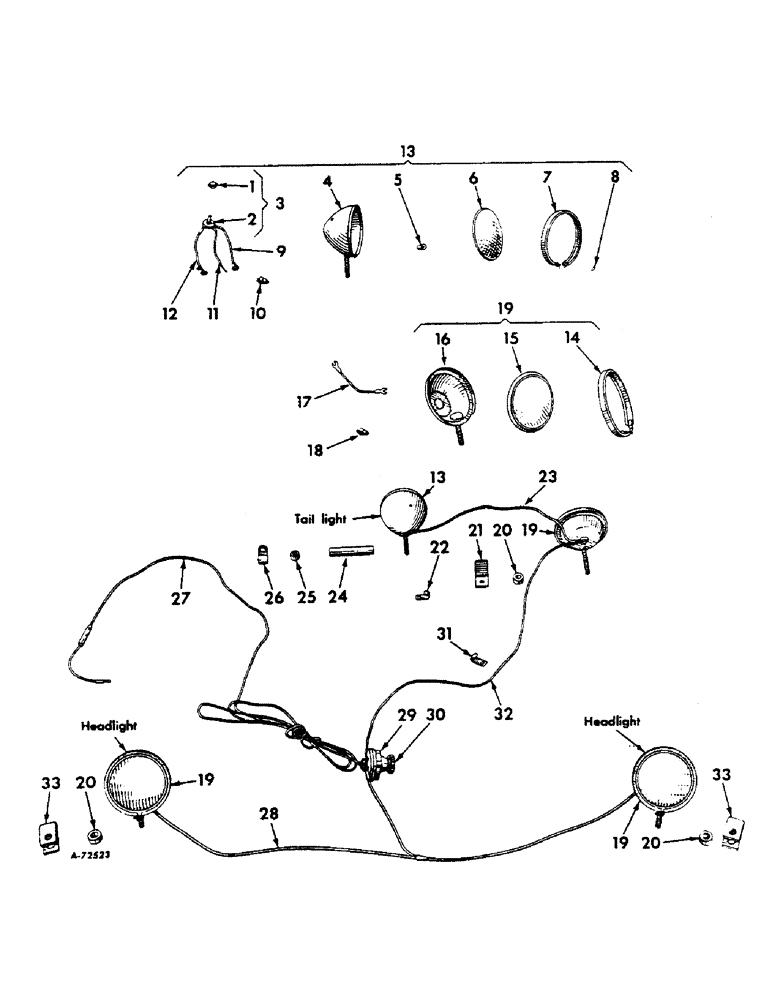

Запчасти Case IH 414 (088) - LIGHTING ATTACHMENT (55) - ELECTRICAL SYSTEMS

LIGHTING ATTACHMENT (When ordered) (666671R92) 414CH813F up, 420CH1372F up

1шт.

1

373309R91

KNOB

switch

1шт.

2

BODY ASSEMBLY, switch (Order switch assembly, 373308R91)

1шт.

64022H

NO. 8 X 5/16" SPECIAL-SLT-RD-HD SCREW

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

3

373308R91

LIGHT SWITCH

SWITCH ASSEMBLY, light

1шт.

4

BODY, tail light (Order light assembly, 373306R91)

1шт.

5

455490

BULB,C-6, #1003, 12V, .94W

LAMP, tail light

1шт.

6

371461R91

LENS

LIGHT, sealed beam

1шт.

7

371450R91

BEZEL

MOULDING, rear light

1шт.

8

132489

SCREW, no. 8 x 1-1/4" slt-fil-hd

1шт.

365697R1

NO. 8 NUT

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

9

373311R91

WIRE ASSEMBLY (Switch to terminal block)

1шт.

10

365664R91

ELEC CONNECTOR

CONNECTOR ASSEMBLY, terminal

1шт.

11

373311R91

WIRE ASSEMBLY (Switch to sealed beam unit)

1шт.

12

373310R91

WIRE W/SPRING ASSEMBLY, Serial Range: (Socket-switch)

1шт.

13

373306R91

LIGHT

ASSEMBLY (Rear lamp and tail)

1шт.

1/2" NUT

1шт.

1/2" LOCK WASHER

1шт.

14

371450R91

BEZEL

MOULDING, headlight

3шт.

365697R1

NO. 8 NUT

3шт.

132489

NO. 8 X 1-1/4" SET-FIL-HD SCREW

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

15

373662R91

LAMP

UNIT, sealed headlight

3шт.

16

BODY, headlight (Order headlight assembly, 373573R91)

1шт.

17

373311R91

WIRE ASSEMBLY (Connector to sealed beam unit)

3шт.

18

365664R91

ELEC CONNECTOR

CONNECTOR ASSEMBLY, terminal

1шт.

19

373573R91

LAMP

HEADLIGHT ASSEMBLY, sealed beam

3шт.

1/2" NUT

3шт.

1/2" LOCK WASHER

3шт.

20

49069D

SPACER

headlight

3шт.

21

561915R1

BRACKET

light

1шт.

3/8 X 1" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

22

61813D

CLIP

cable

3шт.

5/16 X 1/2" MACH BOLT W/NUT

3шт.

5/16" LOCK WASHER

3шт.

23

667241R91

WIRE, basket pivot light to tail light

1шт.

24

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, tail

1шт.

1/2 X 6" MACH BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

25

49069D

SPACER

tail light

1шт.

26

350920R1

CLAMP

tail light

1шт.

27

667240R91

WIRE, voltage, Serial Range: regulator-switch

1шт.

28

667243R91

WIRE, switch to head light

1шт.

29

355698R91

SWITCH

light

1шт.

57312D

11/16" NUT

1шт.

141706

WASHER

11/16" INT-TOOTH LOCK WASHER

1шт.

30

57313D

KNOB, light switch

1шт.

64022H

NO. 8 X 1/4" SLT-RD-HD SCREW

1шт.

NO. 8 LOCK WASHER

1шт.

31

58313D

CLIP, cable

8шт.

32

667242R91

WIRE, switch to basket pivot light

1шт.

33

561916R1

CLAMP, headlight

2шт.

28499H

SLEEVE, insulating

2шт.

666673R1

TERMINAL

1шт.

187540

GROMMET, steering post rubber 1/4" ID x 5/8" x .125", Diag Cut

2шт.
