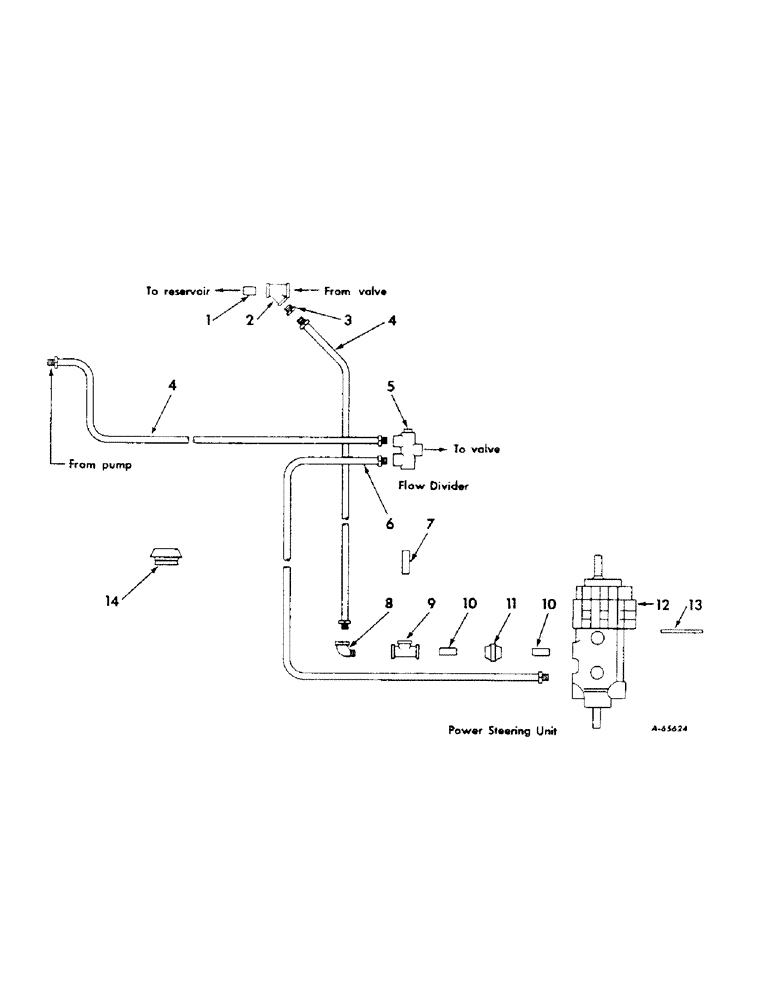

Запчасти Case IH 414 (199) - POWER STEERING, HYDRAULIC HOSES AND CONNECTIONS, USED WITH UNIT A (41) - STEERING

1

NLS

NO LONGER SERVICED

NIPPLE, 3/4 x 1-3/8 pipe

1шт.

2

664957R1

Y-BEND, 3/4 45 deg

1шт.

3

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

REDUCER, 3/4 x 1/2

1шт.

4

355565R92

HOSE

hydraulic

2шт.

5

664396R91

DIVIDER ASSY, flow, For components see list of parts under details of flow divider

1шт.

6

664956R91

HOSE, hydraulic

1шт.

7

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, flow divider and steering unit return

1шт.

8

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 90 deg street

1шт.

9

179614

TEE, 1/2 x 1/2 x 3/8

1шт.

10

120460

PIPE,Nipple, 1/2" NPT x 1 1/8", Brass

NIPPLE, 1/2 pipe

2шт.

11

664395R1

UNION, 1/2 hydraulic pump and flow divider

1шт.

12

365423R93

UNIT, power steering, For components see list of parts under details of power steering unit

1шт.

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY, no. 11 Woodruff

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

NUT, 1/2NF

1шт.

WASHER, 1/2 lock

1шт.

13

665821R1

LUG, power steering unit anchor

1шт.

BOLT W/NUT 1/2 X 1-1/4 MACH

1шт.

WASHER, 1/2 lock

1шт.

14

68837C1

CAP

power steering

1шт.
