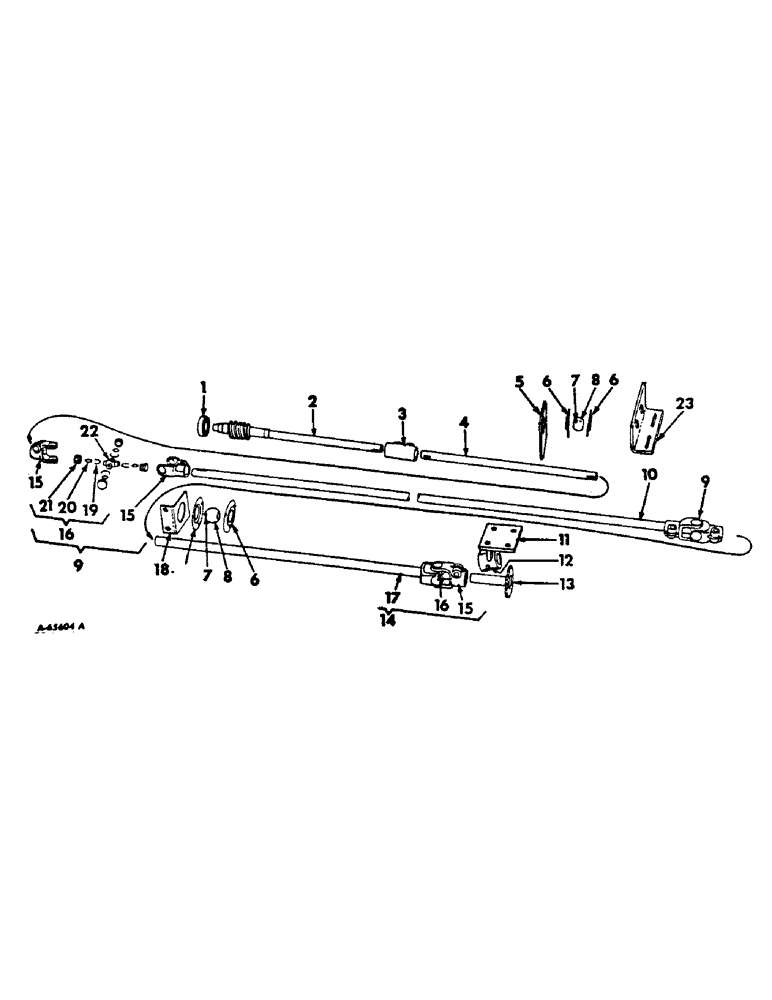

Запчасти Case IH 414 (182) - STEERING SHAFTS (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
ST678
BALL BEARING,25mm ID x 52mm OD x 15mm W
BEARING, steering worm
1шт.
2
664393R91
SHAFT AND WORM, steering
1шт.
103907
WOODRUFF KEY
KEY, no. 11 Woodruff
1шт.
69442D
NUT
3/4NF sltd jam
1шт.
PIN, 5/32 x 1-1/4 cotter
1шт.
3
666212R1
COUPLING, steering shaft
1шт.
BOLT W/NUT, 3/8 x 1-3/4 mach
2шт.
WASHER, 3/8 lock
2шт.
4
665935R1
SHAFT, steering worm extension, 416-501 thru 1550, 422-201 thru 3076
1шт.
103907
WOODRUFF KEY
KEY, no. 11 Woodruff
5шт.
5
202625C1
BRACKET, steering shaft bearing
1шт.
BOLT W/NUT, 3/8 x 1 mach
1шт.
WASHER, 3/8 lock
1шт.
WASHER, 13/32 x 3/4 x 16 ga
1шт.
6
661147F1
FLANGE, steering shaft bearing
4шт.
BOLT W/NUT, 1/4 x 3/4 crg
6шт.
WASHER, 1/4 lock
6шт.
7
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
NIPPLE, LUBE, 1/4"-28 x .52" lg
2шт.
8
661126R1
BEARING, steering shaft
2шт.
9
666239R91
JOINT, universal steering
2шт.
BOLT W/NUT, 3/8 x 1-3/4 mach
4шт.
WASHER, 3/8 lock
4шт.
10
665943R1
SHAFT, steering center
1шт.
41116D
KEY
7/8 x 3/16 round
1шт.
11
665937R1
BEARING, steering shaft
1шт.
BOLT W/NUT, 3/8 x 1 mach
2шт.
BOLT W/NUT, 3/8 x 1-1/4 mach
2шт.
WASHER, 3/8 lock
4шт.
12
87415
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
1шт.
13
665938R91
SPROCKET, lower steering
1шт.
14
666237R91
SHAFT, front steering
1шт.
BOLT W/NUT, 3/8 x 1-3/4 mach
1шт.
WASHER, 3/8 lock
1шт.
15
661682R1
YOKE
5шт.
16
150635R92
SPIDER
KIT, cross service, Replaces 661372R91
3шт.
17
666238R91
SHAFT AND YOKE
1шт.
18
665936R1
PLATE, platform steering shaft bearing rear
1шт.
BOLT W/NUT, 3/8 x 3/4 mach
1шт.
WASHER, 3/8 lock
1шт.
19
357426R1
RING
snap
12шт.
20
363320R1
WASHER
cork
12шт.
21
363319R1
BUSHING
12шт.
22
80711
LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg
FITTING, 1/8 65 deg angle lub
3шт.
23
202624C1
BASE, steering shaft bracket
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
1шт.
WASHER, 1/2 lock
1шт.
WASHER, 17/32 x 1 x 16 ga
1шт.
Выбрано товаров: 47
