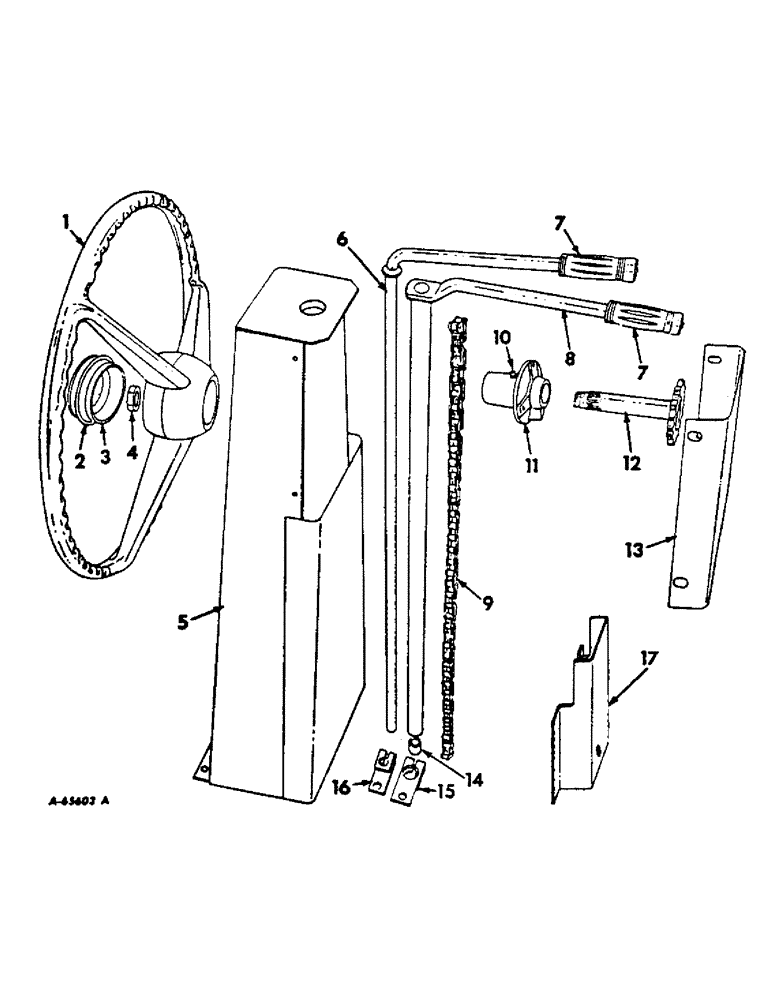

Запчасти Case IH 414 (181) - STEERING POST (41) - STEERING

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

68837C1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap seal

1шт.

4

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel hex

1шт.

5

665878R91

POST, steering, welded assy

1шт.

.

BOLT W/NUT, 3/8 x 1 mach

6шт.

.

WASHER, 3/8 lock

6шт.

6

665952R91

LEVER, hydraulic valve control upper, welded assy

1шт.

.

657102R1

WASHER

.65 x 1.20 x 7 ga

1шт.

7

662579R1

GRIP

hydraulic control lever

2шт.

8

665954R91

LEVER, hydraulic valve control lower, welded assy

1шт.

9

CHAIN, steering, Use 160 links of 1/2 pitch stock roller chain from a 10 ft. roll marked 1790D and one connecting link, 1301D

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 self tapping lubrication

1шт.

11

52RB

SUPPORT, steering wheel shaft

1шт.

.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

.

137631

PLATE

SCREW, 3/8 x 2-1/4 set

1шт.

.

WASHER, 3/8 lock

2шт.

.

WASHER, 13/32 x 3/4 x16 ga

2шт.

12

665940R91

SHAFT, steering wheel, welded assy

1шт.

13

671131R91

COVER, w/product graphic, steering post, Replaces 665884R11

1шт.

.

BOLT W/NUT, 1/4 x 1/2 mach

4шт.

.

WASHER, 1/4 lock

4шт.

.

WASHER, 9/32 x 5/8 x 16 ga

4шт.

.

557267R1

WASHER

15/32 x 1-3/4 x 11 ga

1шт.

14

461425R1

BUSHING, hydraulic control lever

1шт.

15

665958R1

ARM, drum and drive control lever

1шт.

.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

.

BOLT W/NUT, 1/2 x 2-3/4 mach

1шт.

.

WASHER, 1/2 lock

2шт.

.

16038R1

WASHER

17/32 x 1 x 11 ga

4шт.

16

665957R1

ARM, hydraulic control lever upper

1шт.

.

BOLT W/NUT, 1/2 x 2 mach

1шт.

.

WASHER, 1/2 lock

1шт.

.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

.

623907R1

SPACER,1" Pipe x 5/8"

steering shaft

1шт.

17

204234C1

RETAINER, wiring harness

1шт.
