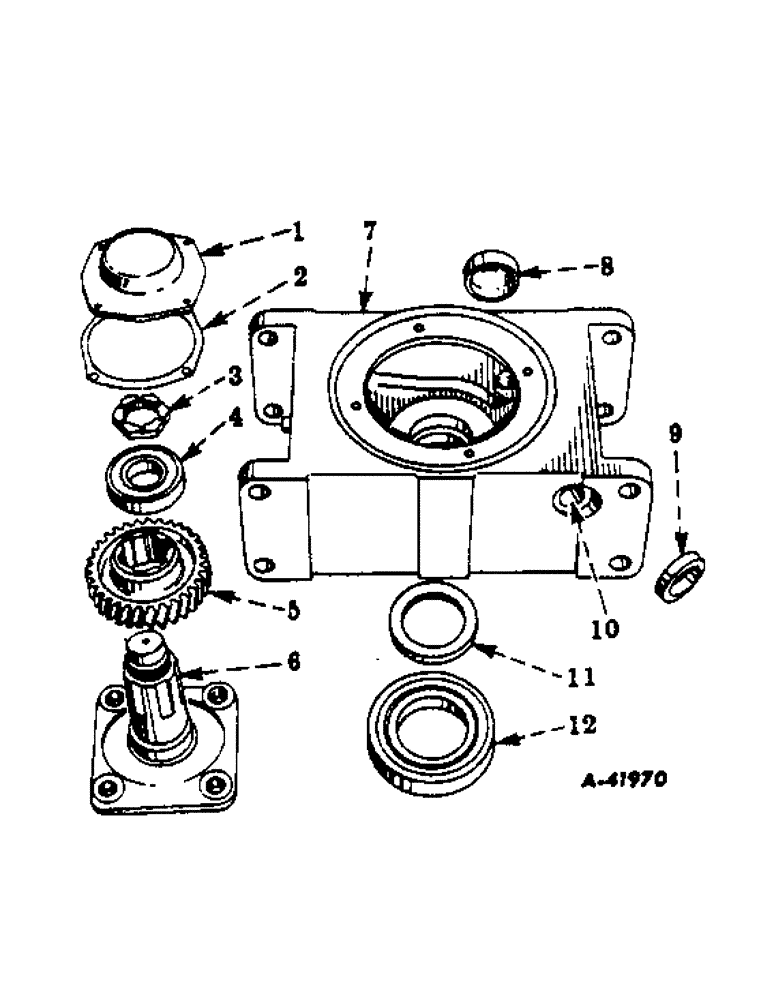

Запчасти Case IH 414 (129) - STEERING GEAR HOUSING (41) - STEERING

1

660596R1

CAGE, guide wheel pivot shaft bearing

1шт.

BOLT, 3/8 x 1 mach

4шт.

WASHER, 3/8 lock

4шт.

2

660601R1

GASKET

guide wheel pivot shaft bearing cage

1шт.

3

660600R1

NUT, 1-3NF guide wheel pivot shaft

1шт.

4

ST614

BALL BEARING,40 mm ID x 25 mm

BEARING, upper guide wheel pivot shaft

1шт.

5

660603R1

GEAR, steering worm

1шт.

6

660599R3

SHAFT, guide wheel pivot

1шт.

660602R2

BOLT, guide wheel pivot shaft

1шт.

670994R1

BOLT, guide wheel pivot stop, Used only w/fork, 670991R1

1шт.

PIN, 3/16 x 2-3/4 cotter

1шт.

SCREW, 3/4NF x 2 cap

3шт.

WASHER, 3/4 lock

1шт.

WASHER, 25/32 x 1-1/4 x 16 ga

1шт.

WASHER, 3/4 internal tooth lock

3шт.

7

660595R1

HOUSING, steering gear

1шт.

656527R1

SHIM

housing, .005, (Or as required)

10шт.

656529R1

SHIM

housing, .010, (Or as required)

10шт.

SCREW W/NUT, 5/8NF x 2-1/4 cap

8шт.

WASHER, 5/8 lock

8шт.

8

6660DA

BEARING CAP

steering worm bearing

1шт.

9

19707D

SEAL

OIL SEAL, worn shaft steering

1шт.

10

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

steering worm shaft

1шт.

11

661350R91

SEAL

OIL SEAL, guide wheel pivot shaft

1шт.

12

ST613

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

BEARING, lower guide wheel pivot shaft

1шт.
