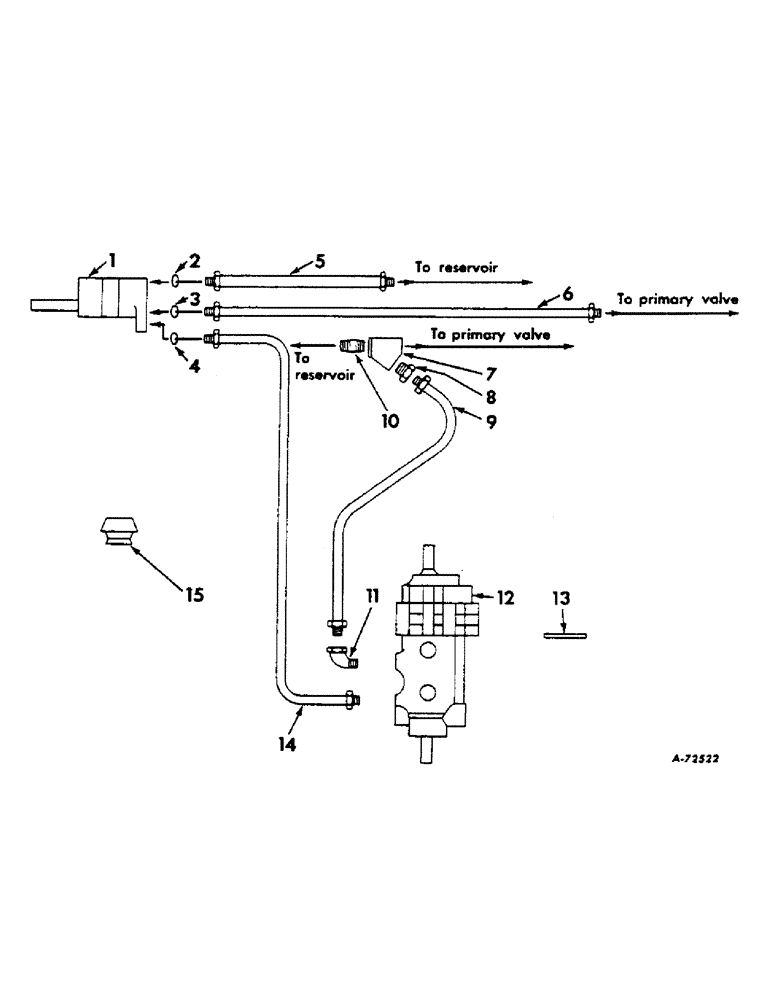

Запчасти Case IH 414 (085) - POWER STEERING ATTACHMENT, HYDRAULIC HOSES AND CONNECTIONS, USED WITH UNIT B (41) - STEERING

1

631143R92

PUMP

hydraulic (For components see list of parts under details of "Hydraulic Pump" in engine sections) (Not a part of power steering attachment)

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

667510R91

HOSE, hydraulic, Serial Range: pump-reservoir

1шт.

6

667511R91

HOSE, hydraulic, Serial Range: pump-valve

1шт.

7

664957R1

Y-BEND, 3/4" 45 degrees

1шт.

8

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

REDUCER, 3/4 x 1/2"

1шт.

9

355565R92

HOSE

hydraulic

1шт.

10

NLS

NO LONGER SERVICED

NIPPLE, 3/4 x 1-3/8" pipe

1шт.

11

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" 90 degree street

1шт.

12

365423R93

UNIT, power steering (For components see list of parts under details of "Power Steering Unit")

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

1шт.

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

NO. 11 WOODRUFF KEY

1шт.

1/2 NF NUT

1шт.

1/2" LOCK WASHER

1шт.

13

665821R1

LUG, power steering unit anchor

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

14

667512R91

HOSE, hydraulic pump to power steering unit

1шт.

15

378395R1

CAP

power steering

1шт.
