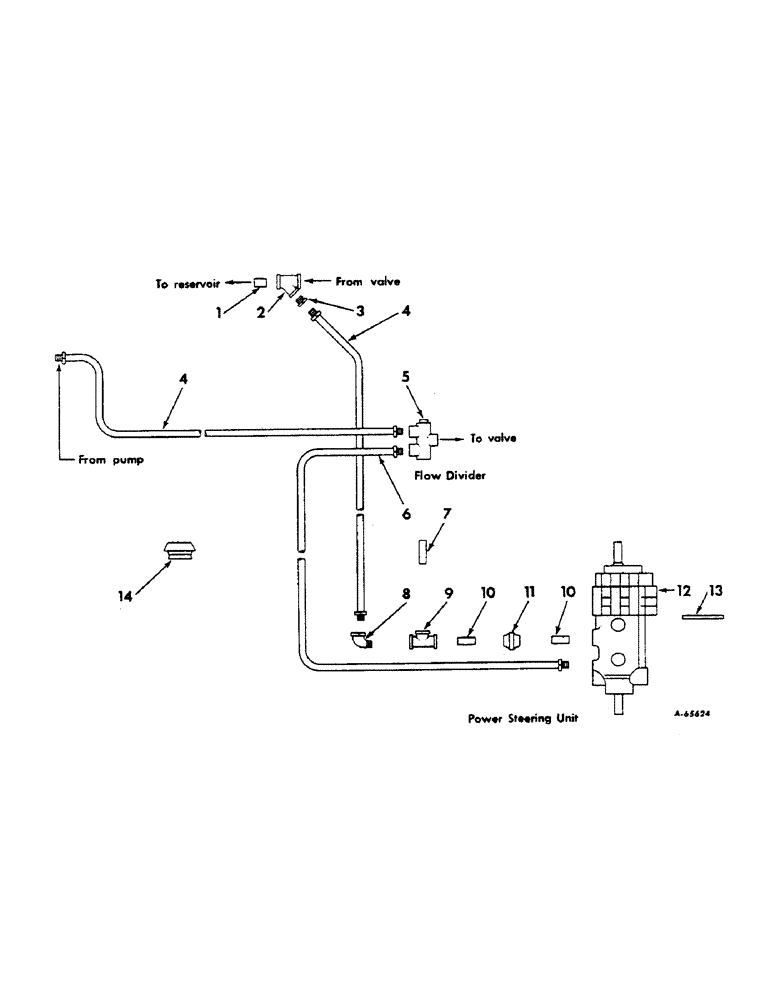

Запчасти Case IH 414 (084) - POWER STEERING ATTACHMENT, HYDRAULIC HOSES AND CONNECTIONS, USED WITH UNIT A (41) - STEERING

1

144613

LINE

NIPPLE, 3/4 x 1-3/8" pipe

1шт.

2

664957R1

Y-BEND, 3/4" 45 degrees

1шт.

3

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

REDUCER, 3/4 x 1/2"

1шт.

4

355565R92

HOSE

hydraulic

2шт.

5

664396R91

DIVIDER ASSEMBLY, flow (For components see list of parts under details of "Flow Divider")

1шт.

6

664956R91

HOSE, hydraulic

1шт.

7

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, flow divider and steering unit return

1шт.

8

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" 90 degree street

1шт.

9

179614

TEE, 1/2 x 1/2 x 3/8"

1шт.

10

120460

PIPE,Nipple, 1/2" NPT x 1 1/8", Brass

NIPPLE, 1/2" pipe

2шт.

11

664395R1

UNION, 1/2" hydraulic pump and flow divider

1шт.

12

365423R93

UNIT, power steering (For components see list of parts under details of "Power Steering Unit")

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

1шт.

120502

STOP

NO. 11 WOODRUFF KEY

1шт.

1/2NF NUT

1шт.

1/2" LOCK WASHER

1шт.

13

665821R1

LUG, power steering unit anchor

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

1шт.

1/2" LOCK WASHER

1шт.

14

378395R1

CAP

power steering

1шт.
