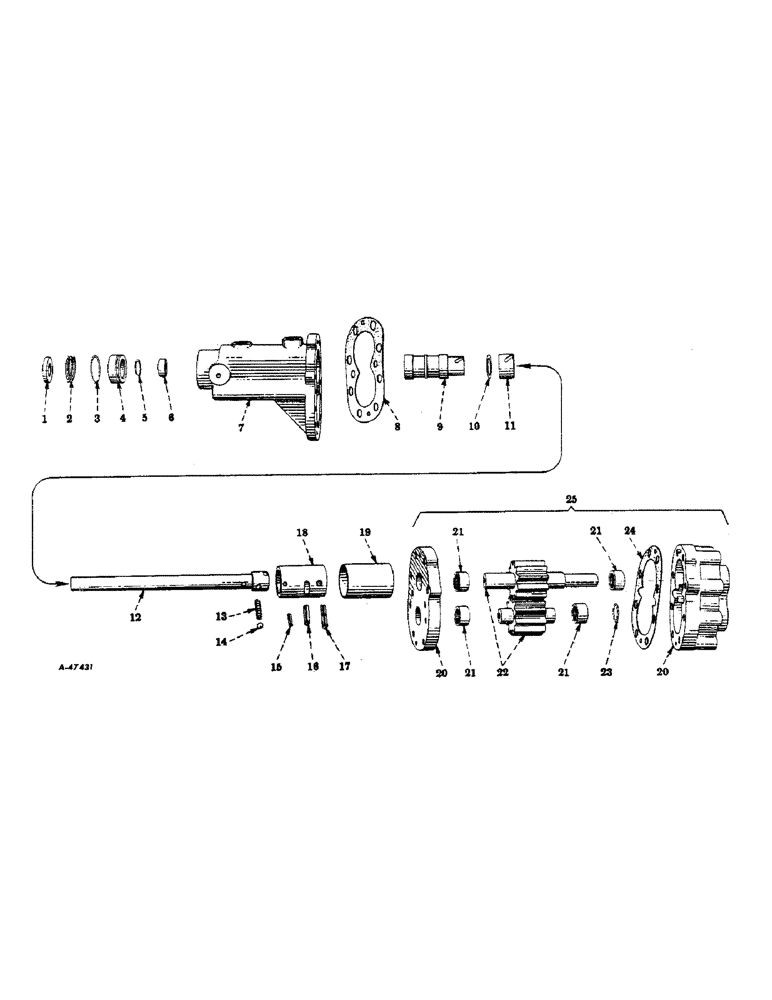

Запчасти Case IH 414 (082) - POWER STEERING ATTACHMENT, POWER STEERING UNIT (41) - STEERING

NSS

NOT SOLD SEPARAT

POWER STEERING UNIT (When ordered) (365423R93) (Used with units A and B)

1шт.

1

366601R91

OIL SEAL

OIL SEAL, control shaft

1шт.

2

366606R1

RING

bearing retainer snap

1шт.

3

366607R1

RING

O-RING, bearing retainer

1шт.

4

366600R1

BUSHING

RETAINER, bearing

1шт.

5

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

shaft control

1шт.

6

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, control shaft

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, valve (Not serviced separately, Order body, 367242R92)

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, 1/4" x 5/8", Slotted

2шт.

8

366609R1

GASKET

valve body

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE W/SLEEVE, spool (Not serviced separately, order body, 367242R92)

1шт.

10

366603R1

WASHER

valve spool spring

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE, spool (Not serviced separately, order body, 367242R92)

1шт.

12

366598R1

SHAFT

control

1шт.

13

366604R2

SPRING

centering

1шт.

14

16014R1

BALL

7/16" steel

2шт.

15

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

16

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, , in cam sleeves 3/8" x 1 1/2", Slotted

1шт.

17

366602R1

PIN

power gear and shaft roll

1шт.

18

366605R1

SLEEVE, cam

1шт.

19

366610R1

BUSHING

RETAINER, cam sleeve

1шт.

20

*

CUP W/BEARING PLATE, end (Not serviced separately, order ref. 25)

1шт.

141195

PIN

1/4 X 5/8" DOWEL PIN

2шт.

*

1/2 X 4" CAP SCREW

7шт.

366611R1

1/2 X 5" CAP SCREW

1шт.

21

550839R91

BEARING, NEEDLE

CUP, needle bearing end

4шт.

22

NSS

NOT SOLD SEPARAT

GEAR SET, idler and power (Not serviced separately, order ref. 25)

1шт.

23

350818R1

O-RING,0.984" ID x 0.139" Width

power gear shaft

1шт.

24

367245R1

SHIM,0.003" Thk

2шт.

24

367246R1

SHIM,0.005" Thk

1шт.

24

367247R1

SHIM,0.007" Thk

1шт.

25

367241R91

MOTOR ASSEMBLY, Composed of

1шт.

550839R91

BEARING, NEEDLE

BEARING

4шт.

NSS

NOT SOLD SEPARAT

CUP END W/BEARING PLATE

1шт.

NSS

NOT SOLD SEPARAT

GEAR SET

1шт.

367245R1

SHIM,0.003" Thk

GASKET

2шт.

367246R1

SHIM,0.005" Thk

GASKET

1шт.

367247R1

SHIM,0.007" Thk

GASKET

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1шт.

NSS

NOT SOLD SEPARAT

PLATE

1шт.

141195

PIN

2шт.

367242R92

BODY ASSEMBLY, valve, Composed of

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

VALVE

1шт.

366603R1

WASHER

1шт.
