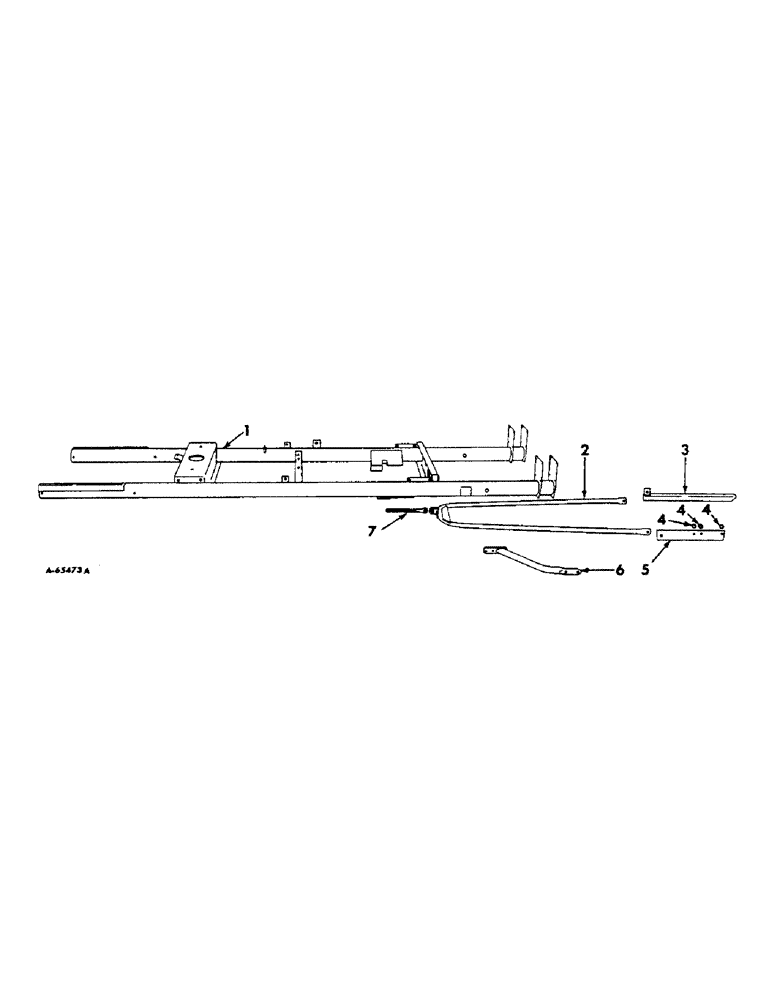

Запчасти Case IH 414 (134) - MAIN FRAME AND RADIUS RODS (39) - FRAMES AND BALLASTING

1

665800R91

FRAME, main, welded assy

1шт.

2

666032R92

ROD, radius, welded assy

2шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

26209B

AXLE PIN

PIN, 5/8 x 1-13/16 dld headed

4шт.

720723R1

PIN, 7/8 x 2-1/4 dld headed

2шт.

3

666036R91

SUPPORT, radius rod inner left, welded assy

1шт.

3

666037R91

SUPPORT, radius rod inner right, welded assy

1шт.

BOLT W/NUT, 3/8 x 1 mach

5шт.

WASHER, 3/8 lock

5шт.

4

588289R1

SPACER, radius rod outer support

6шт.

5

666038R91

SUPPORT, radius rod outer left, welded assy

1шт.

5

666039R91

SUPPORT, radius rod outer right, welded assy

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

BOLT W/NUT, 1/2 x 1 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

3шт.

WASHER, 3/8 lock

2шт.

WASHER, 1/2 lock

4шт.

6

665823R11

STRUT, main frame, welded assy

2шт.

SCREW, 1/2 x 1-1/4 cap

2шт.

SCREW, 1/2 x 1-1/2 cap

2шт.

SCREW, 5/8 x 1-1/4 cap

4шт.

WASHER, 1/2 lock

4шт.

WASHER, 5/8 lock

4шт.

7

656258R1

SCREW, radius rod adjusting

2шт.

NUT, 1-8 hex.

4шт.
