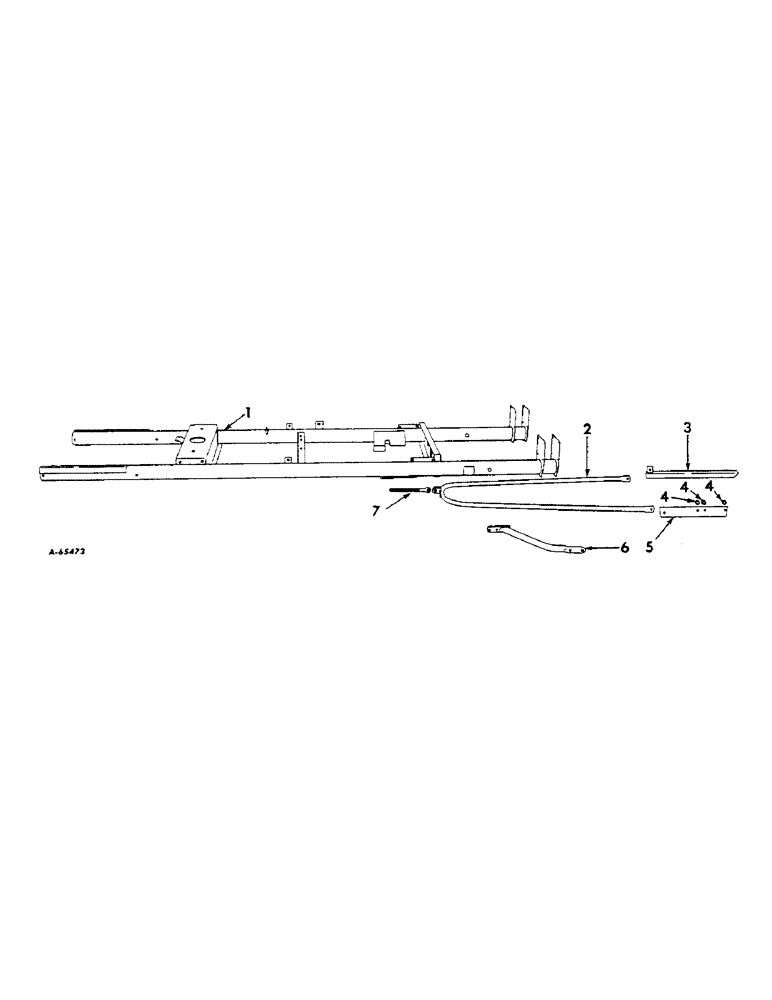

Запчасти Case IH 414 (033[1]) - MAIN FRAME AND RADIUS RODS (39) - FRAMES AND BALLASTING

1

665800R91

FRAME, main (Welded assembly)

1шт.

2

666032R91

ROD, radius (Welded assembly)

2шт.

3/16 X 1" COTTER PIN

4шт.

1/4 X 1-1/2" COTTER PIN

2шт.

26209B

AXLE PIN

5/8 X 1-13/116" DLD HEADED PIN

4шт.

720723R1

7/8 X 2-1/4" DLD HEADED PIN

2шт.

3

666036R91

SUPPORT, radius rod inner left (Welded assembly)

1шт.

3

666037R91

SUPPORT, radius rod inner right (Welded assembly)

1шт.

3/8 X 1" MACH BOLT W/NUTS

5шт.

3/8" LOCK WASHER

5шт.

4

588289R1

SPACER, radius rod outer support

6шт.

5

666038R91

SUPPORT, radius rod outer left (Welded assembly)

1шт.

5

666039R91

SUPPORT, radius rod outer right (Welded assembly)

1шт.

3/8 X 1" MACH BOLT W/NUT

2шт.

1/2 X 1" MACH BOLT W/NUT

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

3шт.

3/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

4шт.

6

665823R11

STRUT, main frame (Welded assembly)

2шт.

1/2 X 1-1/4" CAPSCREW

4шт.

5/8 X 1-1/4" CAPSCREW

4шт.

1/2" LOCK WASHER

4шт.

5/8" LOCK WASHER

4шт.

7

656258R1

SCREW, radius rod adjusting

2шт.

1" NUT

4шт.
