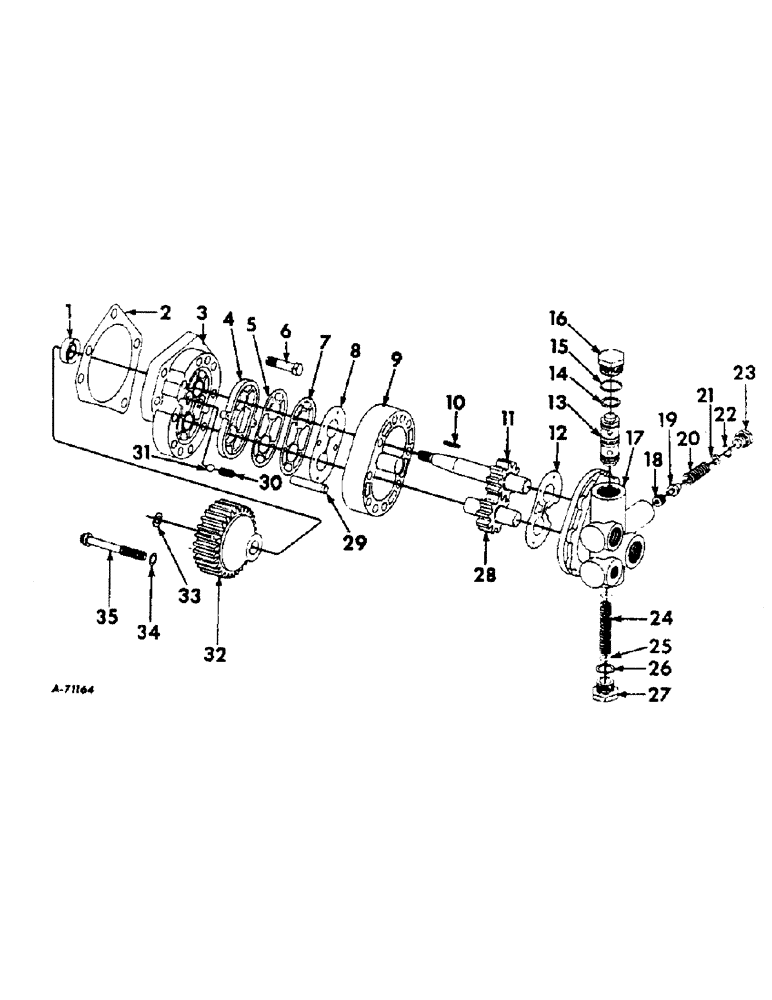

Запчасти Case IH 414 (391) - HYDRAULIC PUMP, COTTON PICKERS EQUIPPED WITH POWER STEERING (35) - HYDRAULIC SYSTEMS

631143R92

PUMP

ASSY, hydraulic, Includes ref. nos. 1 thru 5, 7 thru 31, 35 and 36

1шт.

1

632855R1

SEAL, shaft

1шт.

2

632851R1

GASKET

flange

1шт.

3

632848R91

PLATE ASSY, front

1шт.

4

632834R1

SEAL

diaphragm

1шт.

5

632838R1

PROTECTOR

GASKET, protector

1шт.

6

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting

2шт.

7

632836R1

GASKET

back-up

1шт.

8

632835R1

DIAPHRAGM

1шт.

9

632853R1

BODY

1шт.

10

628965R1

KEY

1шт.

11

632850R91

GEAR W/SHAFT AND SNAP RING ASSY, drive

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8LH

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

12

632839R1

PLATE

thrust

1шт.

13

632844R91

SPOOL AND SLEEVE ASSY

1шт.

14

310943R1

RING

O-RING, 1/16 x 11/16

3шт.

15

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

3/32 x 7/8

1шт.

16

632857R1

PLUG, 1-14NF hex.

1шт.

17

632847R91

PLATE ASSY, back

1шт.

18

632840R91

SEAT W/INSERT ASSY

1шт.

19

632841R91

POPPET W/PIN ASSY

1шт.

20

632843R1

SPRING

relief valve

1шт.

21

180375R1

SHIM, relief valve

1шт.

22

355966R1

O-RING,0.424" ID x 0.103" Width

3/32 x 7/16

1шт.

23

632842R1

PLUG, 9/16 hex.

1шт.

24

632846R1

SPRING, spool

1шт.

25

632845R1

DISC

1шт.

26

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8

1шт.

27

632858R1

PLUG, 3/4-16NF hex.

1шт.

28

632837R91

GEAR W/SHAFT AND SNAPPING ASSY, idler

1шт.

29

632856R1

PIN, 5/16 x 1-1/2 dowel

2шт.

30

583465R1

SPRING

check

2шт.

31

17007R1

BALL

7/32 steel

2шт.

32

631180R1

GEAR

hydraulic pump

1шт.

33

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

34

180375R1

WASHER, copper crush

8шт.

35

632873R1

BOLT, 5/16 x 2-1/2 12 point hex-hd

8шт.
