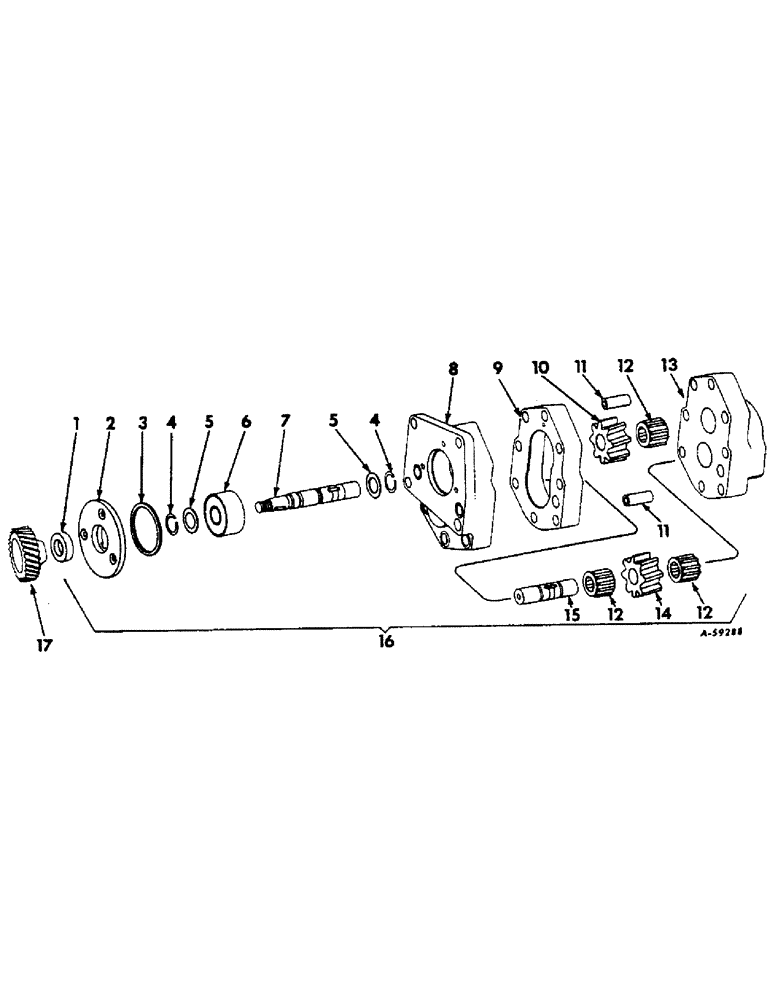

Запчасти Case IH 414 (245) - HYDRAULIC PUMP, WEBSTER ELECTRIC (35) - HYDRAULIC SYSTEMS

1

111710R91

SEAL

OIL SEAL, drive shaft

1шт.

2

573654R1

PLATE, pilot

1шт.

SCREW, no. 10 x 5/8 f-hd mach

3шт.

3

279015R1

GASKET, pilot plate

1шт.

4

276575R1

RING, SNAP

RING, retaining

2шт.

5

276569R1

WASHER

retaining

2шт.

6

8521T

BALL BEARING, drive shaft

1шт.

7

573663R1

SHAFT, drive

1шт.

KEY, 1/8 x 1/2 no. 3 Woodruff

1шт.

KEY, 1/8 x 3/4 not. 7 Woodruff

1шт.

8

573660R1

BODY, pump

1шт.

SCREW, 5/16 x 2-1/8 cap

2шт.

SCREW, 5/16 x 2-1/4 hex-soc-hd mach

2шт.

WASHER, 5/16 lock

2шт.

9

573658R1

PLATE, gear

1шт.

10

573693R1

GEAR, drive

1шт.

11

573657R1

PIN, dowel

2шт.

12

276574R91

NEEDLE BEARING

NEEDLE BEARING, drive and idler

3шт.

13

310843R91

COVER ASSY, pump

1шт.

SCREW, 1/4 x 2-1/4 cap

2шт.

SCREW, 5/16 x 5-1/8 cap

2шт.

WASHER, 1/4 lock

2шт.

WASHER, 5/16 lock

2шт.

14

573694R1

GEAR, idler

1шт.

15

573661R1

SHAFT, idler

1шт.

16

309599R91

PUMP ASSY, hydraulic, optional with 272609R91

1шт.

SCREW, 3/8 x 1-3/4 cap

3шт.

SCREW, 3/8 x 6-1/2 cap

1шт.

WASHER, 3/8 external-tooth lock

3шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, 13/32 x 13/16 x 16 ga. cop.

1шт.

17

272551R1

GEAR, hydraulic pump

1шт.

NUT, 3/8

1шт.

WASHER, 3/8 internal-external-tooth lock

1шт.

WASHER, 17/32 x 1-1/2 x 16 ga

1шт.

272552R1

GASKET

hydraulic pump

1шт.
