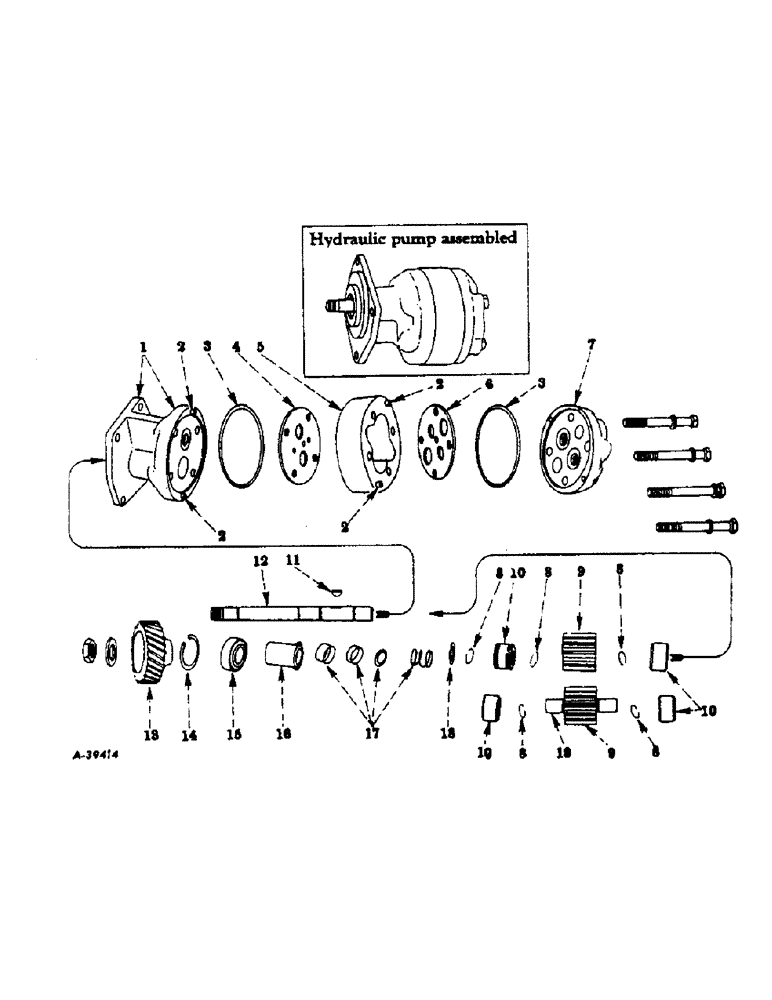

Запчасти Case IH 414 (244) - HYDRAULIC PUMP, HYDRECO PRODUCT (35) - HYDRAULIC SYSTEMS

272609R91

PUMP ASSY, hydraulic, optional with 309599R91

1шт.

SCREW, 3/8 x 1-3/4 cap

3шт.

SCREW, 3/8 x 3 cap

1шт.

WASHER, 3/8 external-tooth lock

4шт.

1

272993R1

COVER, hydraulic pump adapter

1шт.

2

272843R1

DOWEL, pump cover and housing

4шт.

3

259246R1

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

3-7/8 x 4-1/8 x 1/8

2шт.

4

272837R1

PLATE, wear

1шт.

5

272992R1

HOUSING, pump

1шт.

6

272997R1

PLATE, wear

1шт.

7

272994R1

COVER,and

1шт.

SCREW, 7/16NF x 3-1/4 cap

4шт.

WASHER, 15/32 x 13/16 x16 ga

4шт.

8

272834R1

RING, snap

5шт.

9

272995R1

GEAR, drive

2шт.

10

272923R91

BEARING

pump roller

4шт.

11

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, drive shaft, no. 5 Woodruff

1шт.

12

272998R1

SHAFT, pump drive

1шт.

13

272551R1

GEAR, pump

1шт.

NUT, 3/8

1шт.

WASHER, 3/8 internal-external-tooth lock

1шт.

WASHER, 17/32 x 1-1/2 x 16 ga

1шт.

14

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, , brg 1.375", Int, #137

1шт.

15

272924R91

BEARING

BALL BEARING, drive shaft rear

1шт.

16

272996R1

SEAT

pump seal

1шт.

17

273027R91

PACKAGE

SEAL ASSY, pump

1шт.

18

350515R1

WASHER

pump, 21/32 x 1 x 16 ga

1шт.

19

272999R1

SHAFT, driver

1шт.

272552R1

GASKET

hydraulic pump

1шт.

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, , cam plate #62, .480" Dia, E-Type

1шт.

272839R1

GASKET

SHIM, hydraulic pump, .001

1шт.

272840R1

SHIM

hydraulic pump, .002

1шт.
