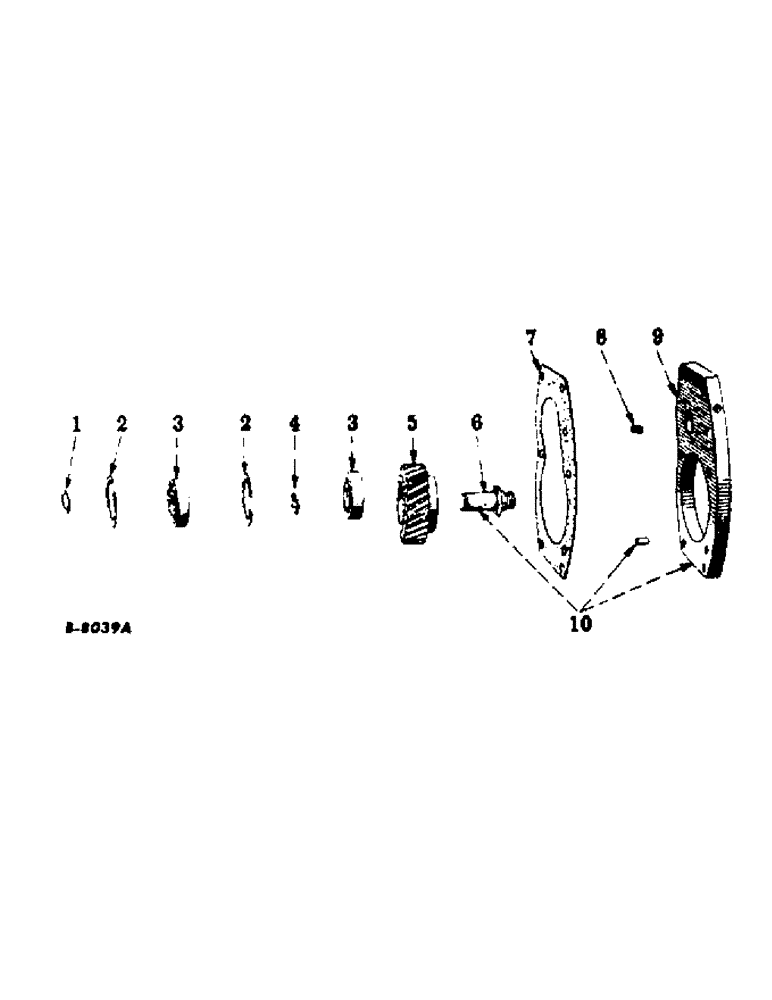

Запчасти Case IH 414 (243) - HYDRAULIC PUMP ADAPTER AND IDLER GEAR PARTS (35) - HYDRAULIC SYSTEMS

1

356729R1

SNAP RING, hydraulic pump idler gear HU

1шт.

2

356730R1

SNAP RING, hydraulic pump idler gear

2шт.

3

ST207

BEARING, BALL

BALL BEARING, idler gear

2шт.

4

356728R1

SPACER, hydraulic pump idler gear

1шт.

5

356284R1

GEAR, hydraulic pump idler

1шт.

6

356286R1

SHAFT, hydraulic pump idler gear

1шт.

7

356287R1

GASKET

hydraulic pump adapter

1шт.

8

141214

HANDLE

PIN, 5/16 x 7/16 dowel

2шт.

9

356283R1

ADAPTER, hydraulic pump, Order 356283R11, ref no. 10

1шт.

SCREW, 3/8 x 1-1/8 cap

1шт.

SCREW, 3/8 x 1-1/2 cap

1шт.

WASHER, 3/8 external-tooth lock

2шт.

10

356283R11

ADAPTER W/SHAFT AND PINS ASSY, hydraulic pump

1шт.
