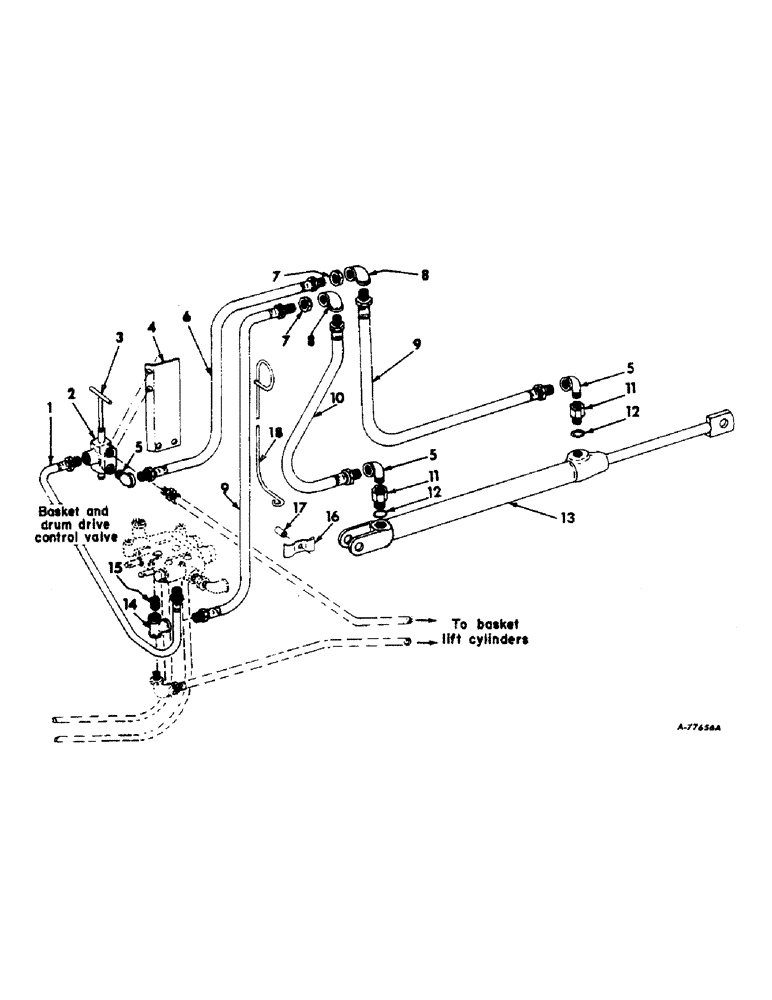

Запчасти Case IH 414 (211) - BASKET DISTRIBUTOR ATTACHMENT, HYDRAULIC LINES AND CONNECTIONS (35) - HYDRAULIC SYSTEMS

1

662525R91

HOSE, selector valve to hydraulic valve

1шт.

2

661285R91

VALVE

ASSY, selector, For components see list of parts under details of selector valve

1шт.

BOLT, 5/16 x 1/2 mach

2шт.

WASHER, 5/16 lock

2шт.

3

204183C1

HANDLE ASSY, selector valve

1шт.

NUT, 3/8

1шт.

4

669433R1

BRACKET, selector valve

1шт.

5

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 x 90 deg street

3шт.

6

669429R91

HOSE, cylinder to valve short

1шт.

7

669624R1

NUT, 1/2 lock

2шт.

8

119098

ELBOW,90 Degree, 1/2" NPT

1/2 90 deg pipe

2шт.

9

366074R91

HOSE

cylinder to elbow and, Serial Range: elbow-valve

2шт.

10

364367R1

HOSE, Serial Range: cylinder-elbow

1шт.

11

461182R1

CONNECTOR, ELEC

ADAPTER, hydraulic hose

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

2шт.

13

669423R93

CYLINDER ASSY, hydraulic, For components see list of parts under details of HYD cylinder

1шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

23289R1

PIN, 1 x 2-3/4 std-hd 1" x 2 3/4"

1шт.

932388R1

PIN,1" x 3 1/2"

1 x 3-1/2 std-hd

1шт.

14

138105

TEE,1/2" NPT, Fem

1/2 pipe

1шт.

15

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, 1/2 x 1-1/2 pipe

1шт.

16

515030R1

CLAMP

CLIP, hydraulic hose

2шт.

17

65881H

SPACER,1/4" Pipe x 1 1/4"

hose clip

1шт.

17573R1

BOLT, 5/16 x 2-1/2 mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

668037R1

SUPPORT

BRACKET, hydraulic hose support

1шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q1500

WASHER

11/32 x 1-1/4 x 16 ga

1шт.
