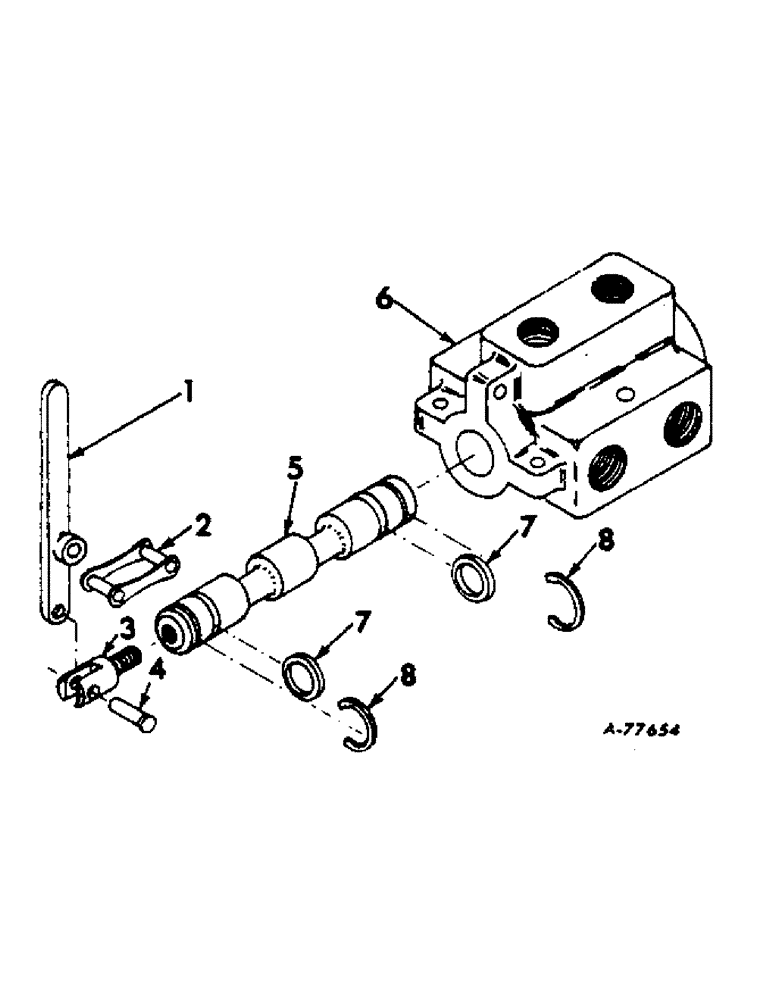

Запчасти Case IH 414 (209) - HYDRAULIC DRUM CONTROL ATTACHMENT, MANUAL CONTROL VALVE (35) - HYDRAULIC SYSTEMS

669070R91

VALVE ASSY, manual control, Consists of all parts listed below

1шт.

1

669548R1

HANDLE, valve

1шт.

2

567007R91

DRAG LINK

LINK, handle

1шт.

PIN, 1/16 x 2 cotter

1шт.

3

669547R1

ADAPTER

handle

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

4

669546R1

PIN, handle

1шт.

PIN, 3/32 x 2 C-Z cotter

1шт.

5

SPOOL, valve, Not serviced separately order valve assy

1шт.

6

HOUSING, valve, Not serviced separately order valve assy

1шт.

7

669544R1

SEALING RING

SEAL, spool

2шт.

8

669545R1

RING, spool retainer

2шт.
