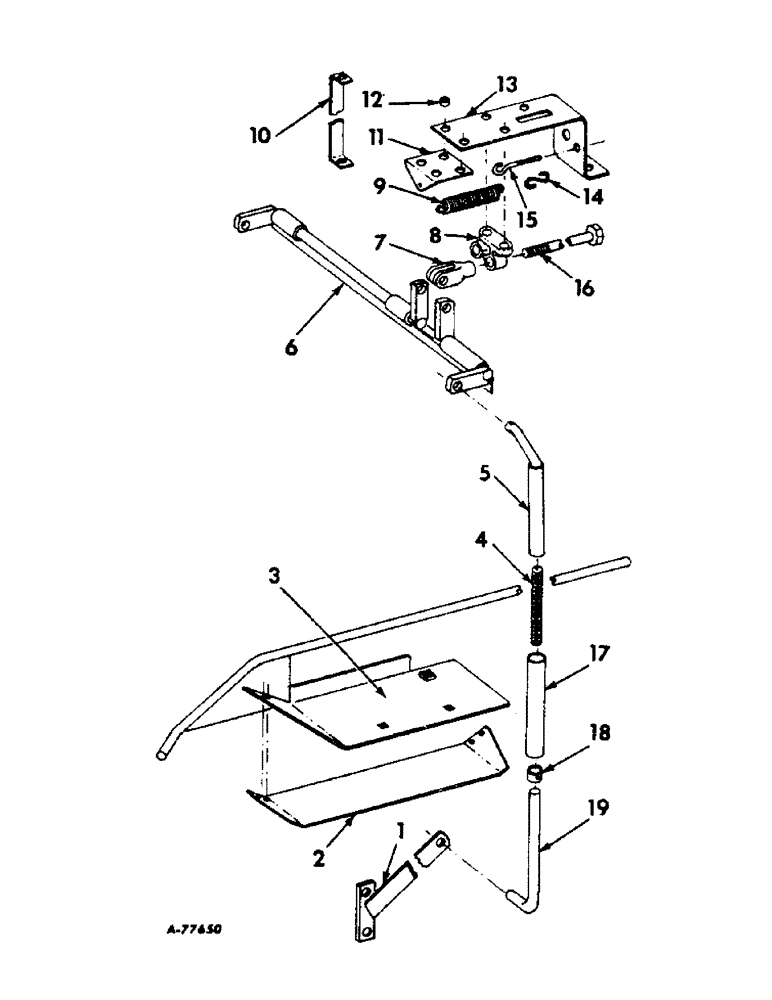

Запчасти Case IH 414 (205) - HYDRAULIC DRUM CONTROL ATTACHMENT, CONTROL VALVE ACTUATING PARTS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
669045R91
BRACKET
ASSY, offset left
2шт.
1
669046R91
BRACKET
ASSY, offset right
2шт.
BOLT, 5/16 x 3/4 mach
8шт.
WASHER, 5/16 lock
8шт.
2
669060R1
PLATE, runner wear wide
4шт.
2
669061R1
PLATE, runner wear narrow
4шт.
BOLT W/NUT, 1/2 x 1-1/4 crg
4шт.
BOLT W/NUT, 1/2 x 1-3/4 crg
4шт.
WASHER, 1/2 lock
8шт.
3
673908R1
PLATE
SHOE ASSY, plant lifter left
2шт.
3
202102C1
LARGE PLATE
SHOE ASSY, plant lifter right
2шт.
BOLT W/NUT, 1/2 x 1-1/4 crg
4шт.
658907R1
BOLT, 1/2 x 2-1/4 mach
4шт.
SCREW, 1/2 x 4 sq-hd ov-pt set
2шт.
WASHER, 1/2 lock
4шт.
4
523677R1
SPRING
push rod
4шт.
5
669052R91
ROD ASSY, upper push left
2шт.
5
669053R91
ROD ASSY, upper push right
2шт.
PIN, 1/8 x 1 cotter
2шт.
6
669026R91
ROCKSHAFT ASSY, drum height control left
1шт.
6
669027R91
ROCKSHAFT ASSY, drum height control right
1шт.
BOLT W/NUT 3/8 X 3/4 MACH
1шт.
BOLT W/NUT, 3/8 x 1 mach
2шт.
WASHER, 3/8 lock
3шт.
7
63229D
CLEVIS
4шт.
PIN, 3/16 x 1 cotter
4шт.
D3373
DISC
PIN, 1/2 x 1-1/2 std-hd
4шт.
8
669062R1
GUIDE, valve lifter
2шт.
9
626206R1
SPRING
valve lever
2шт.
10
669068R1
SUPPORT, oil tank right inner
1шт.
11
669059R1
ANCHOR, spring
2шт.
12
669572R1
SPACER
valve bracket
8шт.
13
669033R1
BRACKET, hydraulic valve
2шт.
BOLT, 3/8 x 1 mach
8шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
4шт.
BOLT, 1/2 x 2 mach
2шт.
NUT, 1/2 jam
4шт.
WASHER, 3/8 lock
8шт.
WASHER, 1/2 lock
4шт.
14
512749R1
HOOK
spring
2шт.
15
345330R1
BOLT, spring eye
2шт.
NUT, 1/4
4шт.
16
669067R1
BOLT, valve lifter
4шт.
NUT, 1/2 jam
4шт.
17
669058R1
TUBE,30.2 mm OD, 406.5 mm Length
spring cover
4шт.
18
516595R1
COLLAR
lower push rod lock
4шт.
85-15012
SET SCREW,Sq Hd, 1/2"-13 x 3/4"
SCREW, 1/2 x 3/4 sq-hd cup point set
4шт.
19
669057R1
ROD
lower push, 422 cotton picker only
4шт.
19
669075R1
ROD
lower push, 416 cotton picker only
4шт.
PIN, 1/8 x 1 cotter
4шт.
Выбрано товаров: 50
