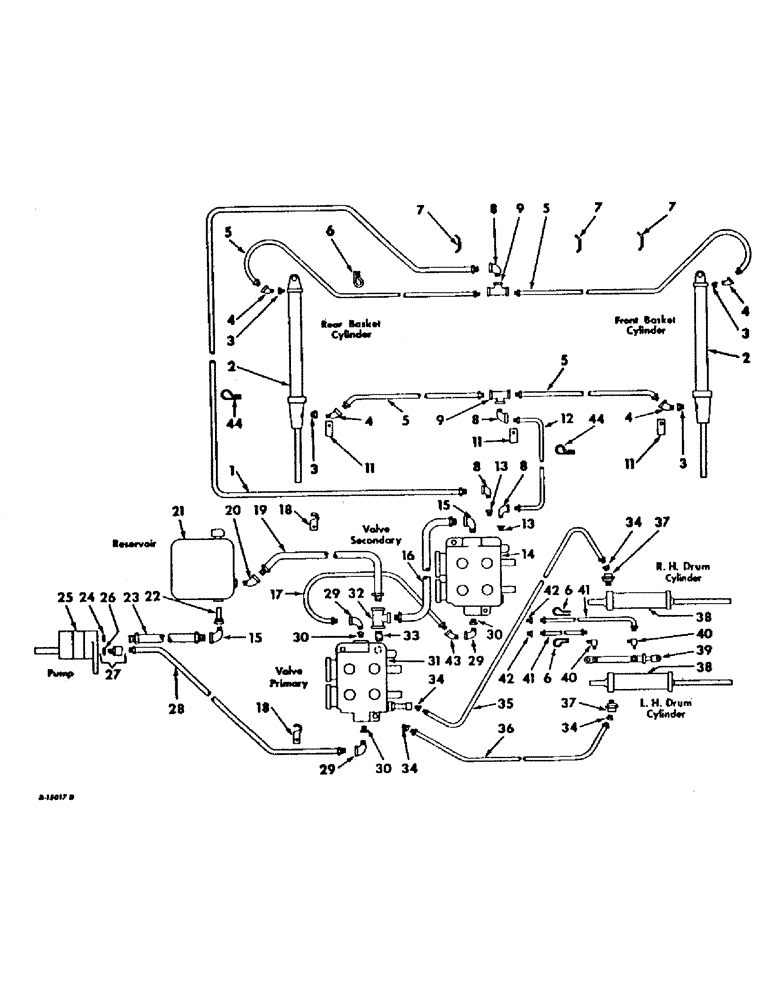

Запчасти Case IH 414 (194) - HYDRAULIC HOSES AND CONNECTIONS (35) - HYDRAULIC SYSTEMS

1

666374R91

HOSE, valve to RH tee hydraulic

1шт.

2

665231R91

CYLINDER ASSY, basket hydraulic, 416-501 thru 1550, 422-501 thru 3076, For components see list of parts under details of basket hydraulic cylinder

2шт.

2

665273R91

CYLINDER ASSY, basket hydraulic, For components see list of parts under details of basket hydraulic cylinder, 416-1551 and above, 422-3077 and above

2шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

28855B

HEADED PIN,7/8" x 2"

PIN, 7/8 x 2 std-hd

2шт.

557270R1

WASHER

29/32 x 1-1/4 x 11 ga

4шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1/2 to 1/4 reducing, in cylinders

4шт.

4

444054

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

1/4 45 deg, in cylinders

4шт.

5

665459R91

HOSE, basket hydraulic cylinder

4шт.

6

27388D

CLIP, hydraulic hose

3шт.

7

665461R1

CLIP

hydraulic hose

3шт.

BOLT W/NUT, 5/16 x 1-3/4 mach

3шт.

WASHER, 5/16 lock

3шт.

8

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

3/8 90 deg street

4шт.

9

218233

HYD CONNECTOR

TEE, 3/8 x 1/4 x 1/4 pipe

2шт.

10

NOT USED

1шт.

11

661260R1

CLIP, hose

3шт.

BOLT W/NUT, 5/16 x 1-1/2 mach

3шт.

WASHER, 5/16 lock

3шт.

12

666373R91

HOSE, valve to LH tee hydraulic

1шт.

13

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 to 3/8 reducing

2шт.

14

666215R91

VALVE, basket and drum drive control, For components see list of parts under details of basket and drum drive control valve

1шт.

BOLT W/NUT, 3/8 x 2-1/2 mach

3шт.

WASHER, 3/8 lock

3шт.

15

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 x 90 deg street

2шт.

16

358475R91

HOSE, hydraulic

1шт.

17

363737R91

HOSE, hydraulic

1шт.

18

665226R1

CLIP, hose

2шт.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

WASHER, 3/8 lock

2шт.

19

643744R91

HOSE, hydraulic

1шт.

20

140798

ELBOW,45 Degree, 3/4" NPT Street

3/4 45 deg street

1шт.

21

666364R91

RESERVOIR, hydraulic oil, For components see list of parts under details of hydraulic oil reservoir

1шт.

22

666640R92

STRAINER, oil reservoir

1шт.

23

667510R91

HOSE, hydraulic, 416-501 thru 1550

1шт.

23

669582R91

HOSE, hydraulic, 416-1551 and up, 422-3077 and up, 422-501 thru 3076

1шт.

24

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used with 665526R1

1шт.

25

588371R91

PUMP, hydraulic, Used with C-263 gas and LP gas engines and D-282 diesel engines

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

27

203996C91

ADAPTER

W/O RING, coupling, Used with C-263 gas and LP gas engines and D-282 diesel engine

1шт.

28

664938R91

HOSE, hydraulic, 416-501 thru 1550

1шт.

28

667511R91

HOSE, hydraulic, 416-1551 and up, 422-3077 and up, 422-501 thru 3076

1шт.

29

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 90 deg

3шт.

30

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

BUSHING, 3/4 to 1/2 pipe reducing

3шт.

31

666214R91

VALVE, drum hydraulic, For components see list of parts under details of drum HYD valve

1шт.

BOLT W/NUT, 3/8 x 2-1/2 mach

3шт.

WASHER, 3/8 lock

3шт.

32

125988

TEE,3/4" NPT, Fem

3/4 pipe

1шт.

33

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pipe

1шт.

34

144051

TUBE,1/2" NPT Male x 1/4" NPT Fem

1/2 x 1/4 reducing

4шт.

35

369643R91

HOSE, valve to RH drum cylinder

1шт.

36

360394R91

HOSE ASSY.

HOSE, valve to LH drum cylinder

1шт.

37

575834R91

VALVE

retarding

2шт.

103575

PIN,#1 x 1 1/4", Tapered

1 x 1-1/4 taper

2шт.

38

15135EDX

CYLINDER, drum lift, For components see list of parts under details of picker drum hydraulic cylinder

1шт.

PIN, 1/4 x 1-1/4 cotter

2шт.

590277R1

PIN, 7/8 x 1-3/4 std-hd

2шт.

39

381818R91

CYLINDER

ASSY, drum drive, For components see list of parts under details of drum drive CYL

1шт.

PIN, 1/8 x 1 cotter

2шт.

114788

AXLE PIN

PIN, 5/8 x 1-23/32 rod end

2шт.

40

666220R91

SWIVEL, right angle, 416-501 thru 1695, 422-501 thru 3166

2шт.

41

666372R91

HOSE, valve to cylinder, 416-501 thru 1695, 422-501 thru 3166

2шт.

41

202599C1

HOSE

valve to cylinder, 416-1696 and above, 422-3167 and above

2шт.

42

116385

BUSHING,1/2" NPT Male x 1/8" NPT Fem

1/2 x 1/8 reducing

2шт.

43

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 45 deg street

1шт.

44

56277D

CLIP, hydraulic hose

2шт.
