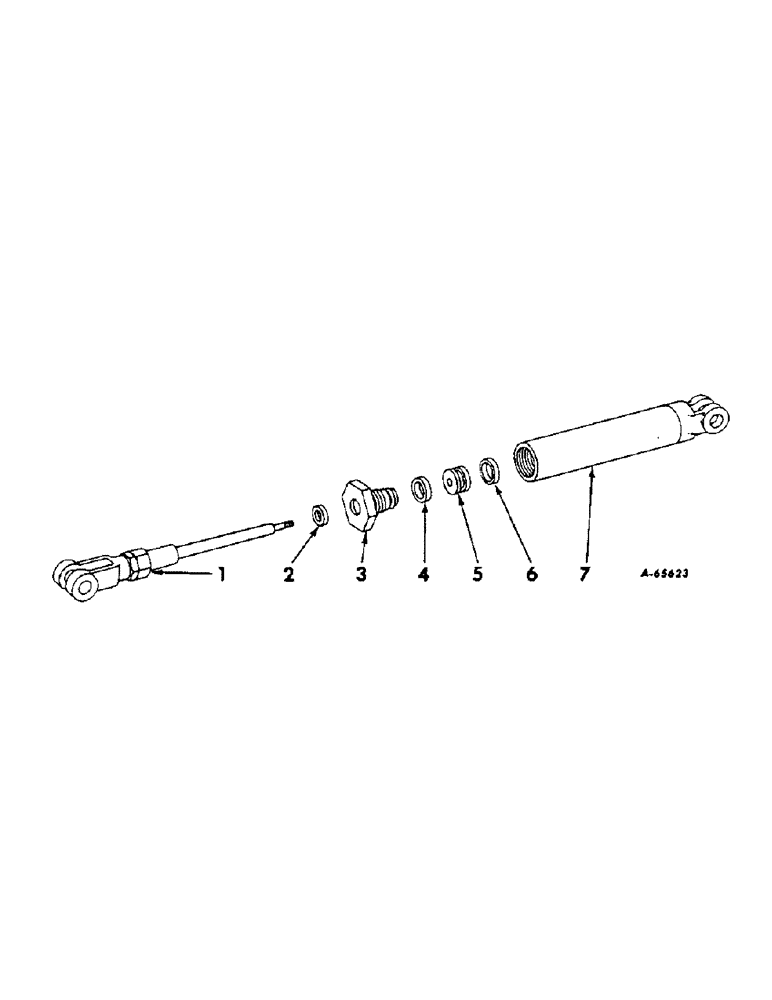

Запчасти Case IH 414 (192) - DRUM DRIVE CYLINDER, 416, 501 THROUGH 1695, 422, 501 THROUGH 3166 (35) - HYDRAULIC SYSTEMS

666221R91

CYLINDER

ASSY, drum drive, Consists of all parts listed below

1шт.

1

574781R91

ROD ASSY, piston

1шт.

NUT, 5/16

1шт.

WASHER, 5/16 lock

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

3

574779R1

BEARING

1шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

5

574780R1

PISTON

1шт.

6

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

7

666222R91

BARREL ASSY

1шт.
