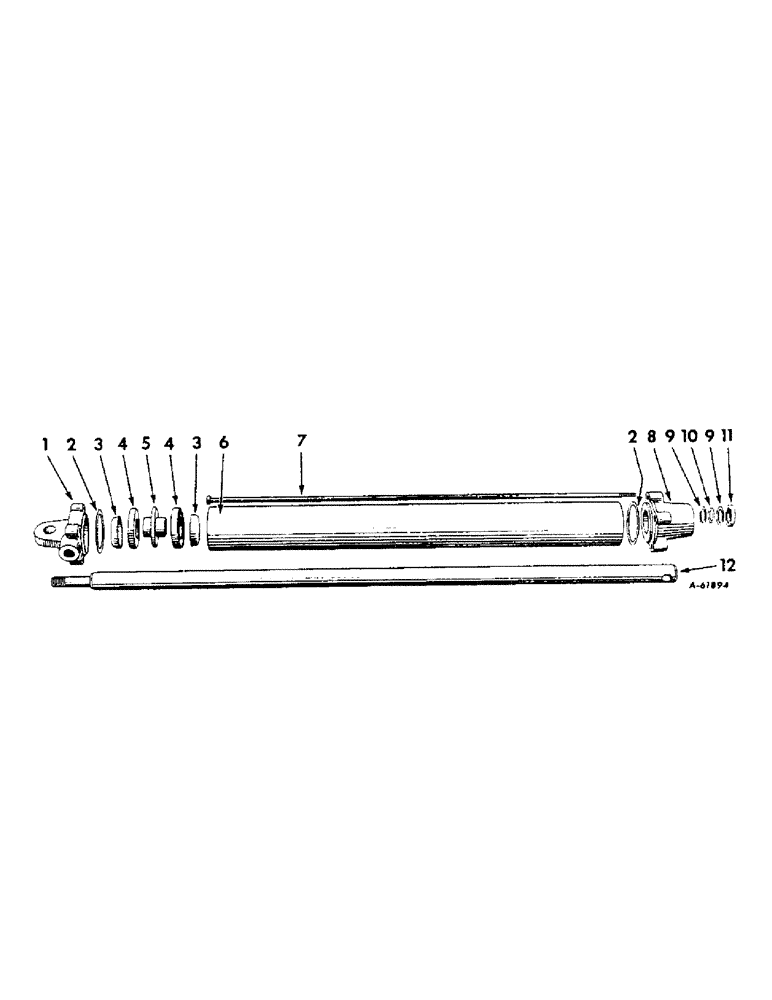

Запчасти Case IH 414 (190) - BASKET HYDRAULIC CYLINDER, 416, 501 THROUGH 1550, 422, 501 THROUGH 3076 (35) - HYDRAULIC SYSTEMS

665231R91

CYLINDER ASSY, basket hydraulic, Consists of all parts listed below

2шт.

1

665234R1

HEAD, cylinder rear

2шт.

2

15109EA

SHIM

GASKET, cylinder head

4шт.

3

450664R2

RETAINER

piston cup

4шт.

4

450665R2

SEAL

piston

4шт.

5

665233R1

PISTON

2шт.

6

15523E

TUBE, cylinder 3.01" ID, 20.172" Length

2шт.

7

20474R1

BOLT, 3/8 x 23 mach

8шт.

NUT, 3/8

8шт.

WASHER, 3/8 lock

8шт.

8

665235R1

HEAD, front cylinder

2шт.

9

665236R1

RING

seal

4шт.

10

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

2шт.

11

225834R91

OIL SEAL, piston

2шт.

12

665232R1

ROD, piston

2шт.

385020R1

NUT

3/4NF

2шт.

WASHER, 25/32 x 1-1/4 x 16 ga

8шт.
