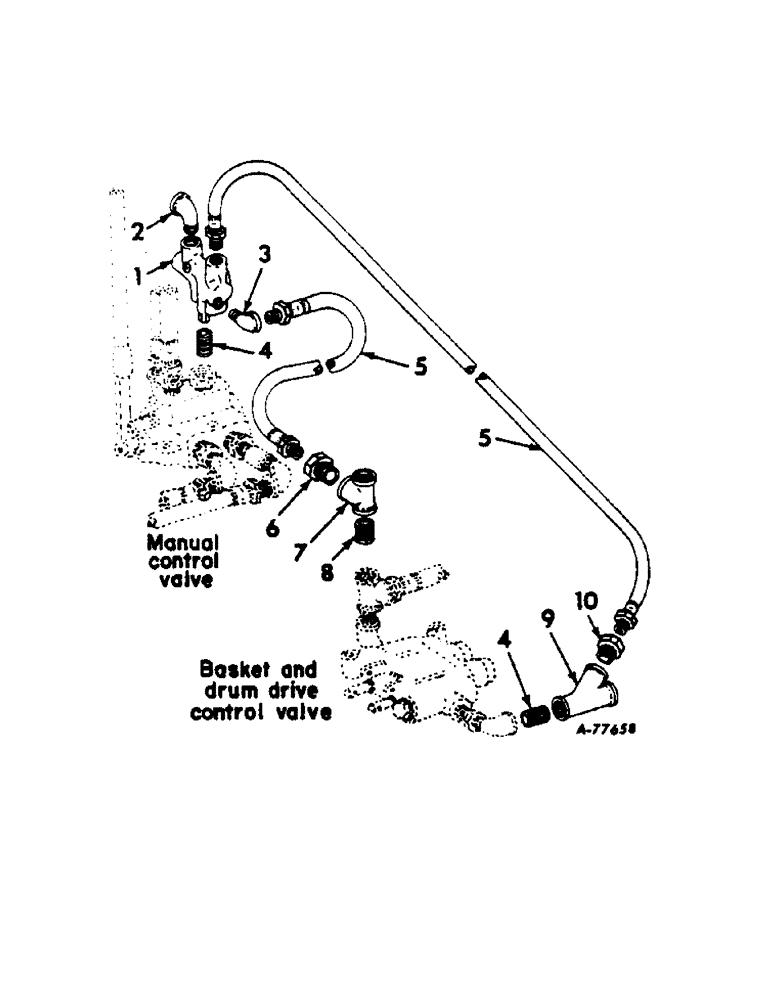

Запчасти Case IH 414 (100) - BASKET DISTRIBUTOR COMPLETING PACKAGE, HYDRAULIC LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS

1

664396R91

DIVIDER ASSY, flow (For components see list of parts under details of "Flow Divider")

1шт.

2

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" 90 degree street

1шт.

3

120063

BOLT,Hex, M8 x 80, 8.8

3/8" 90 degree street

1шт.

4

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, 1/2 x 1-1/2" pipe

2шт.

5

664956R91

HOSE, hydraulic

2шт.

6

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING, 3/4 x 3/8" reducing pipe

1шт.

7

125988

TEE,3/4" NPT, Fem

3/4" pipe

1шт.

8

221-214

PIPE,Nipple, 3/4" NPT x 1 3/4"

NIPPLE, 3/4 x 1-3/4" pipe

1шт.

9

669073R1

Y, 1/2" 45 degree pipe

1шт.

10

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8" reducing pipe

1шт.
