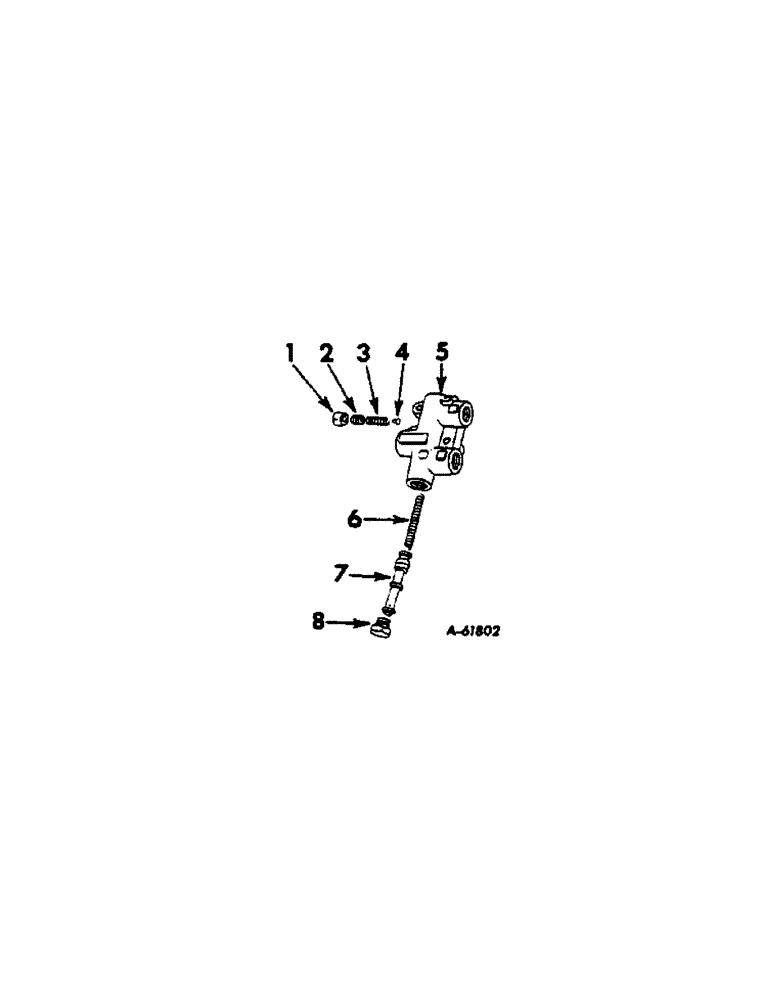

Запчасти Case IH 414 (100[1]) - FLOW DIVIDER (35) - HYDRAULIC SYSTEMS

664396R91

DIVIDER ASSY, flow (Consists of all the parts listed below)

1шт.

1

570947R1

CAP, valve

1шт.

2

9400950

SCREW, 1/2NF x 5/8" slt-headless set

1шт.

3

570949R1

SPRING, valve

1шт.

4

570946R1

VALVE

1шт.

5

HOUSING (Not serviced separately order flow divider)

1шт.

6

570435R1

SPRING

1шт.

7

570432R1

PISTON

1шт.

8

570433R1

PLUG

1шт.
