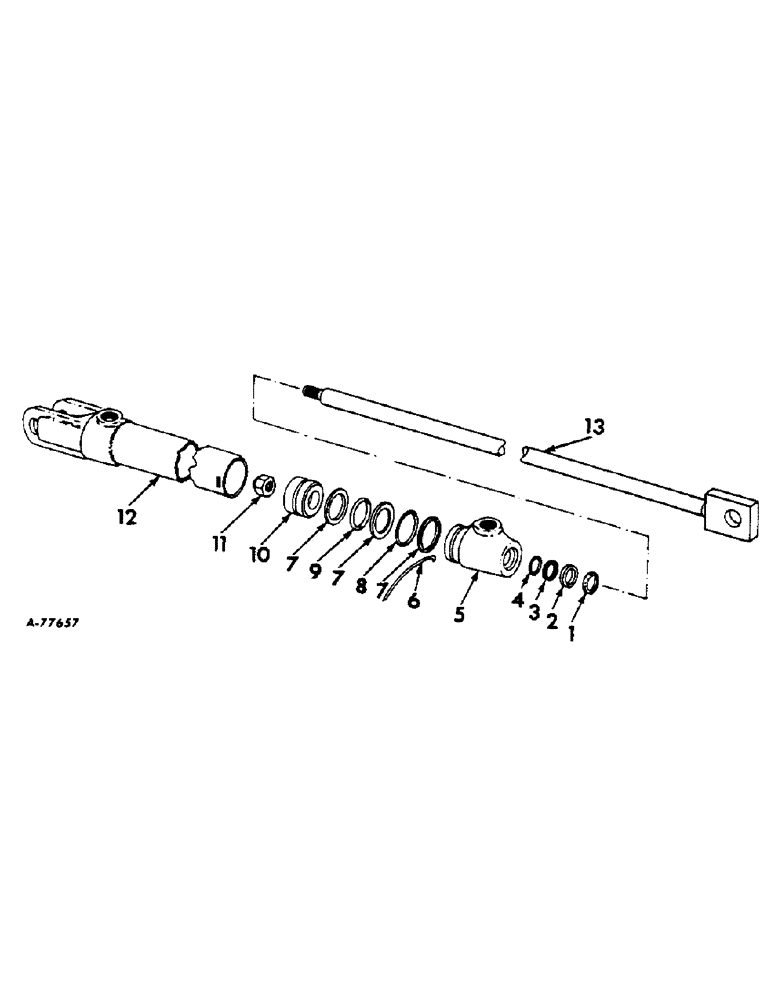

Запчасти Case IH 414 (099) - BASKET DISTRIBUTOR ATTACHMENT, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

669423R91

CYLINDER ASSY, hydraulic (Consists of all parts listed below)

1шт.

1

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

2

354049R1

RETAINER

piston rod dust seal

1шт.

3

383669R1

BACK-UP RING

hydraulic cylinder gland backup

1шт.

4

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

hydraulic cylinder gland

1шт.

5

381803R11

HEAD

ASSY, rod end

1шт.

6

461180R1

RETAINER

cylinder end

1шт.

7

381850R1

WASHER

piston head backup

3шт.

8

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

rod end head

1шт.

9

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

piston head

1шт.

10

381849R1

HEAD

piston

1шт.

11

385054R1

NUT

lock

1шт.

12

381837R91

TUBE

ASSY, cylinder

1шт.

13

669531R91

ROD ASSY, piston

1шт.

386686R91

GASKET KIT

KIT, hydraulic cylinder service, Consists of

1шт.

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

354049R1

RETAINER

1шт.

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL

1шт.

381850R1

WASHER

1шт.
