Запчасти Case IH 414 (099[1]) - SELECTOR VALVE (35) - HYDRAULIC SYSTEMS

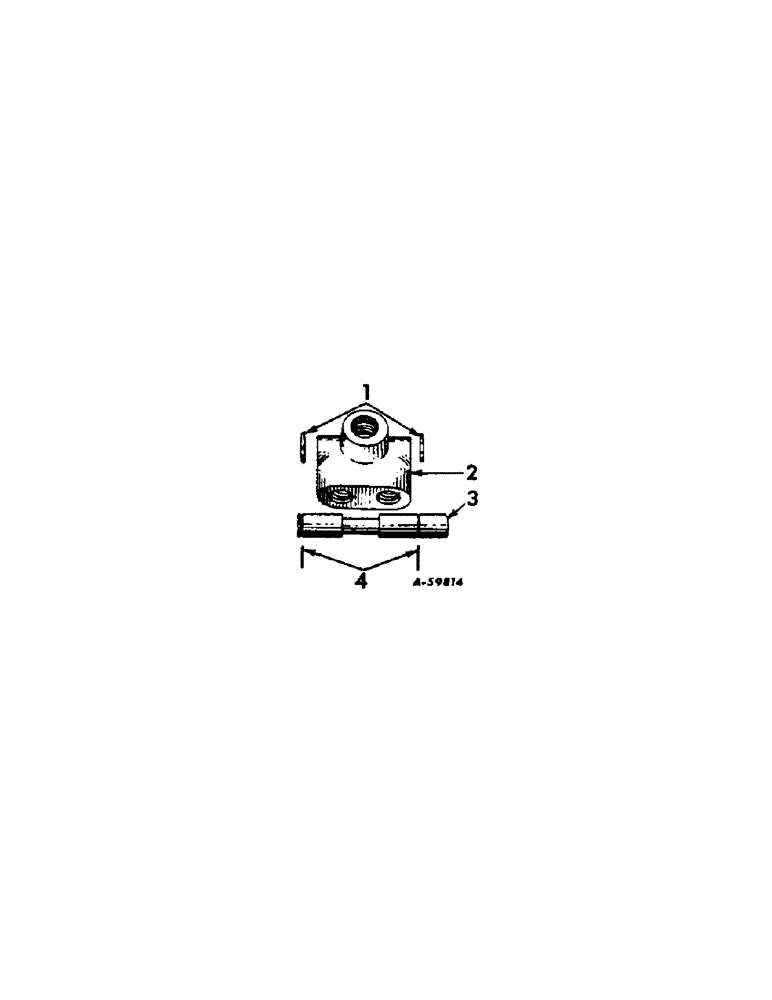

Схема запчастей Case IH 414 - (099[1]) - SELECTOR VALVE (35) - HYDRAULIC SYSTEMS
2
3
4
1

Артикул

Название

Примечание

Количество

661285R91

VALVE

ASSY, selector (Consists of all parts listed below)

1шт.

5/16 X 1/2" MACH BOLT

2шт.

5/16" LOCK WASHER

2шт.

1

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

spool

2шт.

2

HOUSING, valve (Not serviced separately order selector valve assy)

1шт.

3

661651R1

SPOOL

valve

1шт.

4

661652R1

SNAP RING,#75, Ext

Spool #75, Ext

2шт.

Выбрано товаров: 7
