Запчасти Case IH 414 (098) - BASKET DISTRIBUTOR ATTACHMENT, HYDRAULIC LINES AND CONNECTIONS (35) - HYDRAULIC SYSTEMS

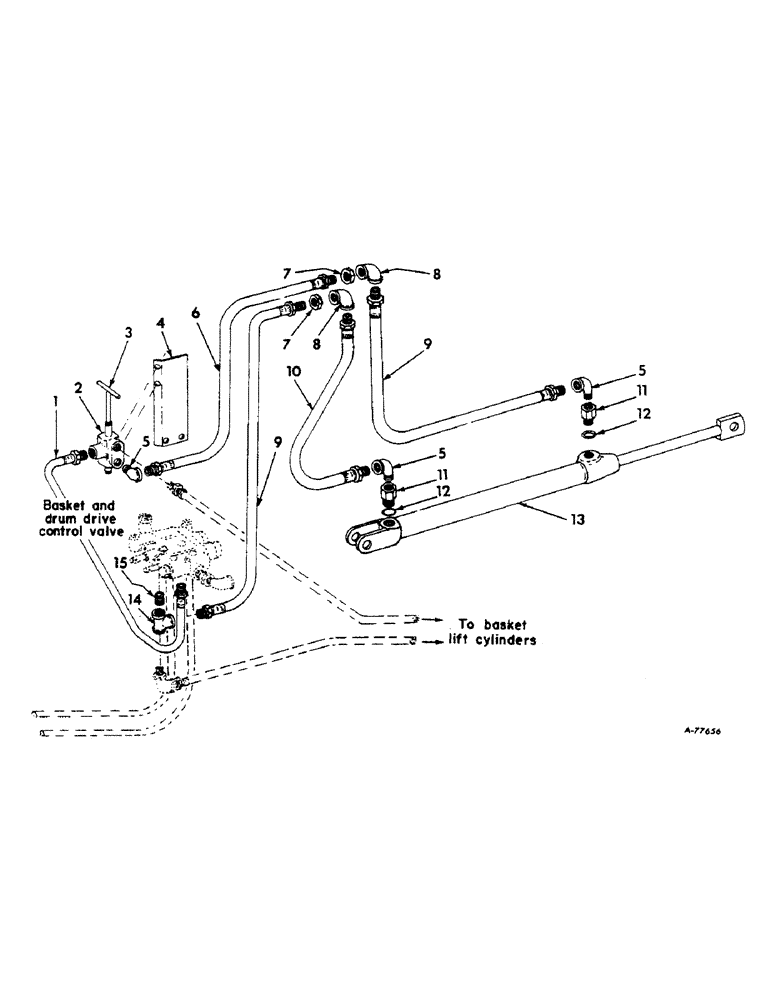

Схема запчастей Case IH 414 - (098) - BASKET DISTRIBUTOR ATTACHMENT, HYDRAULIC LINES AND CONNECTIONS (35) - HYDRAULIC SYSTEMS
5
1
2
4
12
15
5
14
13
12
5
11
8
9
7
10
11
6
8
9
3
7

Артикул

Название

Примечание

Количество

1

662525R91

HOSE, selector valve to hydraulic valve

1шт.

2

661285R91

VALVE

ASSY, selector (For components see list of parts under details of "Selector Valve")

1шт.

5/16 X 3/4" MACH BOLT

2шт.

5/16" LOCK WASHER

2шт.

3

669430R91

HANDLE ASSY, selector valve

1шт.

3/8" NUT

1шт.

4

669433R1

BRACKET, selector valve

1шт.

5

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" 90 degree street

3шт.

6

669429R91

HOSE, cylinder to valve short

1шт.

7

669624R1

NUT, 1/2" lock

2шт.

8

119098

ELBOW,90 Degree, 1/2" NPT

1/2" 90 degree pipe

2шт.

9

366074R91

HOSE

cylinder to elbow and, Serial Range: elbow-valve

2шт.

10

364367R91

HOSE ASSY.

HOSE, Serial Range: cylinder-elbow

1шт.

11

461182R1

CONNECTOR, ELEC

ADAPTER, hydraulic hose

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

2шт.

13

669423R91

CYLINDER ASSY, hydraulic (For components see list of parts under details of hydraulic cylinder)

1шт.

1/4 X 1-1/2" COTTER PIN

2шт.

733253R1

1 X 2" STD-HD PIN

1шт.

932386R1

1 X 3-1/2" STD-HD PIN

1шт.

14

138105

TEE,1/2" NPT, Fem

1/2" pipe

1шт.

15

141504

PIPE,Nipple, 1/2" NPT x 1 1/2"

NIPPLE, 1/2 x 1-1/2" pipe

1шт.

Выбрано товаров: 21
