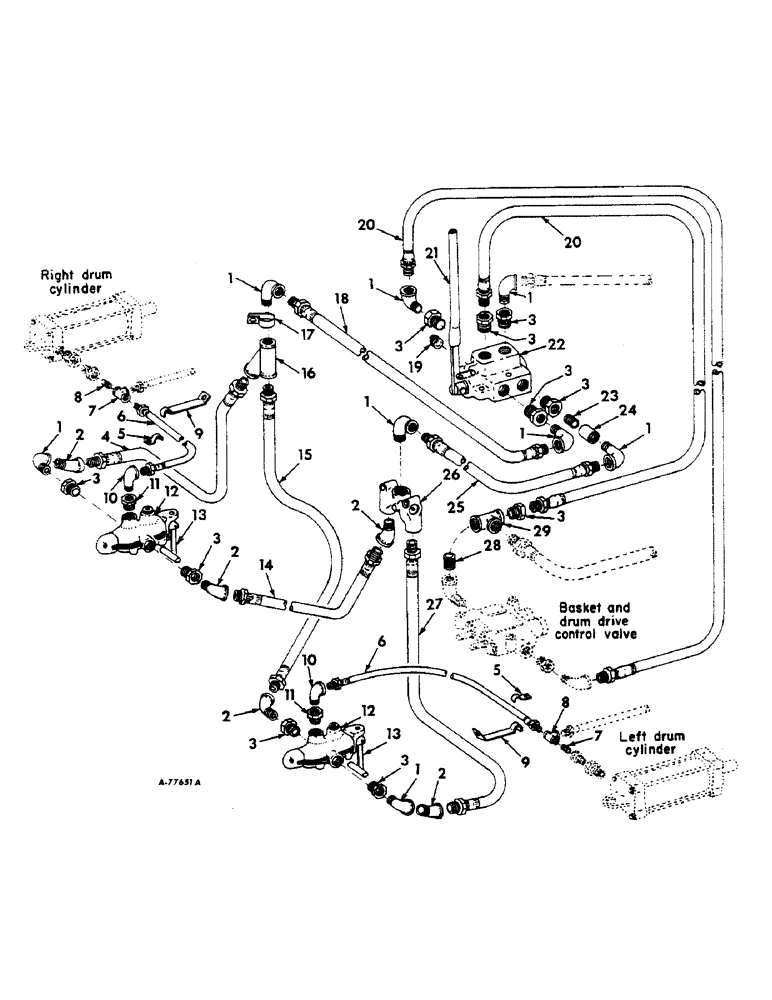

Запчасти Case IH 414 (093) - HYDRAULIC DRUM CONTROL ATTACHMENT, HYDRAULIC LINES AND CONNECTIONS (35) - HYDRAULIC SYSTEMS

1

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2" 90 degree street

8шт.

2

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2" 45 degree street

5шт.

3

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

BUSHING, 3/4 x 1/2" reducing pipe

10шт.

4

368194R91

HOSE

return from right drum (420 picker only)

1шт.

4

362213R92

HOSE, return from right drum (414 picker only)

1шт.

5

27388D

CLIP, hose

2шт.

6

669071R91

HOSE, drum control valves to drum lift cylinders

2шт.

7

105417

TEE,1/4" NPT, Fem

1/4" pipe

2шт.

8

NLS

NO LONGER SERVICED

NIPPLE, 1/4 x 7/8" pipe (105405)

2шт.

9

669072R1

CLIP, drum lift hose

2шт.

10

105423

ELBOW,90 Degree, 1/4" NPT Street

1/4" 90 degree street

2шт.

11

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

1/2 x 1/4" reducing

2шт.

12

669069R91

VALVE ASSY, drum height control (For components see list of parts

1шт.

under details of "Drum Height Control Valve")

2шт.

13

669050R1

HANDLE, valve

2шт.

14

368194R91

HOSE

supply to right drum (420 picker only)

1шт.

14

355534R92

HOSE

supply to right drum (414 picker only)

1шт.

15

368194R91

HOSE

return from left drum (420 picker only)

1шт.

15

365399R92

HOSE, return from left drum (414 picker only)

1шт.

16

669073R1

Y, 1/2 x 45 degree pipe

1шт.

17

188755R1

WASHER

CLAMP, Serial Range: Y-platform

1шт.

3/8 X 1-1/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

18

362213R91

HOSE ASSY.

HOSE, Y to manual valve

1шт.

19

217-442

PLUG,3/4" - 14

3/4" sq-hd pipe

1шт.

20

355513R92

HOSE

manual control valve to basket control valve

2шт.

21

669063R1

HANDLE, valve lever

1шт.

22

669070R91

VALVE ASSY, manual control (For components see list of parts

1шт.

under details of "Manual Control Valve")

1шт.

3/8 X 3" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

23

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8" pipe

1шт.

24

187397

COUPLING,1/2" NPT, Fem

1/2" pipe

1шт.

25

362213R91

HOSE ASSY.

HOSE, flow equalizer to manual valve

1шт.

26

669074R91

EQUALIZER, hydraulic oil flow (For components see list of parts

1шт.

under details of "Hydraulic Oil Flow Equalizer")

1шт.

5/16 X 2" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

27

365399R92

HOSE, supply to left drum (420 picker only)

1шт.

27

353110R91

HOSE

supply to left drum (414 picker only)

1шт.

28

221-214

PIPE,Nipple, 3/4" NPT x 1 3/4"

NIPPLE, 3/4 x 1-3/4" pipe

1шт.

29

125988

TEE,3/4" NPT, Fem

3/4" pipe

1шт.
